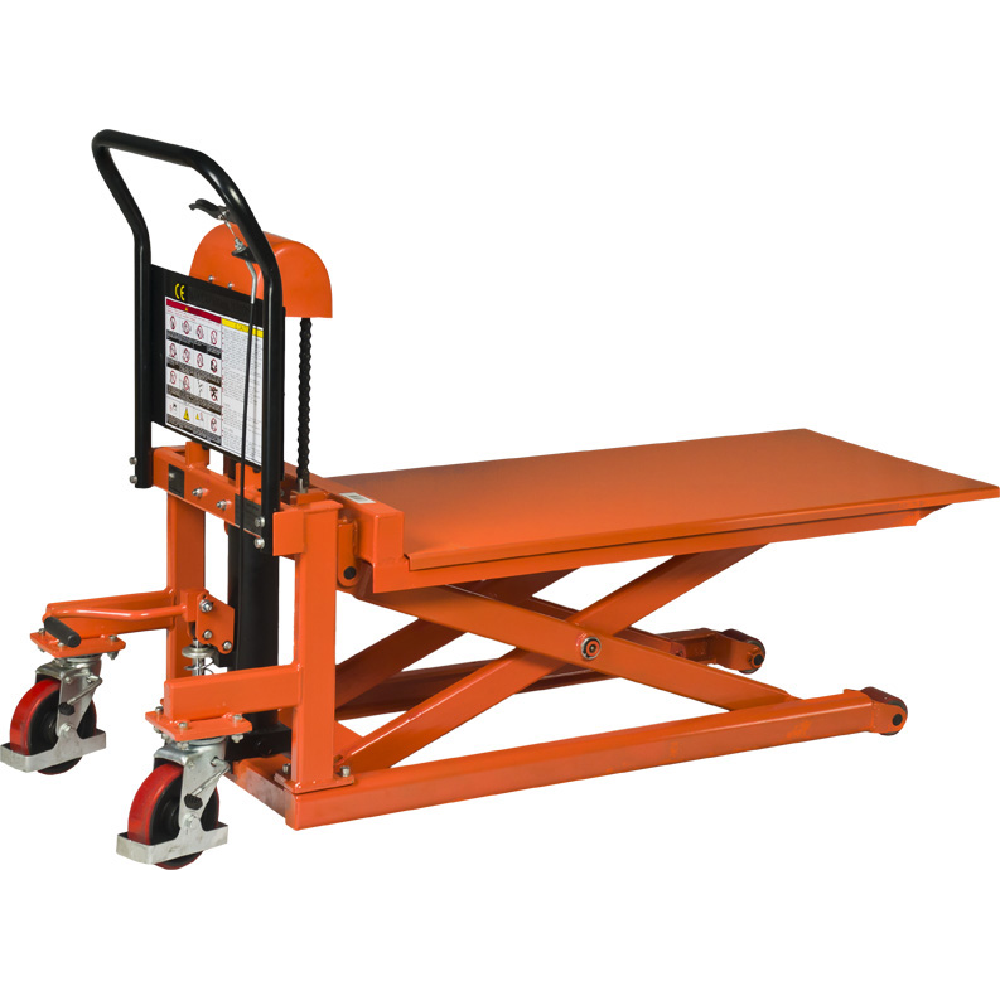

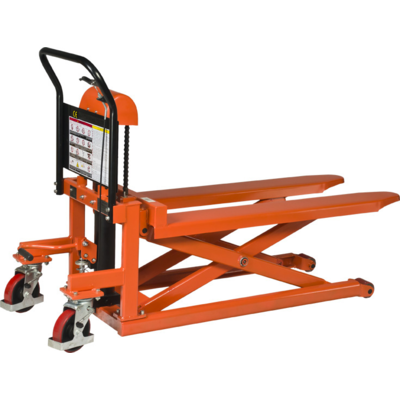

With the supplied plate table, these pallet trucks can be converted to lifting tables with one movement of the hand.

Properties

  • Combination of pallet truck and lift table.
  • Ideal for your loading and unloading operations.
  • Continious-welded heavy steel frame and forks handle haevy loads with ease.
  • Easy-to-use control lever, plus two parking brakes on steering wheels.

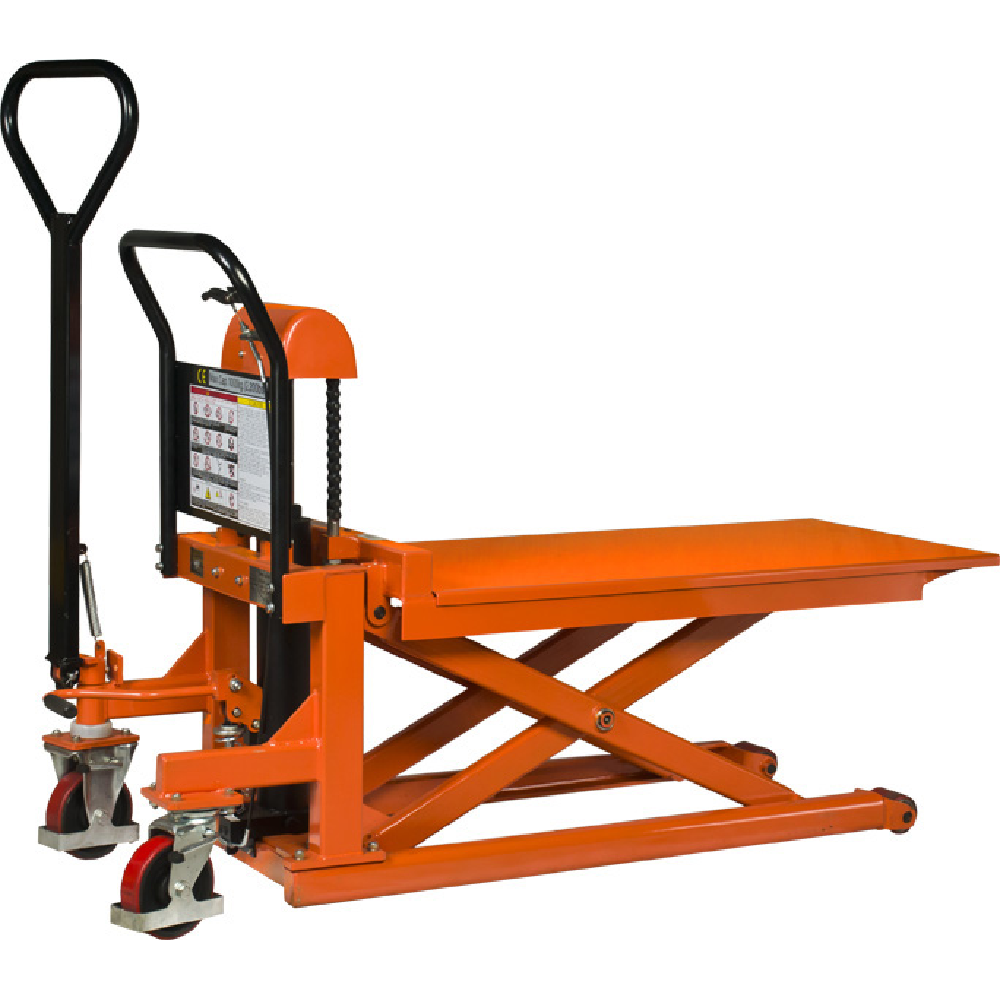

  • A steering handle on 1000 kg models for easier and comfortable turning.

Technical specifications

  • lifting height max. 835 mm.
  • Dimensions steering wheel 150 x 40 mm Polyurethane.
  • Dimensions fork roller 72 x 68 mm Polyurethane.
  • Marking: According to standard, CE-marked
  • Standard: EN 1757-4, EN 1570
    Select a row from the table below, then click the add to quote button
    Part Code Code Model Dimension
    mm
    Lifting height max
    mm
    Width of forks
    mm
    Minimum height of fork
    mm
    Version of fork roller Weight
    kg
    3469001 8717365016387 HC-50 1115 x 530 835 160 85 Single 122
    3469003 8717365016394 HC-100 1115 x 530 835 160 85 Single 150
