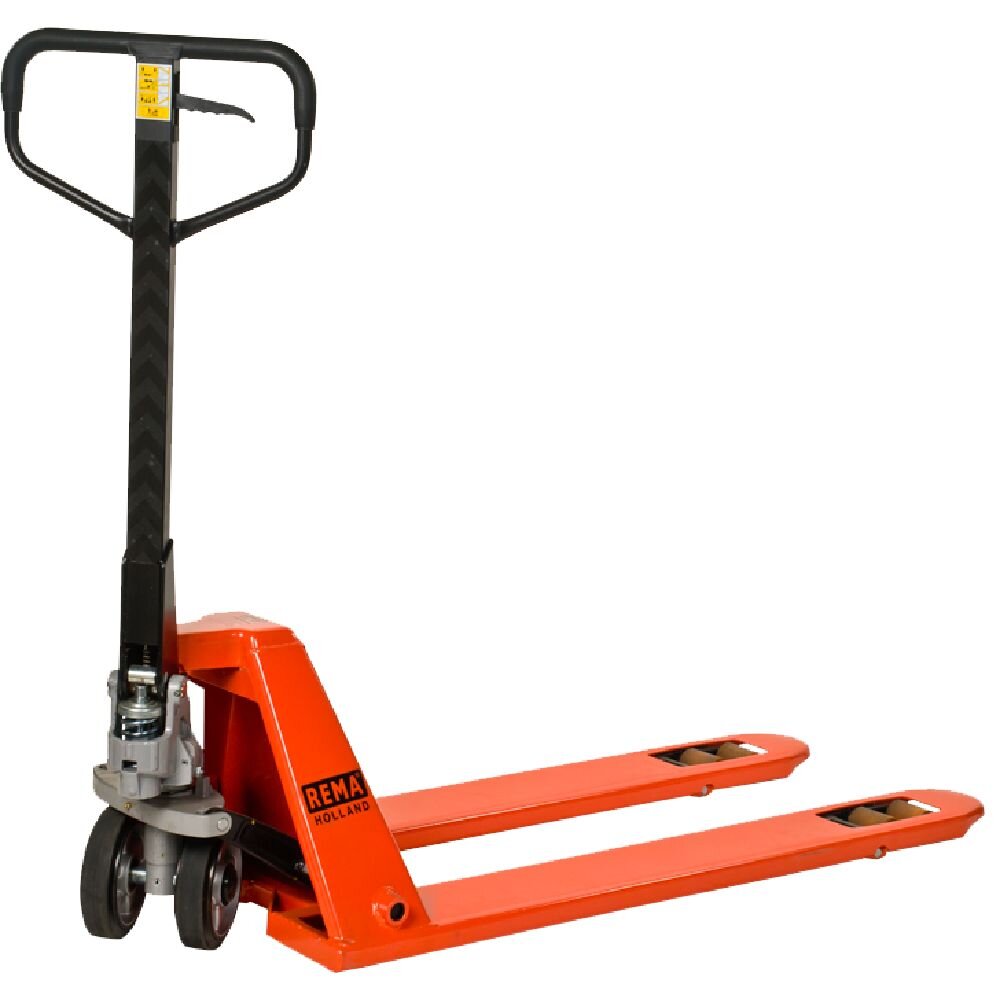

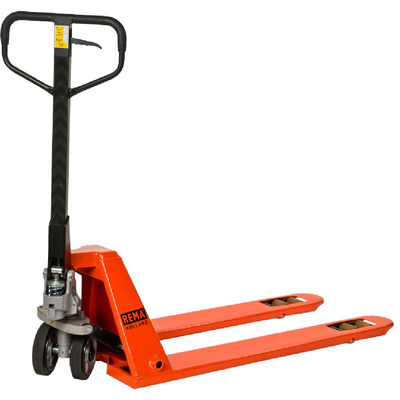

PTE low pallet truck has a very low constructional height.

Properties 3410041:

  • Low construction height 55 mm.
  • Lifting height: 55 up to 165 mm.
  • Dimension steering wheel: 180 x 50 rubber.
  • Dimension fork roller 50 x 61 mm Polyurethane.

Properties 3410042:

  • Extreme low construction height 36 mm.
  • Lifting height: 36 up to 100 mm.
  • Dimension steering wheel: 145 x 50 Polyurethane.
  • Dimension fork roller 34 x 58 mm Polyurethane.
  • Marking: According to standard, CE-marked
  • Standard: EN 3691-5
    Select a row from the table below, then click the add to quote button
    Part Code Code Model Dimension
    mm
    Width of forks
    mm
    Minimum height of fork
    mm
    Version of fork roller Weight
    kg
    3410042 8717365162572 PTE-X-200TPS 1150 x 540 160 36 Tandem 70
    3410041 8717365162565 PTE-200TPR 1150 x 540 160 55 Tandem 72

    info / downloads
