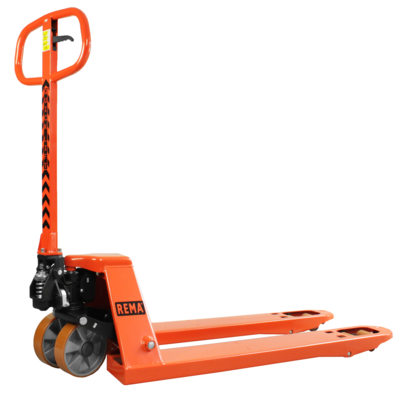

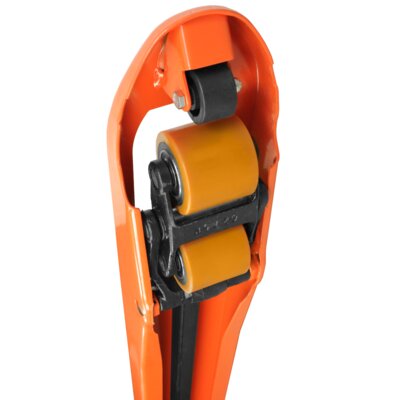

The new REMA PT pallet trucks fitted with pump (model 25) are very manoeuvrable and user-friendly. The tandem fork rollers are advantageous when using these pallet truck on a less smooth floor. Single truck roller designs are frequently used in the transport sector (rubber steer wheels and polyurethane rollers).

Properties

  • Quick-Lift pump (model 25) for a quick lifting of pallets.
  • The pump unit has an overload protection function.
  • A chromate-coated and polished piston rod provides a long life for the hydraulic cylinder.

Operation:

  • All pump functions can be operated precisely by means of the three-position control lever.
  • Variable lowering speed even under load.
  • The tow bar will automatically return to vertical position.

Fork:

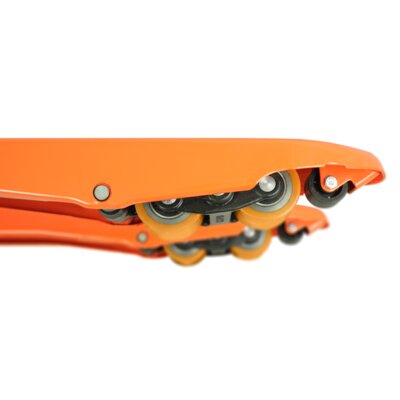

  • The robust plate steel fork profiles have flattened ends and they are fitted with in- and outrunning rollers to move pallets easier.

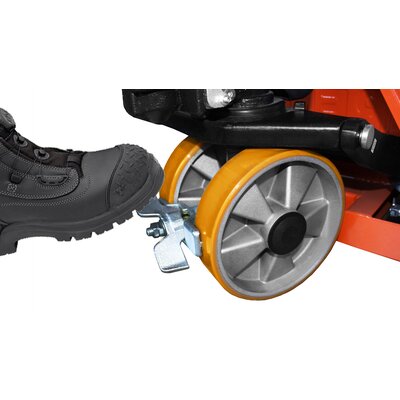

Optional footbrake:

  • Optional only for the polyurethane and rubber steering wheels.
  • The brake can be operated with a simple foot movement, for both locking and unlocking the brake.
  • An advantage is that the pallet truck can remain in the highest position, e.g. on a tailgate (inclined angle), since the steering wheels are blocked.
  • This prevents unnecessary lifting / pumping of a pallet.
  • If you already own a Rema PT pallet truck, it is possible to provide the pallet truck with the foot brake, it can be retrofitted and ordered separately.

Technical specifications:

  • Highest fork position: 200 mm.
  • Steering wheel: 200 mm.
  • Fork rolls: 82 mm.
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 3691-5, EN 1757-2
Select a row from the table below, then click the add to quote button
Part Code Code WLL Model Dimension
mm
Width of forks
mm
Minimum height of fork
mm
Version of fork roller Weight
3410001 8717365162596 2,5 PTS-25TPP 1150 x 540 160 85 Tandem 75
3410005 8717365162459 2,5 PTK-25SPR-E 1000 x 540 160 85 Single 86
3410011 8717365162466 2,5 PTS-25TNN 1150 x 540 160 85 Tandem 75
3410012 8717365162473 2,5 PTB-25TNN 1150 x 685 160 85 Tandem 80
3410013 8717365162480 2,5 PTS-25TPR 1150 x 540 160 85 Tandem 75
3410014 8717365162497 2,5 PTSKB-25TPP 1000 x 680 160 85 Tandem 75
3410015 8717365162503 2,5 PTK-25TPR 1000 x 540 160 85 Tandem 75
3410017 8717365162510 2,5 PTC-25SPR 800 x 540 160 85 Single 75
3410021 8717365162527 1,8 PTL-18TNN 1500 x 540 160 85 Tandem 80
3410023 8717365162534 1 PTX-10TNN 2000 x 540 160 85 Tandem 85
3410025 8717365162541 1,2 PTM-12TNN 1800 x 540 160 85 Tandem 80
Model Material steering wheel Material fork rol
PTS-25TPP Polyurethane Polyurethane
PTK-25SPR-E Rubber Polyurethane
PTC-25SPR Rubber Polyurethane
PTK-25TPR Rubber Polyurethane
PTS-25TPR Rubber Polyurethane
PTSKB-25TPP Polyurethane Polyurethane
PTS-25TNN Nylon Nylon
PTB-25TNN Nylon Nylon
PTL-18TNN Nylon Nylon
PTM-12TNN Nylon Nylon
PTX-10TNN Nylon Nylon
