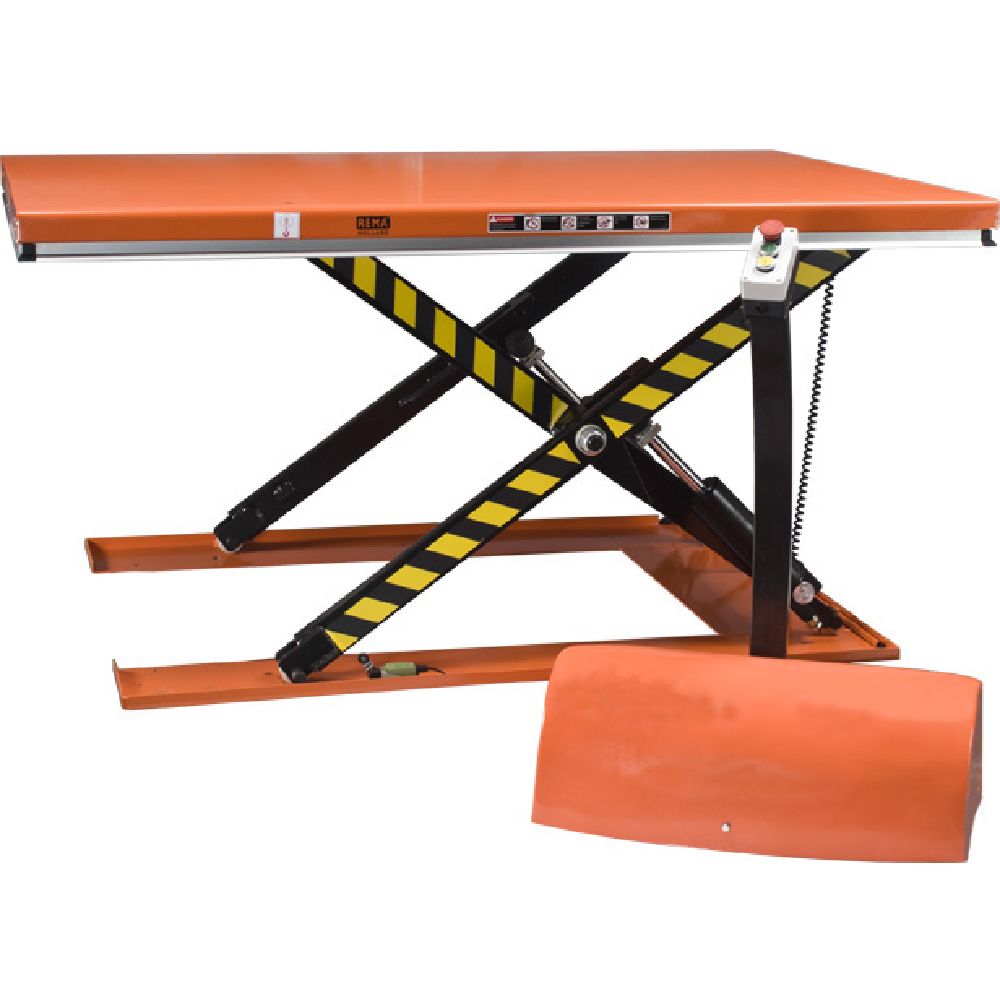

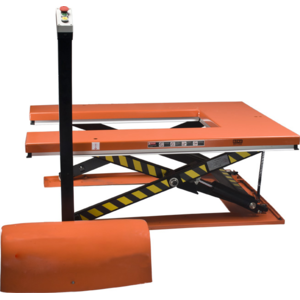

HSL low profile lifting tables


For lifting heavy loads in the simplest possible way, then the low stationary lifting table with the practical ramps offers a solution. The extremely low lifting table prevents time-consuming construction efforts for the creation of a pit. The practical ramp provides a solution for getting on and off with a pallet truck or transport trolley.


  • Stable low bottom plate.
  • Solid steel scissors.
  • This lifting table is equipped with an aluminium safety frame.
  • Support inspection for safe maintenance.
  • Overload protection.
  • Hose rupture safety valve.
  • Hard chromed cylinder and piston rod.
  • Lifetime lubricated bearings.
  • External drive unit.
  • The inclination angle of the ramp is 5 °.
  • Operating voltage 400V, control voltage 24V.
  • Protection class IP54.

Standard delivery

  • Includes 24 V remote unit with push buttons with emergency stop.
  • Removable lifting eyes for easy transport.

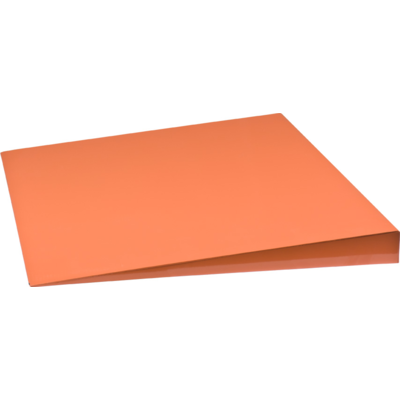

  • Ramp.
  • Marking: According to standard, CE-marked
  • Standard: EN 13157, EN 12100
