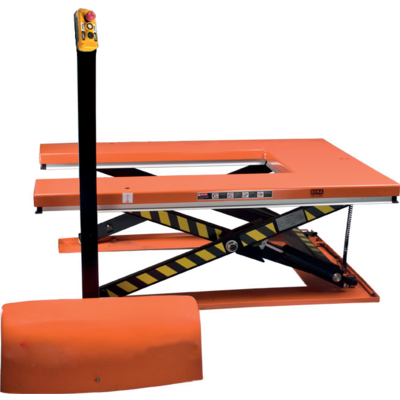

HSU low profile lifting table


For lifting heavy loads in the simplest possible way, then the low U stationary lifting table offers a solution because this table has a recess where a pallet truck can be placed. The extremely low lifting table prevents time-consuming construction efforts for the creation of a pit.


  • Stable low bottom plate.
  • Solid steel scissors.
  • This lifting table is equipped with an aluminium safety frame.
  • Support inspection for safe maintenance.
  • Overload protection.
  • Hose rupture safety valve.
  • Hard chromed cylinder and piston rod.
  • Lifetime lubricated bearings.
  • External drive unit.
  • Operating voltage 400V, control voltage 24V.
  • Protection class IP54.

Standard delivery

  • Incl 24 V remote control buttons and emergency stop.
  • Demountable lifting eyes for easy transport.
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 13157
