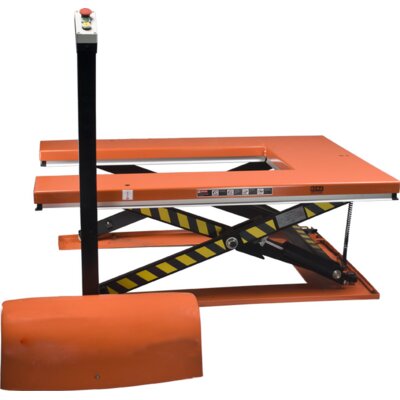

For lifting heavy loads in the simplest possible way, then the low U stationary lifting table offers a solution because this table has a recess where a pallet truck can be placed. The extremely low lifting table prevents time-consuming construction efforts for the creation of a pit.

Properties

  • Stable low bottom plate.
  • Solid steel scissors.
  • This lifting table is equipped with an aluminium safety frame.
  • Support inspection for safe maintenance.
  • Overload protection.
  • Hose rupture safety valve.
  • Hard chromed cylinder and piston rod.
  • Lifetime lubricated bearings.
  • External drive unit.
  • Operating voltage 400V, control voltage 24V.
  • Protection class IP54.

Standard delivery

  • Incl 24 V remote control buttons and emergency stop.
  • Demountable lifting eyes for easy transport.
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 13157
    Select a row from the table below, then click the add to quote button

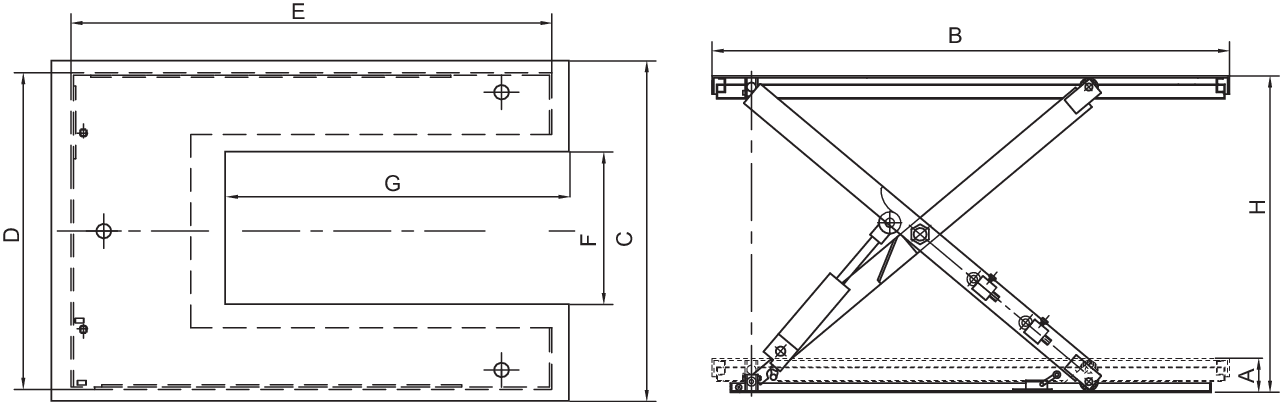

    Part Code Code WLL
    ton
    Model Lifting times Motor power
    kW
    Lifting cycle/hour A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    F
    mm
    G
    mm
    H
    mm
    Weight
    kg
    3459017 8717365016318 1 HSU-1.0 18 0,75 20 85 1 450 1 140 1 074 1 325 585 1 080 860 280
    3459019 8717365016325 1,5 HSU-1.5 18 1,5 20 105 1 600 1 180 1 114 1 427 585 1 194 860 380
