For lifting heavy loads in the simplest possible way, then the low stationary lifting table with the practical ramps offers a solution. The extremely low lifting table prevents time-consuming construction efforts for the creation of a pit. The practical ramp provides a solution for getting on and off with a pallet truck or transport trolley.

Properties

  • Stable low bottom plate.
  • Solid steel scissors.
  • This lifting table is equipped with an aluminium safety frame.
  • Support inspection for safe maintenance.
  • Overload protection.
  • Hose rupture safety valve.
  • Hard chromed cylinder and piston rod.
  • Lifetime lubricated bearings.
  • External drive unit.
  • The inclination angle of the ramp is 5 °.
  • Operating voltage 400V, control voltage 24V.
  • Protection class IP54.

Standard delivery

  • Includes 24 V remote unit with push buttons with emergency stop.
  • Removable lifting eyes for easy transport.
  • Ramp.
  • Marking: According to standard, CE-marked
  • Standard: EN 13157, EN 12100
    Select a row from the table below, then click the add to quote button

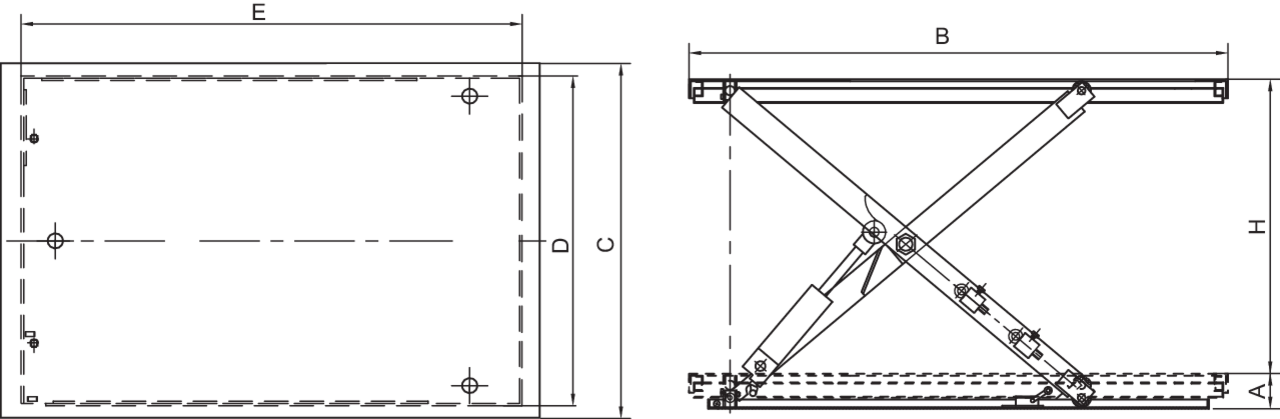

    Part Code Code WLL
    ton
    Model Lifting times Motor power
    kW
    Lifting cycle/hour A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    H
    mm
    Weight
    kg
    3459011 8717365016288 1 HSL-1.0 20 0,75 21 85 1 600 1 140 1 074 1 325 860 302
    3459015 8717365016301 2 HSL-2.0 20 2,2 15 105 1 600 1 200 1 114 1 427 870 390
