The table can be mounted both on the floor and in the floor.

Properties

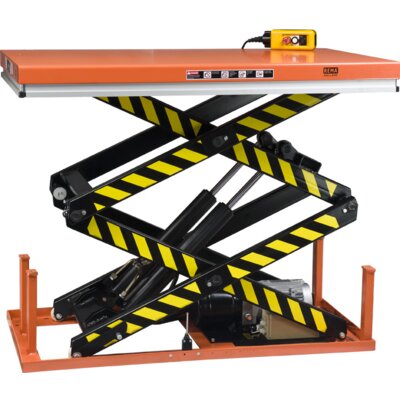

  • This lifting table is equipped with an aluminium safety frame.
  • Overload protection.
  • Solid steel scissors.
  • Special valve for controlled descent.
  • Hose rupture safety valve.
  • Lifetime lubricated bearings.
  • Operating voltage 400V, control voltage 24V.
  • Protection class IP54.

Hard chromed cylinder and piston rod.

Standard delivery

  • Includes 24 V push button switch with emergency stop.
  • Removable lifting eyes for easy transport.
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 13157
    Select a row from the table below, then click the add to quote button

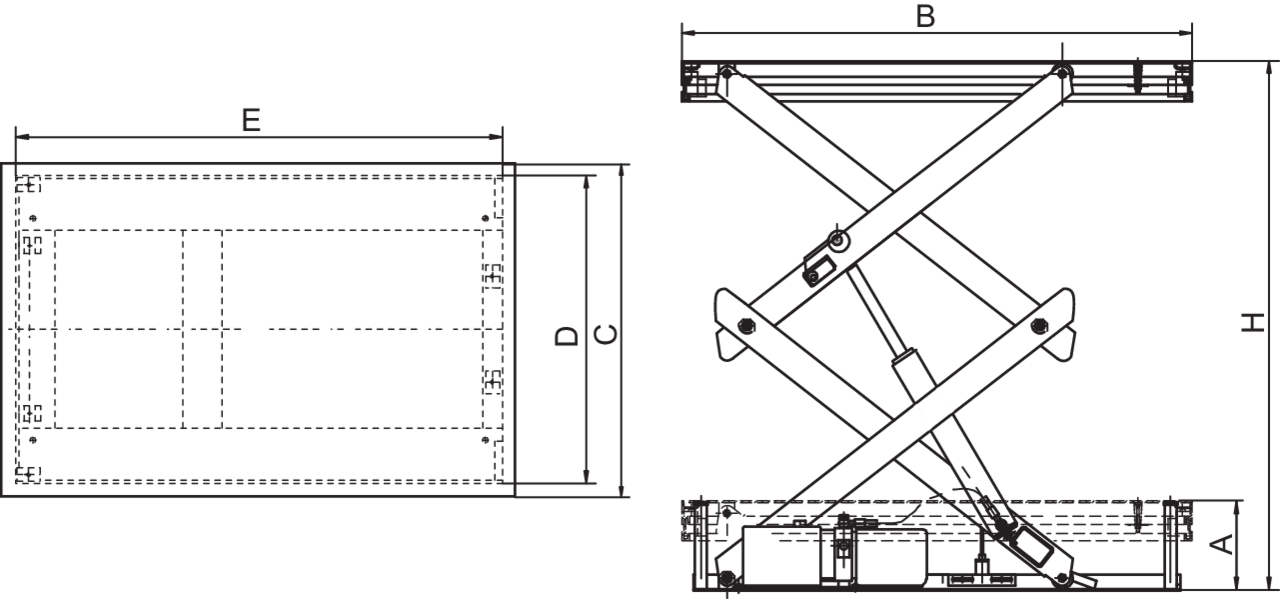

    Part Code Code WLL
    ton
    Model Lifting times Motor power
    kW
    Lifting cycle/hour A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    H
    mm
    Weight
    kg
    3459031 8717365021831 1 HSD-1.0 35 2,2 12 348 1 300 820 680 1 266 1 823 210
    3459033 8717365021848 2 HSD-2.0 35 2,2 12 403 1 300 850 785 1 255 1 823 295
    3459035 8717365021855 4 HSD-4.0 55 2,2 8 448 1 700 1 200 930 1 600 2 098 520
