REMA SR is technically advanced electric chain hoist with the most important advantages being the very high duty cycle and modular construction.


Properties

  • 400 V, 3 Ph, 50 Hz, 24 V control voltage IP 55, isolation class F.
  • Equipped with limit switches for highest and lowest hook position.
  • Very low construction height
  • Very high duty cycle due to air-cooled motor.
  • User-friendly and maintenance-friendly due to modular design.
  • Patented braking system that holds the load at any desired height.
  • Slip clutch against overload.
  • Due to the modular design, the motor, closed drive, brake and drive motor can be replaced independently of each other.
  • Simple and quick to build from single-fall to double-fall hoist.
  • Load chain Class DAT (Grade 8).

Standard delivery

  • 3 m lifting height (max distance between top and bottom hook).
  • Control height of 1,8 meter.
  • Hoist equipped with thermal overload protection
  • *Model 110/111 supplied with one hole suspension plate.
  • 1 m power cable.
  • Chain container.
  • Trolley not included.

Option

  • Higher lifting and control heights.
  • Chain containers of larger capacity.
  • Other operating voltages and frequencies are available.
  • Cordless remote control.
  • Push or electric trolley.
  • Marking: According to standard, CE-marked
  • Temperature range: Hoist equipped with thermal overload protection
  • Standard: EN 12100, EN 14492, EN 818-7
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Lifting height
m
Model Motor
kW
Max. lifting height
m
Load Chain dia x pitch
mm
Chain falls Lifting speed
m/min.

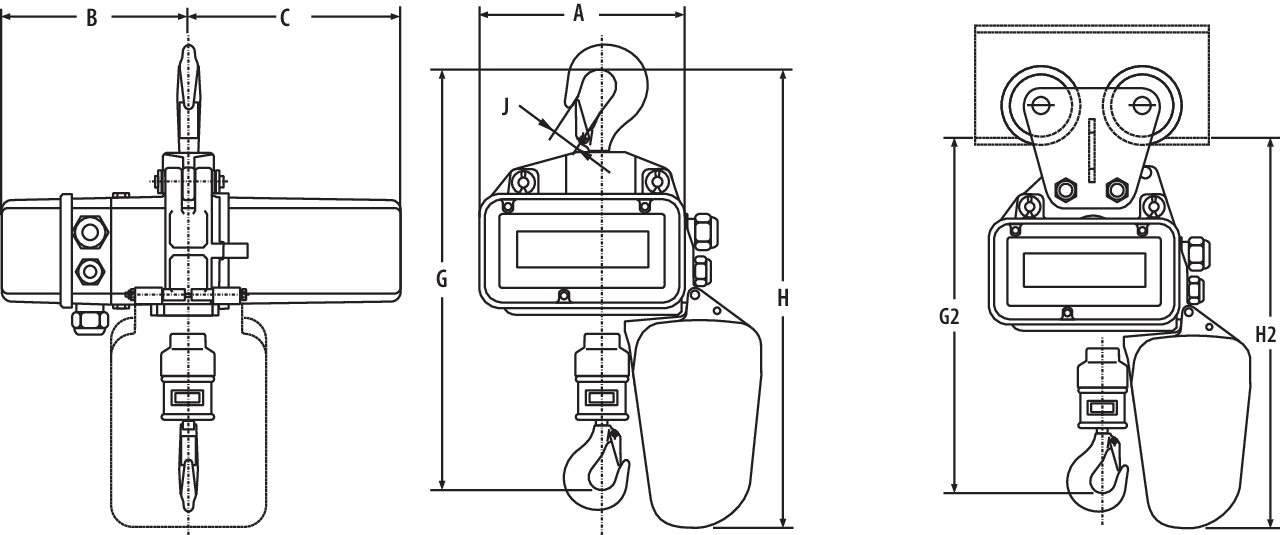

Duty rating % ED Duty group of hoist FEM 9.511 Trolley type kg Standard chain bag for lifting height
m
A
mm
B
mm
C
mm
G
mm
G2
mm
H
mm
H2
mm
J
mm
Weight
kg
0851000-3 8717365178931 0,125 3 SR030/62-125/1-8-24V-3 0,55 30 5.2 x 15 1 8 60 4m 500 12 212 192 220 437 409 547 516 20 16
0851001-3 8717365179013 0,125 3 SR031/53-125/1-8/2-24V-3 0.32/0.08 30 5.2 x 15 1 8/2 60/40 4m 500 12 212 192 220 437 409 547 516 20 16
0851000-4 8717365178948 0,125 4 SR030/62-125/1-8-24V-4 0,55 30 5.2 x 15 1 8 60 4m 500 12 212 192 220 437 409 547 516 20 17
0851001-4 8717365179020 0,125 4 SR031/53-125/1-8/2-24V-4 0.32/0.08 30 5.2 x 15 1 8/2 60/40 4m 500 12 212 192 220 437 409 547 516 20 17
0851000-5 8717365178955 0,125 5 SR030/62-125/1-8-24V-5 0,55 30 5.2 x 15 1 8 60 4m 500 12 212 192 220 437 409 547 516 20 18
0851001-5 8717365179037 0,125 5 SR031/53-125/1-8/2-24V-5 0.32/0.08 30 5.2 x 15 1 8/2 60/40 4m 500 12 212 192 220 437 409 547 516 20 18
0851001-6 8717365179044 0,125 6 SR031/53-125/1-8/2-24V-6 0.32/0.08 30 5.2 x 15 1 8/2 60/40 4m 500 12 212 192 220 437 409 547 516 20 19
0851000-6 8717365178962 0,125 6 SR030/62-125/1-8-24V-6 0,55 30 5.2 x 15 1 8 60 4m 500 12 212 192 220 437 409 547 516 20 19
0851000-7 8717365178979 0,125 7 SR030/62-125/1-8-24V-7 0,55 30 5.2 x 15 1 8 60 4m 500 12 212 192 220 437 409 547 516 20 20
0851001-7 8717365179051 0,125 7 SR031/53-125/1-8/2-24V-7 0.32/0.08 30 5.2 x 15 1 8/2 60/40 4m 500 12 212 192 220 437 409 547 516 20 20
0851001-8 8717365179068 0,125 8 SR031/53-125/1-8/2-24V-8 0.32/0.08 30 5.2 x 15 1 8/2 60/40 4m 500 12 212 192 220 437 409 547 516 20 21
0851000-8 8717365178986 0,125 8 SR030/62-125/1-8-24V-8 0,55 30 5.2 x 15 1 8 60 4m 500 12 212 192 220 437 409 547 516 20 21
0851000-9 8717365178993 0,125 9 SR030/62-125/1-8-24V-9 0,55 30 5.2 x 15 1 8 60 4m 500 12 212 192 220 437 409 547 516 20 22
0851001-9 8717365179075 0,125 9 SR031/53-125/1-8/2-24V-9 0.32/0.08 30 5.2 x 15 1 8/2 60/40 4m 500 12 212 192 220 437 409 547 516 20 22
0851000-10 8717365179006 0,125 10 SR030/62-125/1-8-24V-10 0,55 30 5.2 x 15 1 8 60 4m 500 12 212 192 220 437 409 547 516 20 23
0851001-10 8717365179082 0,125 10 SR031/53-125/1-8/2-24V-10 0.32/0.08 30 5.2 x 15 1 8/2 60/40 4m 500 12 212 192 220 437 409 547 516 20 23
0851006-3 8717365179174 0,25 3 SR030/64-250/1-8-24V-3 0,55 30 5.2 x 15 1 8 50 3m 500 12 212 192 220 437 409 547 516 20 17
0851003-3 8717365179099 0,25 3 SR031/51-250/1-8/2-24V-3 0.32/0.08 30 5.2 x 15 1 8/2 50/25 3m 500 12 212 192 220 437 409 547 516 20 17
0851003-4 8717365179105 0,25 4 SR031/51-250/1-8/2-24V-4 0.32/0.08 30 5.2 x 15 1 8/2 50/25 3m 500 12 212 192 220 437 409 547 516 20 18
0851006-4 8717365179181 0,25 4 SR030/64-250/1-8-24V-4 0,55 30 5.2 x 15 1 8 50 3m 500 12 212 192 220 437 409 547 516 20 18
0851003-5 8717365179112 0,25 5 SR031/51-250/1-8/2-24V-5 0.32/0.08 30 5.2 x 15 1 8/2 50/25 3m 500 12 212 192 220 437 409 547 516 20 19
0851006-5 8717365179198 0,25 5 SR030/64-250/1-8-24V-5 0,55 30 5.2 x 15 1 8 50 3m 500 12 212 192 220 437 409 547 516 20 19
0851003-6 8717365179129 0,25 6 SR031/51-250/1-8/2-24V-6 0.32/0.08 30 5.2 x 15 1 8/2 50/25 3m 500 12 212 192 220 437 409 547 516 20 20
0851006-6 8717365179204 0,25 6 SR030/64-250/1-8-24V-6 0,55 30 5.2 x 15 1 8 50 3m 500 12 212 192 220 437 409 547 516 20 20
0851006-7 8717365179211 0,25 7 SR030/64-250/1-8-24V-7 0,55 30 5.2 x 15 1 8 50 3m 500 12 212 192 220 437 409 547 516 20 21
0851003-7 8717365179136 0,25 7 SR031/51-250/1-8/2-24V-7 0.32/0.08 30 5.2 x 15 1 8/2 50/25 3m 500 12 212 192 220 437 409 547 516 20 21
0851003-8 8717365179143 0,25 8 SR031/51-250/1-8/2-24V-8 0.32/0.08 30 5.2 x 15 1 8/2 50/25 3m 500 12 212 192 220 437 409 547 516 20 22
0851006-8 8717365179228 0,25 8 SR030/64-250/1-8-24V-8 0,55 30 5.2 x 15 1 8 50 3m 500 12 212 192 220 437 409 547 516 20 22
0851003-9 8717365179150 0,25 9 SR031/51-250/1-8/2-24V-9 0.32/0.08 30 5.2 x 15 1 8/2 50/25 3m 500 12 212 192 220 437 409 547 516 20 23
0851006-9 8717365179235 0,25 9 SR030/64-250/1-8-24V-9 0,55 30 5.2 x 15 1 8 50 3m 500 12 212 192 220 437 409 547 516 20 23
0851006-10 8717365179242 0,25 10 SR030/64-250/1-8-24V-10 0,55 30 5.2 x 15 1 8 50 3m 500 12 212 192 220 437 409 547 516 20 24
0851003-10 8717365179167 0,25 10 SR031/51-250/1-8/2-24V-10 0.32/0.08 30 5.2 x 15 1 8/2 50/25 3m 500 12 212 192 220 437 409 547 516 20 24
0861013-3 8717365101595 0,5 3 SR030/52-500/1-8-24V-3 0,7 25 5.2 x 15 1 8 40 1Bm 2 000 8 212 192 220 437 409 547 516 20 18
0851009-3 8717365179259 0,5 3 SR031/51-500/2-4/1-24V-3 0.32/0.08 15 5.2 x 15 2 4/1 50/25 3m 500 4 212 192 220 485 454 547 516 22 18
0861013-4 8717365101601 0,5 4 SR030/52-500/1-8-24V-4 0,7 25 5.2 x 15 1 8 40 1Bm 2 000 8 212 192 220 437 409 547 516 20 19
0851009-4 8717365179266 0,5 4 SR031/51-500/2-4/1-24V-4 0.32/0.08 15 5.2 x 15 2 4/1 50/25 3m 500 4 212 192 220 485 454 547 516 22 19,5
0861013-5 8717365101618 0,5 5 SR030/52-500/1-8-24V-5 0,7 25 5.2 x 15 1 8 40 1Bm 2 000 8 212 192 220 437 409 547 516 20 20
0851009-5 8717365179273 0,5 5 SR031/51-500/2-4/1-24V-5 0.32/0.08 15 5.2 x 15 2 4/1 50/25 3m 500 4 212 192 220 485 454 547 516 22 21
0861013-6 8717365101625 0,5 6 SR030/52-500/1-8-24V-6 0,7 25 5.2 x 15 1 8 40 1Bm 2 000 8 212 192 220 437 409 547 516 20 21
0861013-7 8717365101632 0,5 7 SR030/52-500/1-8-24V-7 0,7 25 5.2 x 15 1 8 40 1Bm 2 000 8 212 192 220 437 409 547 516 20 22
0851009-6 8717365179280 0,5 6 SR031/51-500/2-4/1-24V-6 0.32/0.08 15 5.2 x 15 2 4/1 50/25 3m 500 4 212 192 220 485 454 547 516 22 22,5
0861013-8 8717365101649 0,5 8 SR030/52-500/1-8-24V-8 0,7 25 5.2 x 15 1 8 40 1Bm 2 000 8 212 192 220 437 409 547 516 20 23
0861013-9 8717365101656 0,5 9 SR030/52-500/1-8-24V-9 0,7 25 5.2 x 15 1 8 40 1Bm 2 000 8 212 192 220 437 409 547 516 20 24
0851009-7 8717365179297 0,5 7 SR031/51-500/2-4/1-24V-7 0.32/0.08 15 5.2 x 15 2 4/1 50/25 3m 500 4 212 192 220 485 454 547 516 22 24
0861013-10 8717365101663 0,5 10 SR030/52-500/1-8-24V-10 0,7 25 5.2 x 15 1 8 40 1Bm 2 000 8 212 192 220 437 409 547 516 20 25
0851009-8 8717365179303 0,5 8 SR031/51-500/2-4/1-24V-8 0.32/0.08 15 5.2 x 15 2 4/1 50/25 3m 500 4 212 192 220 485 454 547 516 22 25,5
0851009-9 8717365179310 0,5 9 SR031/51-500/2-4/1-24V-9 0.32/0.08 15 5.2 x 15 2 4/1 50/25 3m 500 4 212 192 220 485 454 547 516 22 27
0851009-10 8717365179327 0,5 10 SR031/51-500/2-4/1-24V-10 0.32/0.08 15 5.2 x 15 2 4/1 50/25 3m 500 4 212 192 220 485 454 547 516 22 28,5
0861016-3 8717365182761 0,5 3 SR071/54-500/1-8/2-24V-3 0.9/0.2 17 7.2 x 21 1 8/2 60/25 2m 2 000 5 266 232 274 500 460 607 567 22 45
0861016-4 8717365182778 0,5 4 SR071/54-500/1-8/2-24V-4 0.9/0.2 17 7.2 x 21 1 8/2 60/25 2m 2 000 5 266 232 274 500 460 607 567 22 46,5
0861016-5 8717365182785 0,5 5 SR071/54-500/1-8/2-24V-5 0.9/0.2 17 7.2 x 21 1 8/2 60/25 2m 2 000 5 266 232 274 500 460 607 567 22 48
0861016-6 8717365182792 0,5 6 SR071/54-500/1-8/2-24V-6 0.9/0.2 17 7.2 x 21 1 8/2 60/25 2m 2 000 5 266 232 274 500 460 607 567 22 49,5
0861016-7 8717365182808 0,5 7 SR071/54-500/1-8/2-24V-7 0.9/0.2 17 7.2 x 21 1 8/2 60/25 2m 2 000 5 266 232 274 500 460 607 567 22 51
0861016-8 8717365182815 0,5 8 SR071/54-500/1-8/2-24V-8 0.9/0.2 17 7.2 x 21 1 8/2 60/25 2m 2 000 5 266 232 274 500 460 607 567 22 52,5
0861016-9 8717365182822 0,5 9 SR071/54-500/1-8/2-24V-9 0.9/0.2 17 7.2 x 21 1 8/2 60/25 2m 2 000 5 266 232 274 500 460 607 567 22 54
0861016-10 8717365182839 0,5 10 SR071/54-500/1-8/2-24V-10 0.9/0.2 17 7.2 x 21 1 8/2 60/25 2m 2 000 5 266 232 274 500 460 607 567 22 55,5
0861015-3 8717365101830 1 3 SR030/52-1000/2-4-24V-3 0,7 12 5.2 x 15 2 4 40 1Bm 2 000 4 212 192 220 485 454 547 516 22 20
0861015-4 8717365101847 1 4 SR030/52-1000/2-4-24V-4 0,7 12 5.2 x 15 2 4 40 1Bm 2 000 4 212 192 220 485 454 547 516 22 21,5
0861015-5 8717365101854 1 5 SR030/52-1000/2-4-24V-5 0,7 12 5.2 x 15 2 4 40 1Bm 2 000 4
