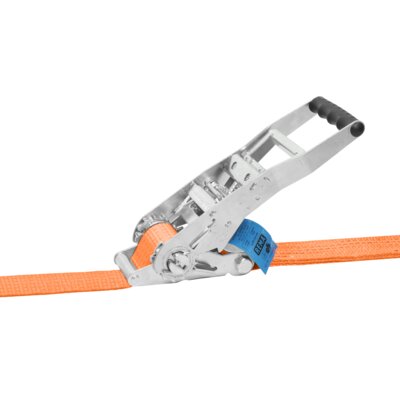

The EBC ratchet is a very safe ratchet because the load of the lashing belt can be obtained step by step and controlled when unloading loads, so that dangerous situations can be prevented (with standard ratchets the tension is released at once). The EBC ratchet is tensioned by a pulling movement, resulting in a larger force span and a higher Stf value of 450 daN.


Properties

  • Robust, corrosion-resistant ratchet.
  • Handle length 300 mm.
  • Minimal elongation in the belt reduces the chance of re-tensioning.
  • Marking: According to standard
  • Standard: EN 12195-2
  • Note: Packed in plastic including REMA manual.
    Select a row from the table below, then click the add to quote button
    Part Code Code LC
    daN
    2xLC
    daN
    Length Band width
    mm
    Design Fitting Model Standard Tension Force (STF)
    daN
    Colour Weight
    kg
    1409003 8717365115462 2 500 5 000 9 50 2-part Wire hook double 50EBC/2-419-9m 450 Orange 3,5
