• Not for lifting

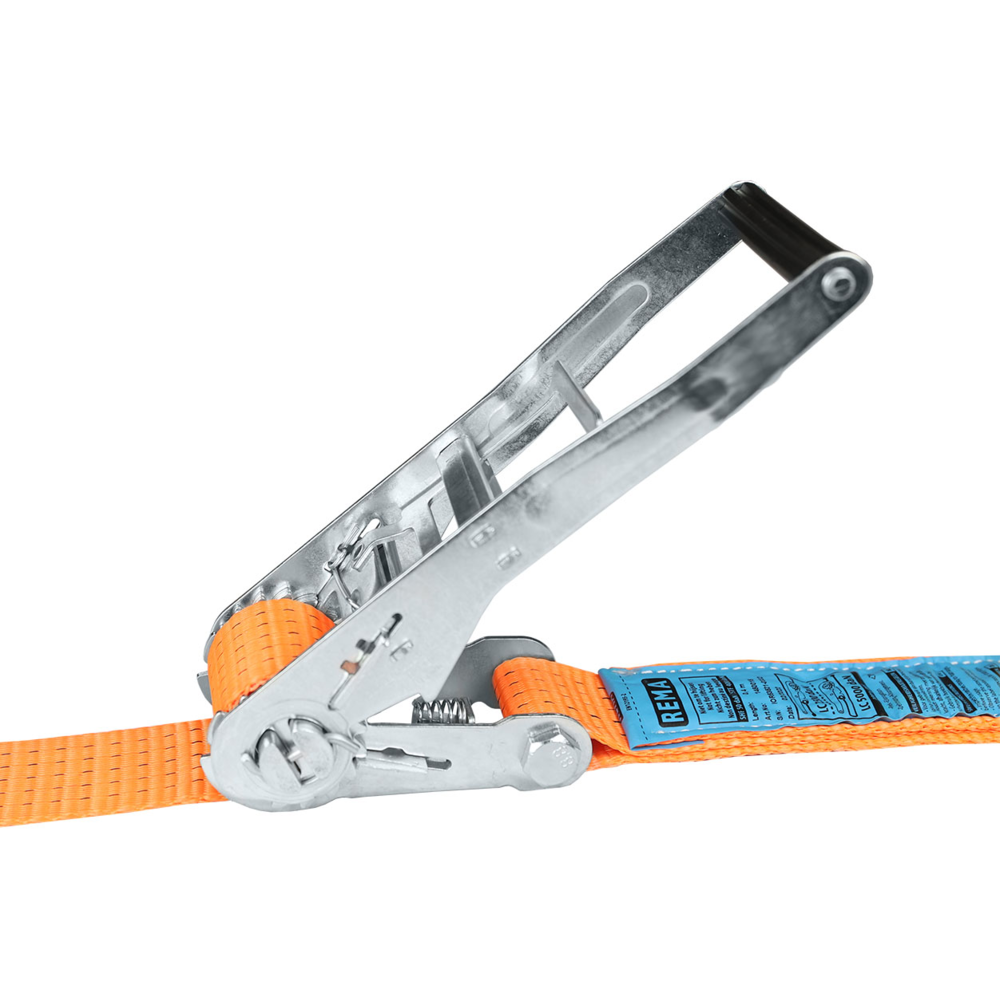

The ERGO ratchet with long handle is tensioned by a pulling movement, resulting in a larger power transmission (standard systems are equipped with a push ratchet). Due to the high prestressing force Stf of 500 daN, much less strapping can be sufficient.

Properties

  • Robust, corrosion-resistant ratchet.
  • Handle length 325 mm.
  • Minimal elongation in the belt reduces the chance of re-tensioning.
  • Marking: According to standard
  • Standard: EN 12195-2
  • Note: Packed in plastic including REMA manual.
Select a row from the table below, then click the add to quote button
Part Code Code LC
daN
2xLC
daN
Length Model Endfittings Standard Tension Force (STF)
daN
Band width
mm
Colour Weight
kg
1450001 8717365007231 2 500 5 000 9 50R/2-419-9m Grab hook 419 500 50 orange 3,22
