Properties

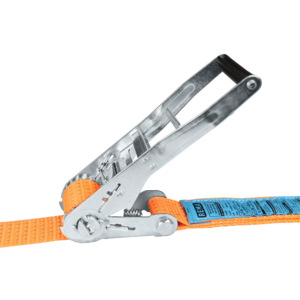

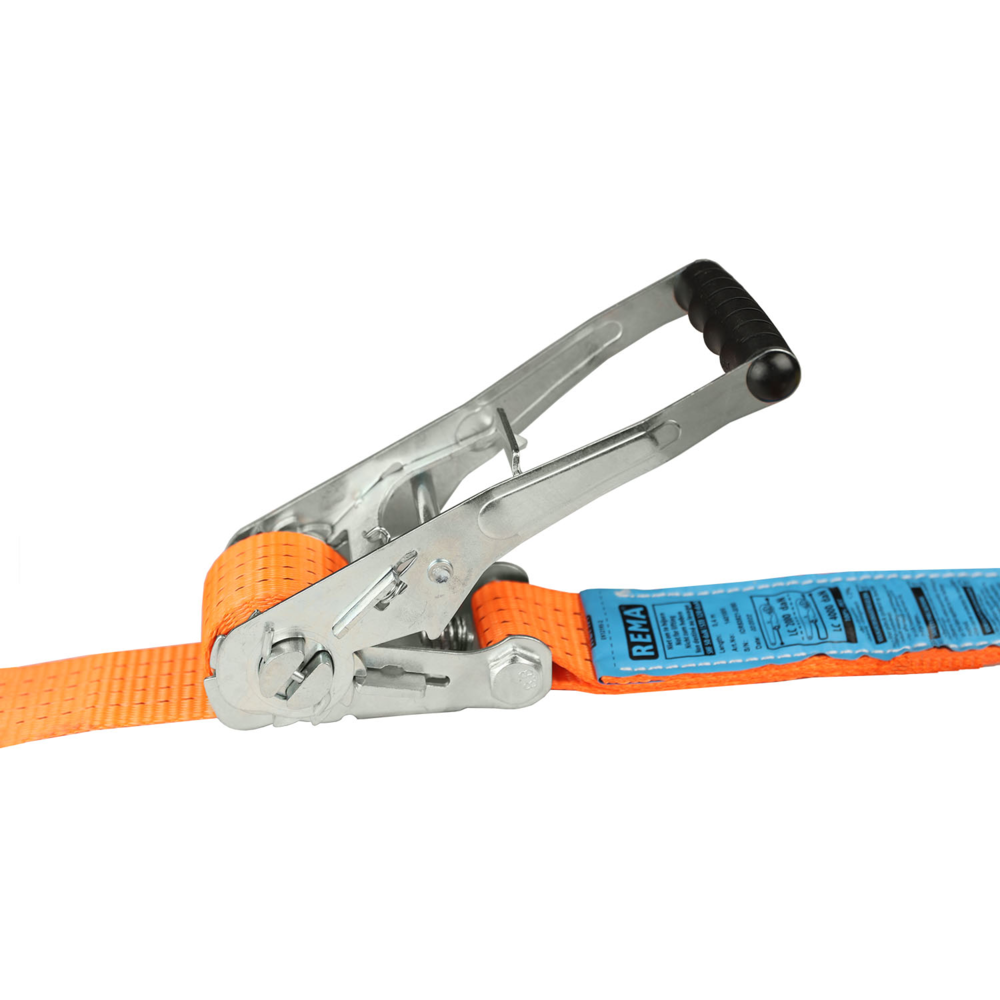

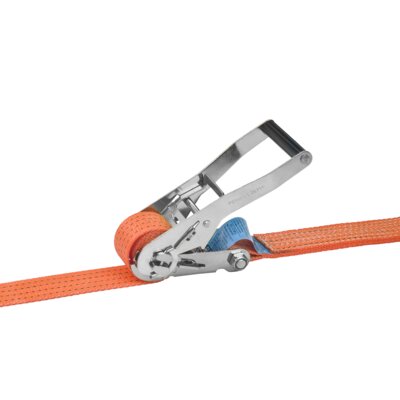

  • Robust, corrosion-resistant ratchet.
  • Handle Length 230 mm.
  • Minimal elongation in the belt reduces the chance of re-tensioning.
  • Marking: According to standard
  • Standard: EN 12195-2
  • Note: Packed in plastic including REMA manual.
    Select a row from the table below, then click the add to quote button
    Part Code Code LC
    daN
    2xLC
    daN
    Length Band width
    mm
    Design Fitting Model Standard Tension Force (STF)
    daN
    Colour Weight
    1408001 8717365007064 4 000 6 50 Endless Endless 50/1-6m 320 Orange 1,65

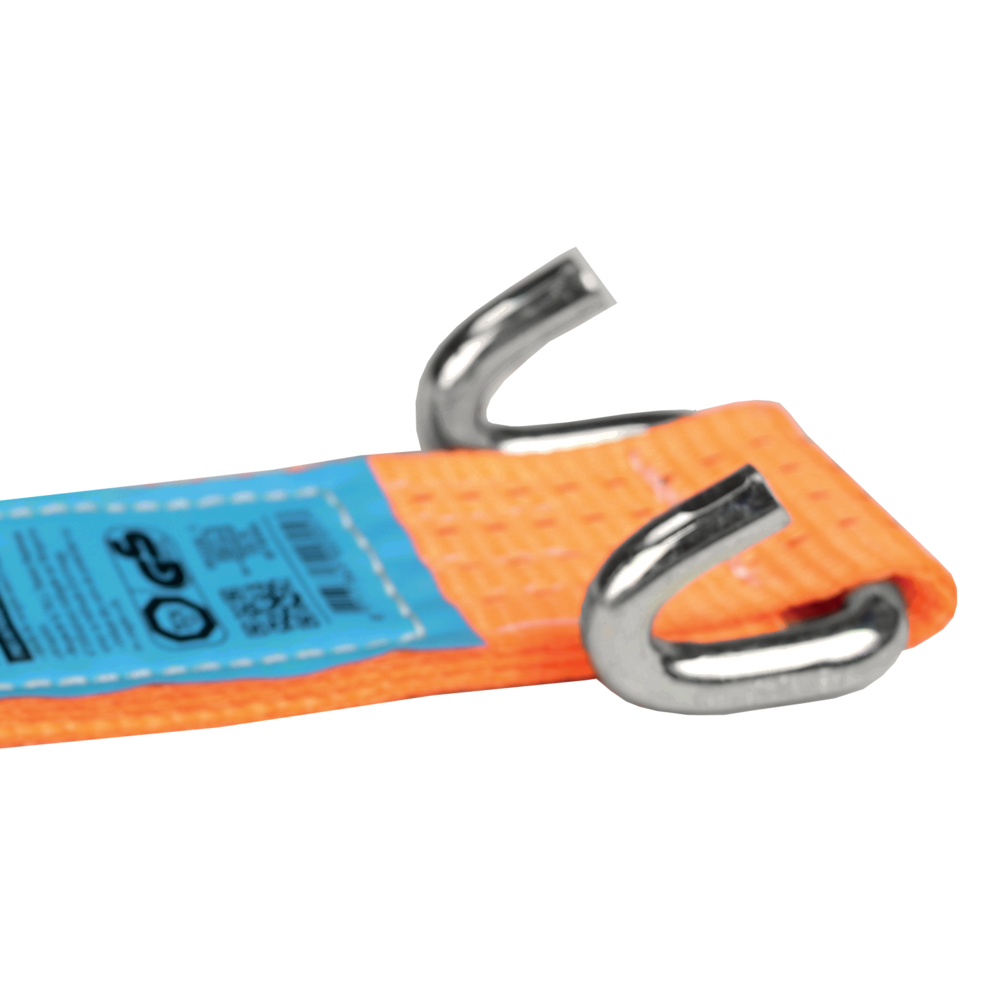

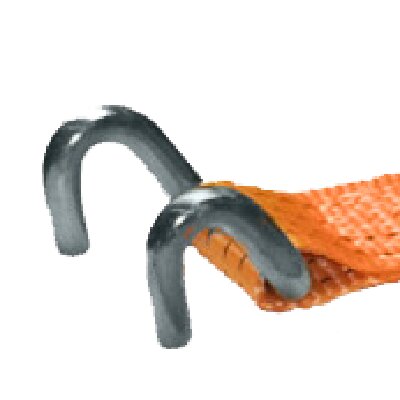

    1407005 8717365007057 2 000 4 000 9 50 2-part Wire hook U 50/2-400U-9m 320 Orange 2
    1405003 8717365007019 2 000 4 000 7 50 2-part Wire hook double 50/2-419-7m 320 Orange 2,25
    1405004 8717365007026 2 000 4 000 8 50 2-part Wire hook double 50/2-419-8m 320 Orange 2,35

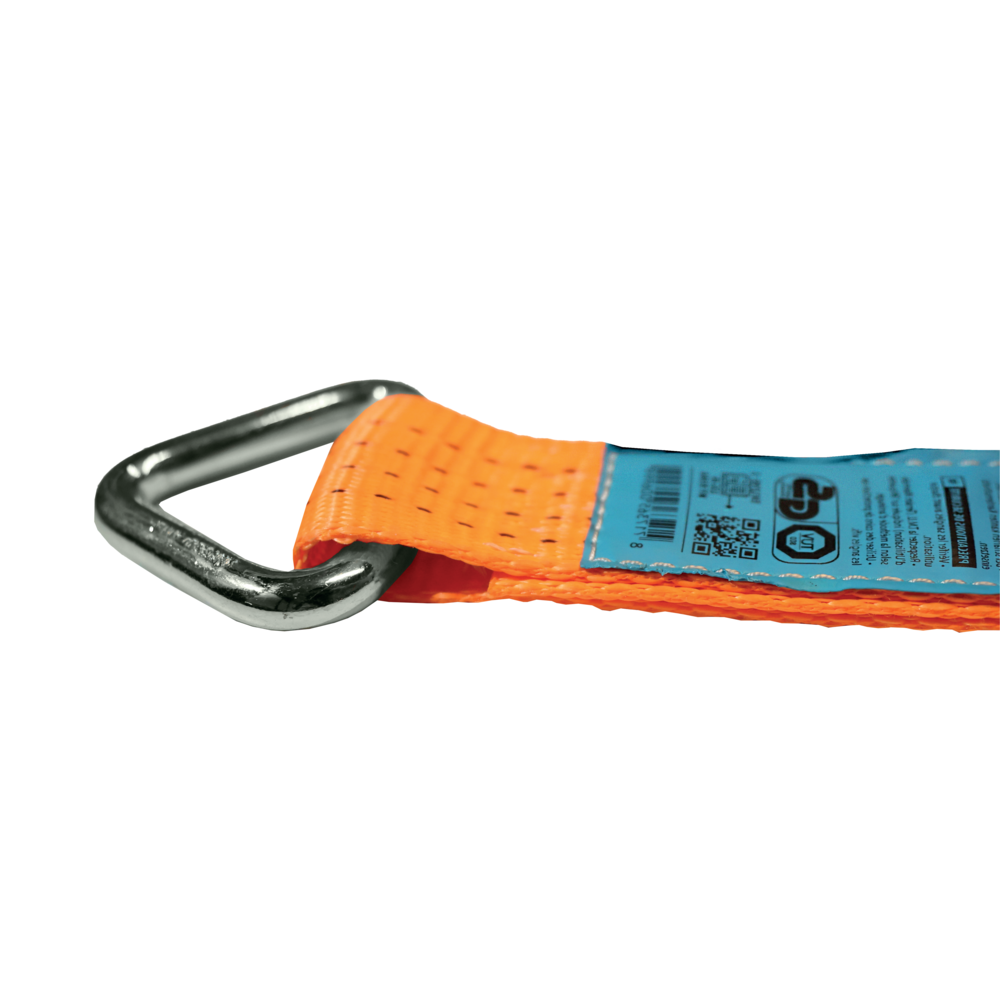

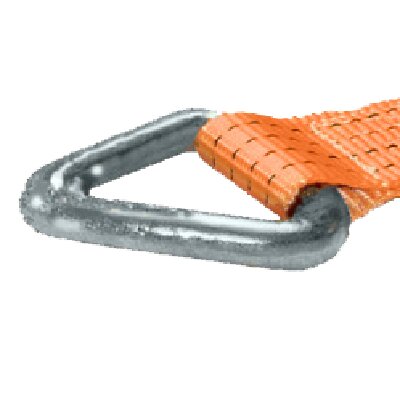

    1402005 8717365006999 2 000 4 000 9 50 2-part Triangle 50/2-420-9m 320 Orange 2,35
    1405005 8717365007033 2 000 4 000 9 50 2-part Wire hook double 50/2-419-9m 320 Orange 2,5
    1405007 8717365007040 2 000 4 000 10 50 2-part Wire hook double 50/2-419-10m 320 Orange 2,55
    1405009 8717365021756 2 000 4 000 12 50 2-part Wire hook double 50/2-419-12m 320 Orange 2,8

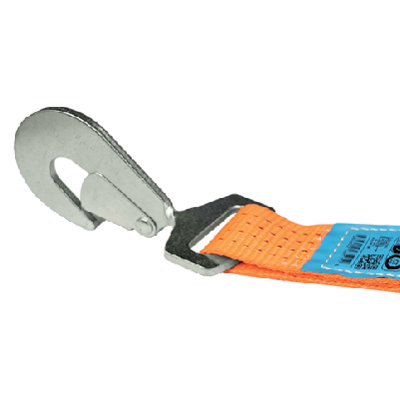

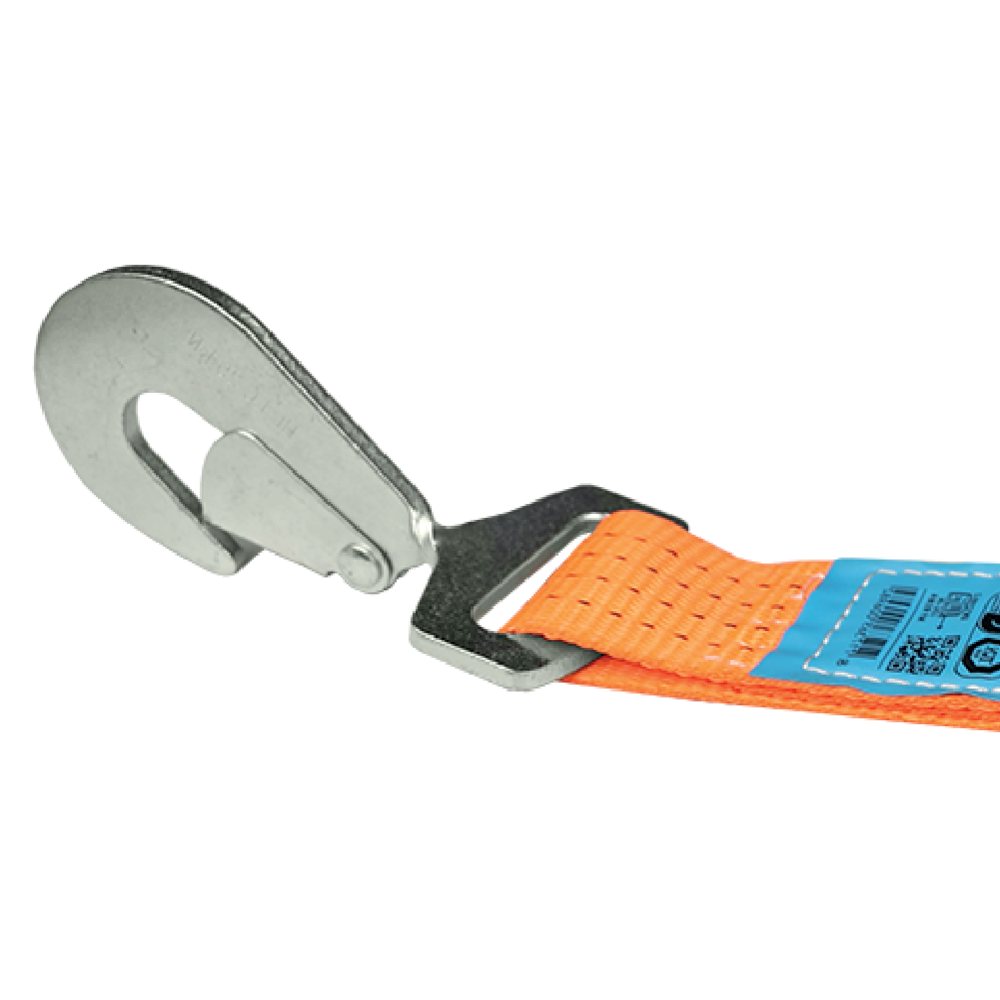

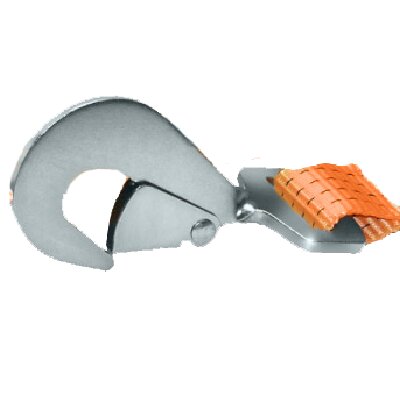

    1401005 8717365006982 2 000 4 000 9 50 2-part Snap hook twisted 50/2-411-9m 320 Orange 2,95

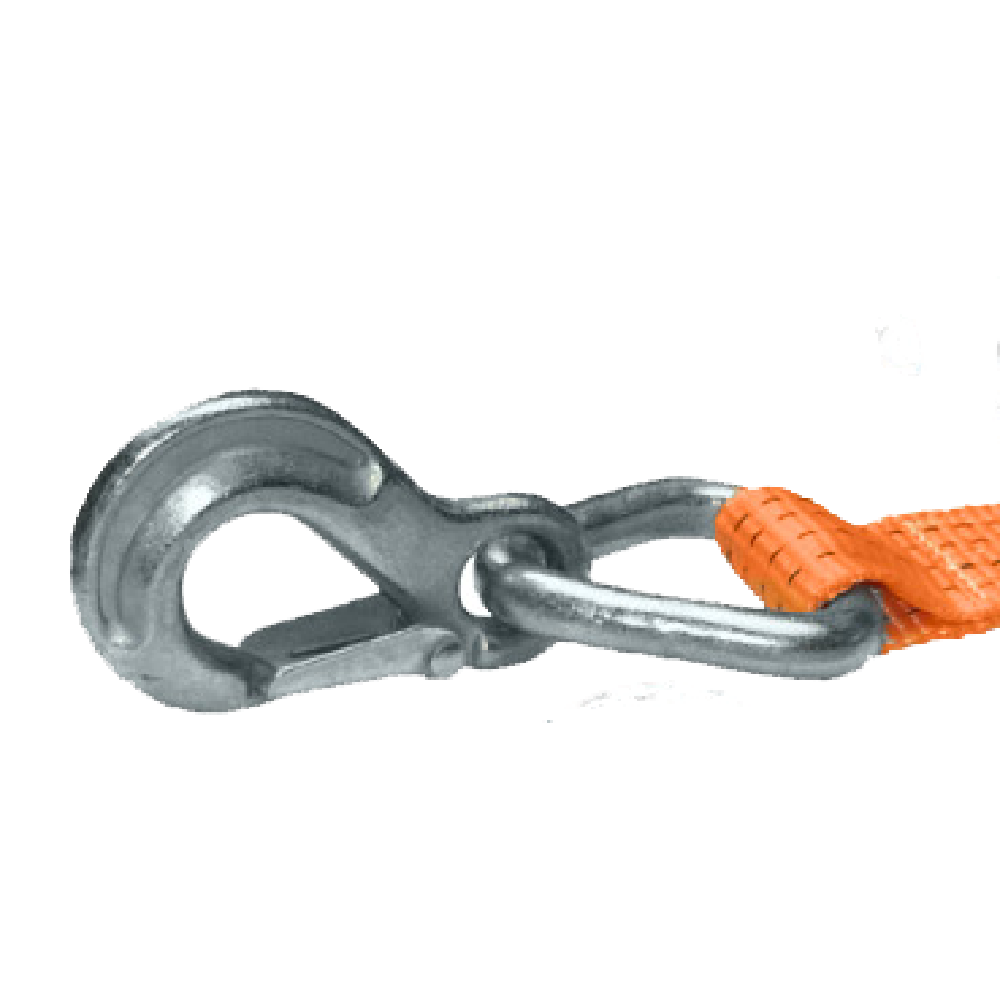

    1403005 8717365007002 2 000 4 000 9 50 2-part Triangle forged hook 50/2-409-9m 320 Orange 3,15
