• Not for lifting

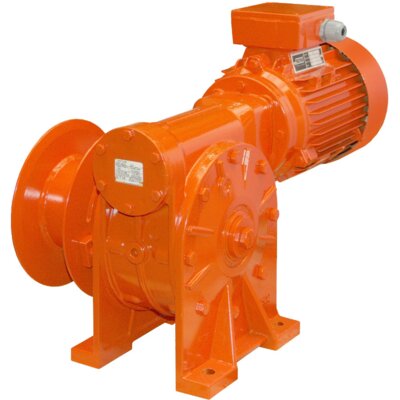

Price/quality ratio of series EWL electric self locking worm gear winches is very fair; they are available in designs complying with various classifications and norms.

Properties

  • Pulling force: 250 kg to 2800 kg.
  • Drums run on bearings at both sides (from model EWL 1000).
  • Steel base plate (from model EWL 1000).

Standard delivery

  • Does not include steel wire rope.
  • Does not include control pendant.
  • Above 1000 kg overload limiter is required.

Option

  • Steel wire rope.
  • Control pendant included switch box.
  • Overload limiter ( above 1000 kg required).
  • Maritime design on special order.
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 14492
  • Warning: Not suitable for lifting.
    Select a row from the table below, then click the add to quote button
    Part Code Code WLL Model Cable Diameter
    mm
    Motor power
    kW
    Max. reel capacity
    mm
    WLL Pulling 1st layer
    kg
    Speed 1st layer m/min A
    mm
    B
    mm
    C
    mm
    D1
    mm
    D2
    mm
    E
    mm
    F
    mm
    G
    mm
    H
    mm
    K
    mm
    L
    mm
    M
    mm
    N
    mm
    Weight
    2300001 8717365261220 0,25 EWL-250 6 0,55 20 250 8,4 405 284,6 306,6 190 101,6 6 117 60 114 120 250 139 158 21
    2300003 8717365261237 0,5 EWL-500 6 1,1 20 500 8,4 460 299 348 190 106,6 6 125 60 138 140 279 156 193 36
    2300005 8717365261244 0,75 EWL-750 6 1,1 20 750 5,8 460 299 348 190 106,6 6 125 60 138 140 279 156 193 36
    2300007 8717365261251 1 EWL-1000 8 1,5 40 1 000 6 589 540 436 250 101,6 6 215 150 500 275 264 130 325 90
    2300009 8717365261268 1,25 EWL-1250 8 2,2 40 1 250 6 589 540 436 250 101,6 6 215 150 500 275 282 158 325 93
    2300011 8717365261275 1,75 EWL-1750 10 3 53 1 750 5,8 660 640 474 280 121 8 262 200 600 320 307 190 370 136
    2300013 8717365261282 2,25 EWL-2250 12 4 65 2 250 7 706 710 524 320 146 8 300 250 670 360 307 190 410 192
    2300015 8717365261299 2,8 EWL-2800 14 5,5 75 2 800 7,8 825 850 607 370 159 8 333 300 800 380 324 216 440 302

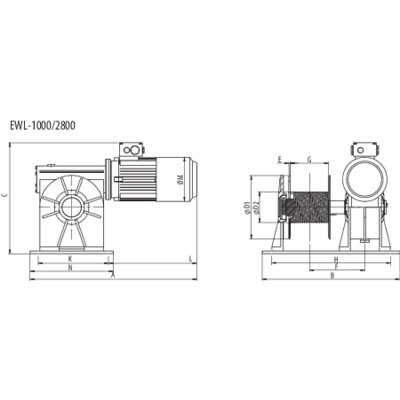

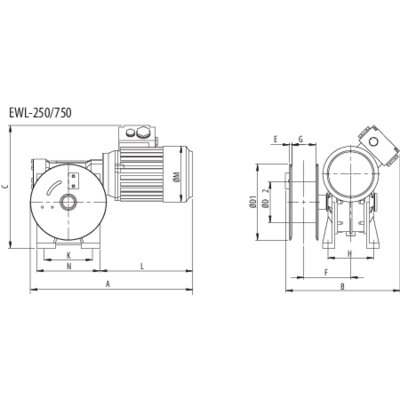

    Model A
    mm
    B
    mm
    C
    mm
    D1
    mm
    D2
    mm
    E
    mm
    F
    mm
    G
    mm
    H
    mm
    K
    mm
    L
    mm
    M
    mm
    N
    mm
    EWL-250 405 284,6 306,6 190 101,6 6 117 60 114 120 250 139 158
    EWL-500 460 299 348 190 106,6 6 125 60 138 140 279 156 193
    EWL-750 460 299 348 190 106,6 6 125 60 138 140 279 156 193
    EWL-1000 589 540 436 250 101,6 6 215 150 500 275 264 130 325
    EWL-1250 589 540 436 250 101,6 6 215 150 500 275 282 158 325
    EWL-1750 660 640 474 280 121 8 262 200 600 320 307 190 370
    EWL-2250 706 710 524 320 146 8 300 250 670 360 307 190 410
    EWL-2800 825 850 607 370 159 8 333 300 800 380 324 216 440
