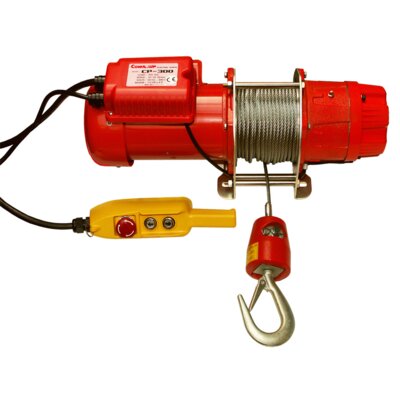

Properties:

  • Control cable + pushbutton cabinet with emergency stop IP65 included.
  • Electronic magnet brake.
  • Design with bearing.
  • Steel cable + hook included.
  • Planetary transmission.

Technical specifications:

  • CP-300 Motor IP44, 4 poles - 1.15 kW.
  • CP-500 Motor IP44, 4 poles - 1.8 kW.
  • 230 VAC, 1 Phase, 50 Hz.
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 14492
    Select a row from the table below, then click the add to quote button
    Part Code Code WLL
    ton
    Size Model Cable Diameter
    mm
    Lifting speed first layer
    m/min.
    Drum
    mm
    Lifting capacity
    t
    Pulling capacity
    t
    Length cable
    m

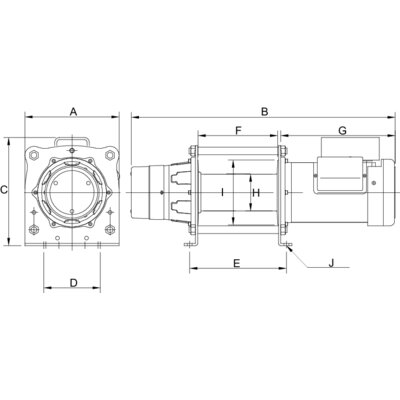

    A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    F
    mm
    G
    mm
    H
    mm
    I
    mm
    J
    mm
    Weight
    2382007 8717365260964 0,3 565 x 210 x 241 CP-300 6 10 94 x 110 0,3 0,6 30 210 565 241 142 142 110 280 94 154 6 X 10,5 38
    2382009 8717365114151 0,5 694 x 260 x 299 CP-500 7 10 102 x 220 0,5 1 60 260 728 299 156 267 220 316 102 180 6 X 13,5 55
