• Marking: According to standard, CE-marked
  • Standard: EN 1677-1, EN 818, DIN 17115
  • Safety factor: 4
  • Grade: 10
Select a row from the table below, then click the add to quote button

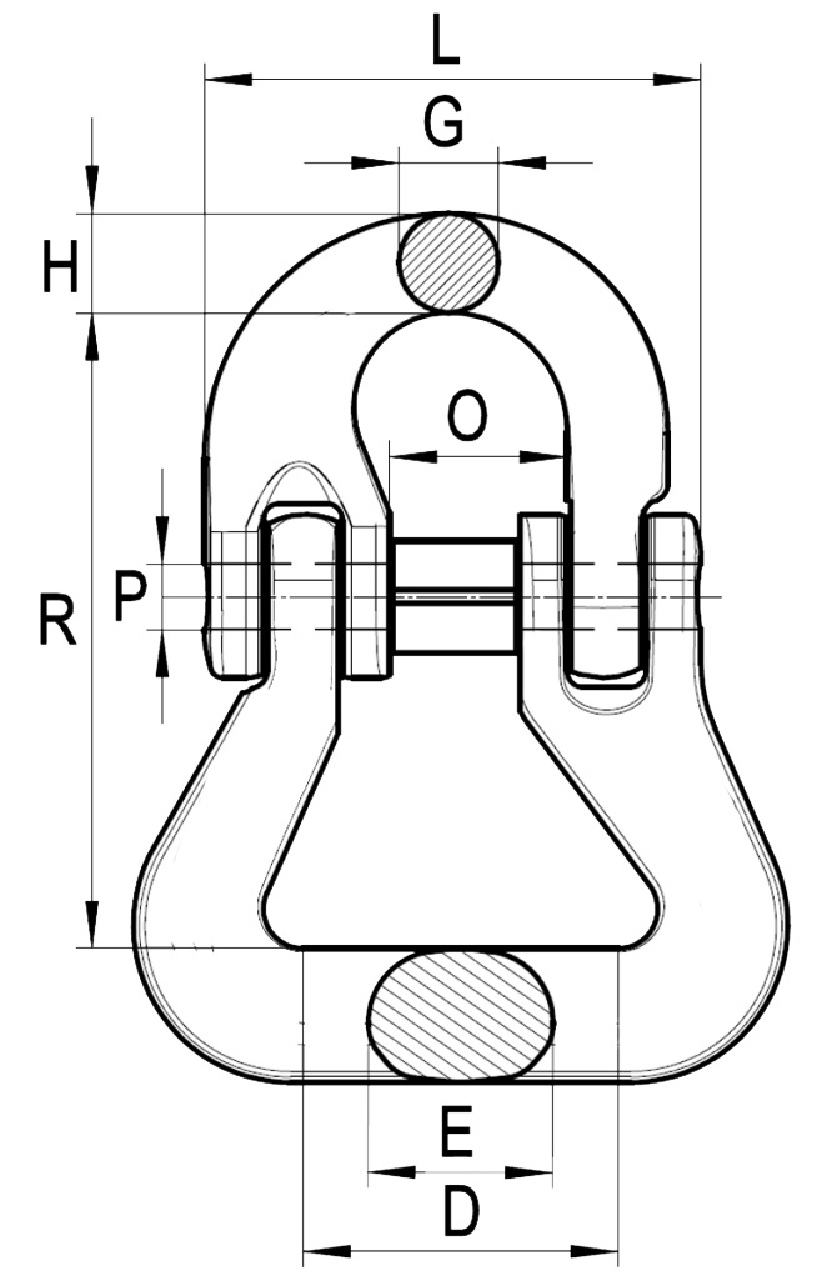

Part Code Code WLL Size Model D
mm
E
mm
G
mm
H
mm
O
mm
R
mm
P x L (mm) Weight
2683008 8717365177774 2,5 8 WCL-8 30 18 10 11,5 18 66 6,3 x 53 0,3
2683010 8717365177781 4 10 WCL-10 40 22 12,6 12,6 22,5 81 8 x 63 0,6
2683013 8717365177798 6,7 13 WCL-13 50 27,5 16,7 19 27,5 104 10 x 79 1,1
