Chain sling assy 4-leg REMA-10-RMA-RDG-RCS

The Rema® 10 assortment offers versatile chain sling solutions, allowing you to easily create one, two, three, or four-legged chain sling assemblies. Each component is designed for durability and can be delivered and replaced individually when needed.

4 leg REMA-10 chain | masterlink RMA | clevi

Show more

Show table
Product number:
REMA

The Rema® 10 assortment offers versatile chain sling solutions, allowing you to easily create one, two, three, or four-legged chain sling assemblies. Each component is designed for durability and can be delivered and replaced individually when needed.

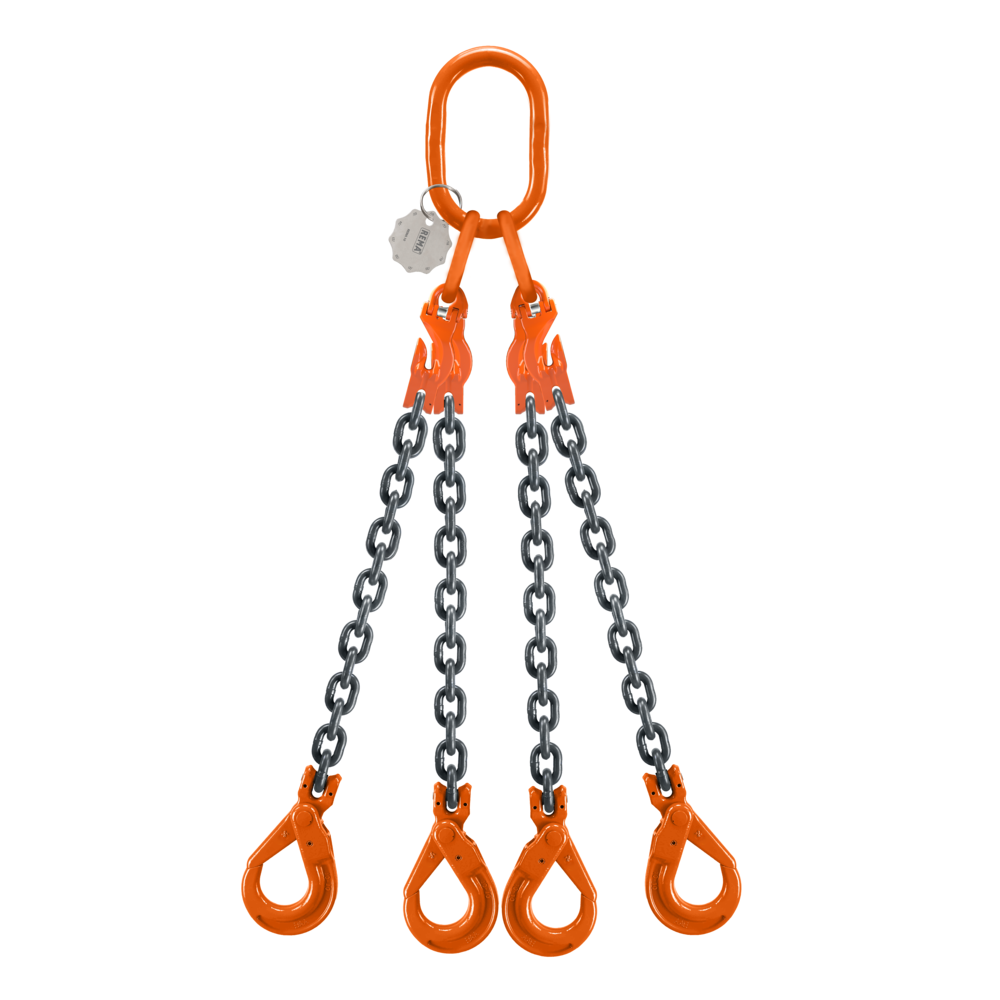

4 leg REMA-10 chain | masterlink RMA | clevis shortening hook RDG | self locking clevis hook RCS


Each component of this chain sling assembly carries the distinctive H-84 mark certified by the German DGUV, ensuring a testament to its exceptional quality.

  • Marking: According to standard, CE-marked
  • Standard: EN 818-7, EN 1677-1, DIN 17115, DIN 5692
  • Safety factor: 4
  • Grade: 10

Chain Sling Grade 10

EN 818-4, but with higher WLL

Safety Factor 4:1

Chain Ø 1-part 2-part 3-4-part Endless
rakt snarat u-form 2-parting-0-45 2-parting-45-60 3-parting-0-45 3-parting-45-60 andlos-rakt andlos-snarat andlos-uform
Straight pull Choke hitch Basket hitch 0°−45° 45°−60° 0°−45° 45°−60° Straight pull Choke hitch Basket hitch
mm Max last (WLL) i ton
6 1,40 1,12 2,80 2,00 1,40 3,00 2,12 2,80 2,24 5,60
7 1,90 1,50 3,80 2,65 1,90 4,00 2,80 3,80 3,00 7,60
8 2,50 2,00 5,00 3,55 2,50 5,30 3,75 5,00 4,00 10,00
10 4,00 3,15 8,00 5,60 4,00 8,40 6,00 8,00 6,30 16,00
13 6,70 5,30 13,40 9,50 6,70 14,00 10,00 13,40 10,60 26,80
16 10,00 8,00 20,00 14,00 10,00 21,20 15,00 20,00 16,00 40,00
19 14,00 11,20 28,00 20,00 14,00 30,00 21,20 28,00 22,40 56,00
20 16,00 12,80 32,00 22,40 16,00 33,60 24,00 32,00 25,60 64,00
22 19,00 15,00 38,00 26,50 19,00 40,00 28,00 38,00 30,00 76,00
26 26,50 21,20 53,00 37,50 26,50 56,00 40,00 53,00 42,50 106,00
32 40,00 31,50 80,00 56,00 40,00 85,00 60,00 80,00 64,00 160,00
Factor (KL) 1 0,8 2 1,4 1 2,1 1,5 2 1,6 4
