Properties

  • Adjustable loading forks.
  • Height adjustment.
  • Marking: According to standard, CE-marked
  • Standard: EN 13155, EN 12100
Select a row from the table below, then click the add to quote button

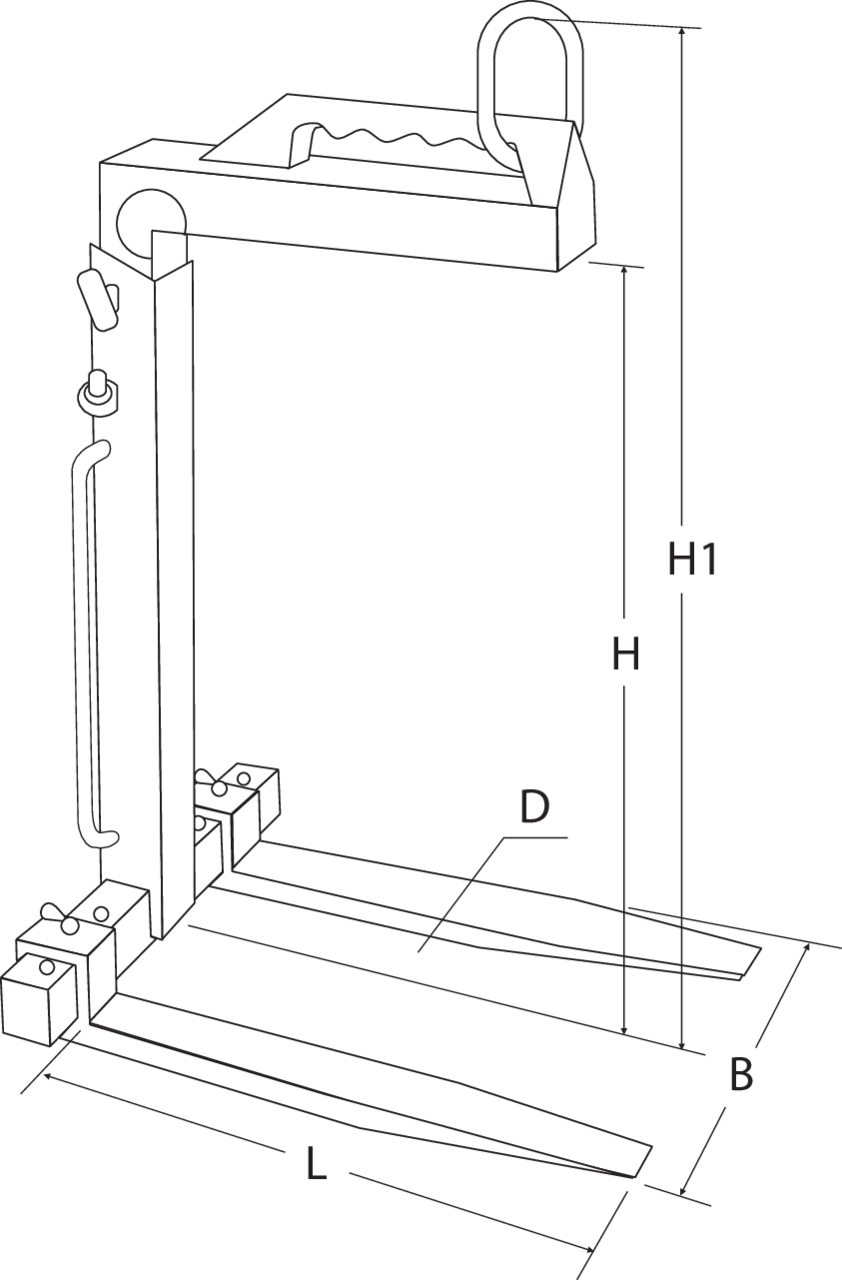

Part Code Code WLL Model Fork dimension
mm
diameter eye inside
mm
B
mm
D
mm
H
mm
H1
mm
Weight
3258010 8717365020896 1 RPHM-1 1000 x 100 x 30 100 x 80 350-900 100 x 30 1300-2000 1700-2400 130
3258020 8717365020902 2 RPHM-2 1000 x 120 x 40 100 x 80 400-900 120 x 40 1300-2000 1700-2400 200
3258030 8717365020919 3 RPHM-3 1000 x 120 x 50 120 x 100 450-900 120 x 50 1300-2000 1700-2400 250
3258050 8717365020926 5 RPHM-5 1000 x 150 x 60 136 x 120 530-1000 150 x 60 1300-2000 1700-2450 370
