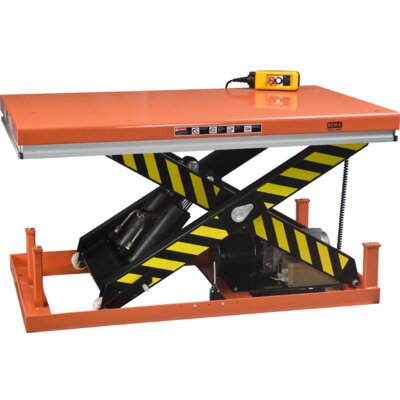

The universal stationary lifting table for lifting heavy loads can be used in a space-saving manner by placing the lifting table in a pit.

Properties

  • Robust supportconstruction.

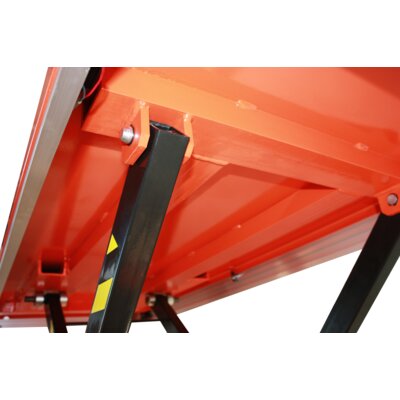

  • Profile reinforced table.
  • Solid steel scissors.
  • This lifting table is equipped with an aluminium safety frame.
  • Support inspection for safe maintenance.
  • Overload protection.
  • Hose rupture safety valve.
  • Hard chromed cylinder and piston rod.
  • Lifetime lubricated bearings.
  • Operating voltage 400V, control voltage 24V.
  • Protection class IP54.

Standard delivery

  • Includes 24 V push button switch with emergency stop.
  • Removable lifting eyes for easy transport.
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 1570
    Select a row from the table below, then click the add to quote button

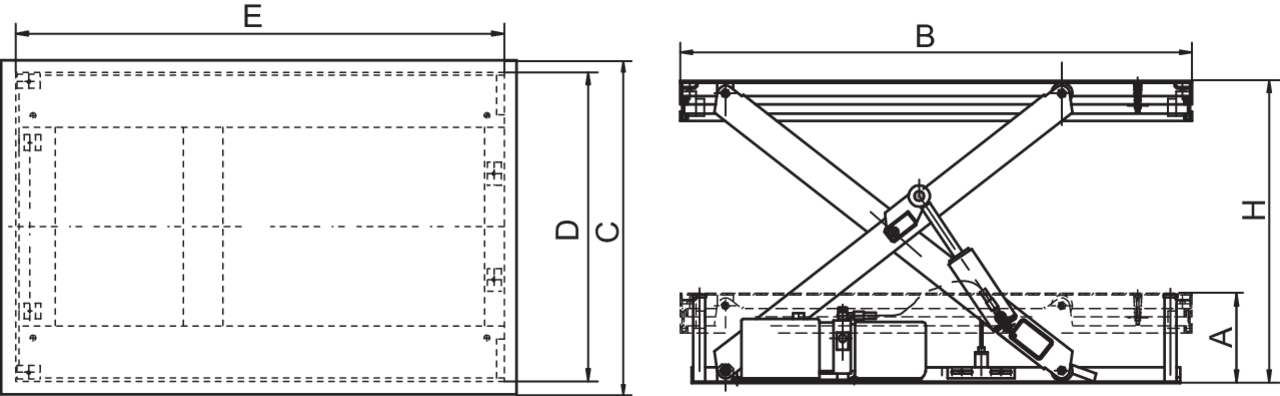

    Part Code Code WLL
    ton
    Model Lifting times Motor power
    kW
    Lifting cycle/hour A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    H
    mm
    Weight
    kg
    3459005 8717365021534 0,5 HS05-01 25 1,1 21 243 2 000 800 680 1 615 1 043 193
    3459001 8717365016257 1 HS1-01 20 0,75 21 248 1 300 820 640 1 240 1 033 160
    3459007 8717365021824 1 HS1-04 30 1,1 15 283 1 700 1 000 640 1 580 1 343 210
    3459002 8717365016264 2 HS2-01 20 1,5 21 273 1 300 850 785 1 220 1 043 235
    3459003 8717365021817 2 HS2-06 35 2,2 15 293 2 000 1 000 785 1 600 1 343 375
    3459004 8717365016271 4 HS4-01 40 2,2 13 288 1 700 1 200 900 1 600 1 098 375
    3459006 8717365021541 4 HS4-06 45 2,2 10 348 2 200 1 200 900 2 000 1 448 505
