The safe working load is only suitable for hoisting and pulling in line.
The lifting eye must not be loaded sideways.

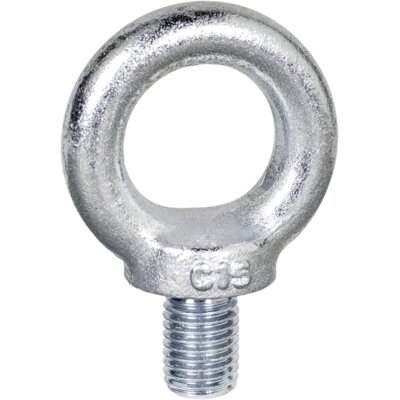

  • Material: C15
  • Marking: According to standard, CE-marked
  • Standard: DIN 580
  • Note: Only use in a straight lifting position.
    Select a row from the table below, then click the add to quote button

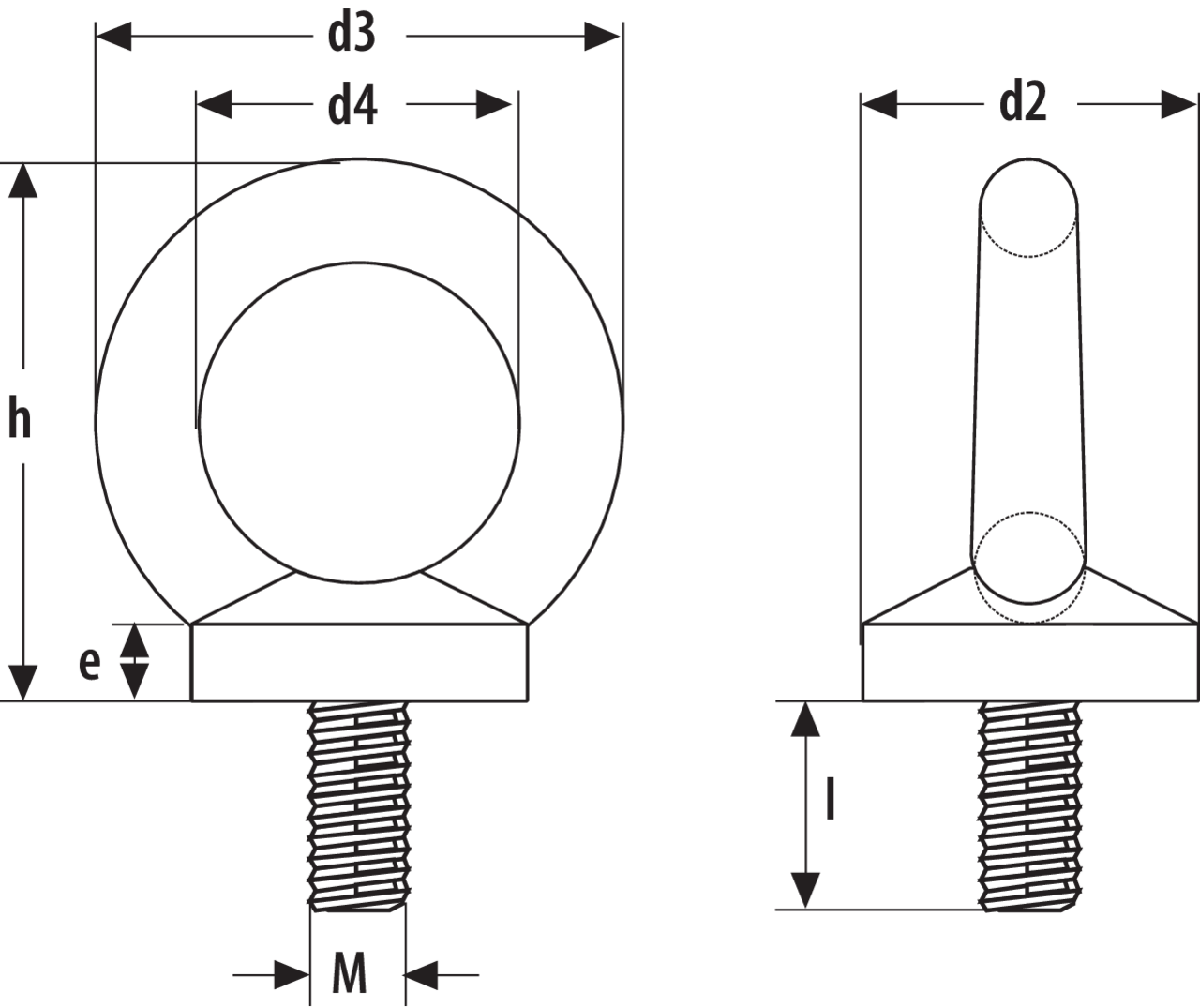

    Part Code Code WLL Thread
    mm
    Model D2
    mm
    D3
    mm
    D4
    mm
    E
    mm
    H
    mm
    L
    mm
    M
    mm
    Weight
    3015001 8717365013850 0,14 M8 G8140-M8 20 36 20 6 36 13 8 0,06
    3015003 8717365013867 0,23 M10 G8140-M10 25 45 25 8 45 17 10 0,11
    3015005 8717365013874 0,34 M12 G8140-M12 30 54 30 10 53 20,5 12 0,18
    3015007 8717365013881 0,49 M14 G8140-M14 35 63 35 12 60 27 14 0,28
    3015009 8717365013898 0,7 M16 G8140-M16 35 63 35 12 62 27 16 0,28
    3015011 8717365013904 1,2 M20 G8140-M20 40 72 40 14 71 30 20 0,43
    3015013 8717365013911 1,8 M24 G8140-M24 50 90 50 18 90 36 24 0,84
    3015015 8717365013928 2,5 M27 G8140-M27 50 90 50 18 90 36 27 1,22
    3015017 8717365013935 3,2 M30 G8140-M30 65 108 60 22 109 45 30 1,66
    3015019 8717365025723 4,6 M36 G8140-M36 75 196 70 26 128 54 36 2,65
