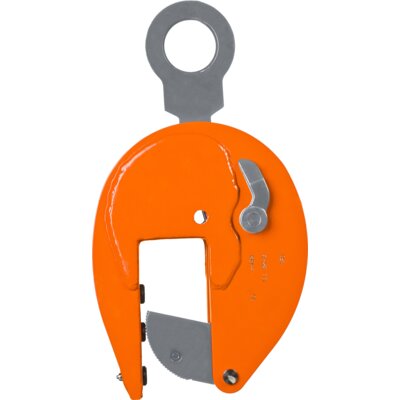

Properties

  • Standard with 3 pivots for extra powerful clamping force.
  • Clamp is locked in closed as well as open position.
  • Always equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered.

Application

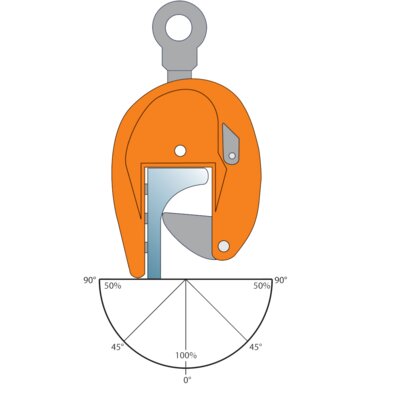

  • For vertical lifting, handling and transporting of Holland Profile (HP) shipbuilding structures, steel plates and structures.
  • Adjustable jaw opening available from: 0 to 155 mm.
  • Lifting of longer sections should be performed with a spreader beam fitted with multiple clamps.
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 13155
    Select a row from the table below, then click the add to quote button
    Part Code Code WLL
    ton
    Jaw width
    mm
    Model A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    F
    mm
    Weight
    kg
    3313017 8717365015267 1,5 0-80 CBL-1.5 205 70 520 280 66 64 20
