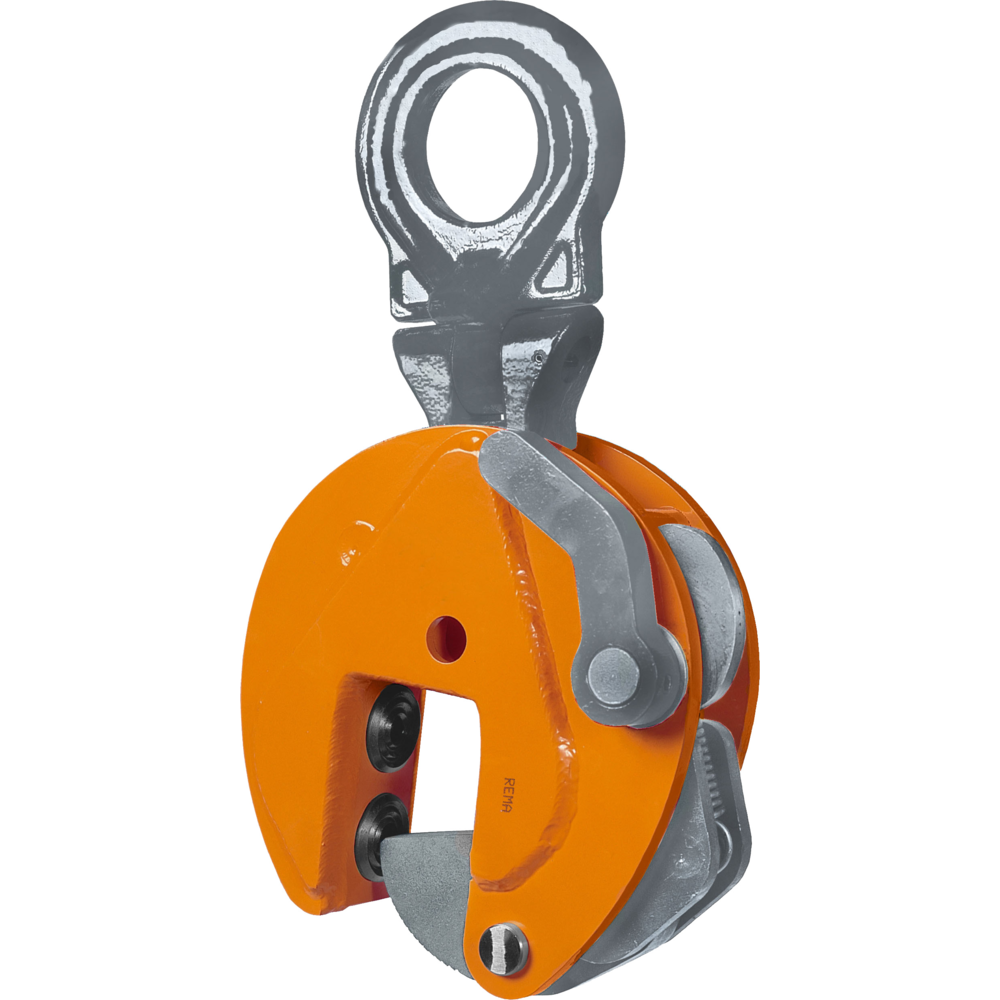

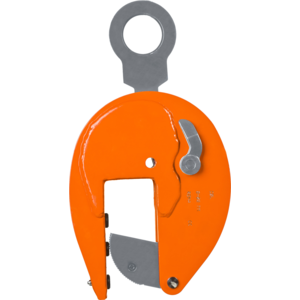

CBU Lightweight Holland profile (Hp) clamp for universal lifting


Specifically developed for lifting and transportation HP profiles and ship constructions using HP profiles. Fitted with 2 cams and universal lifting eyes.

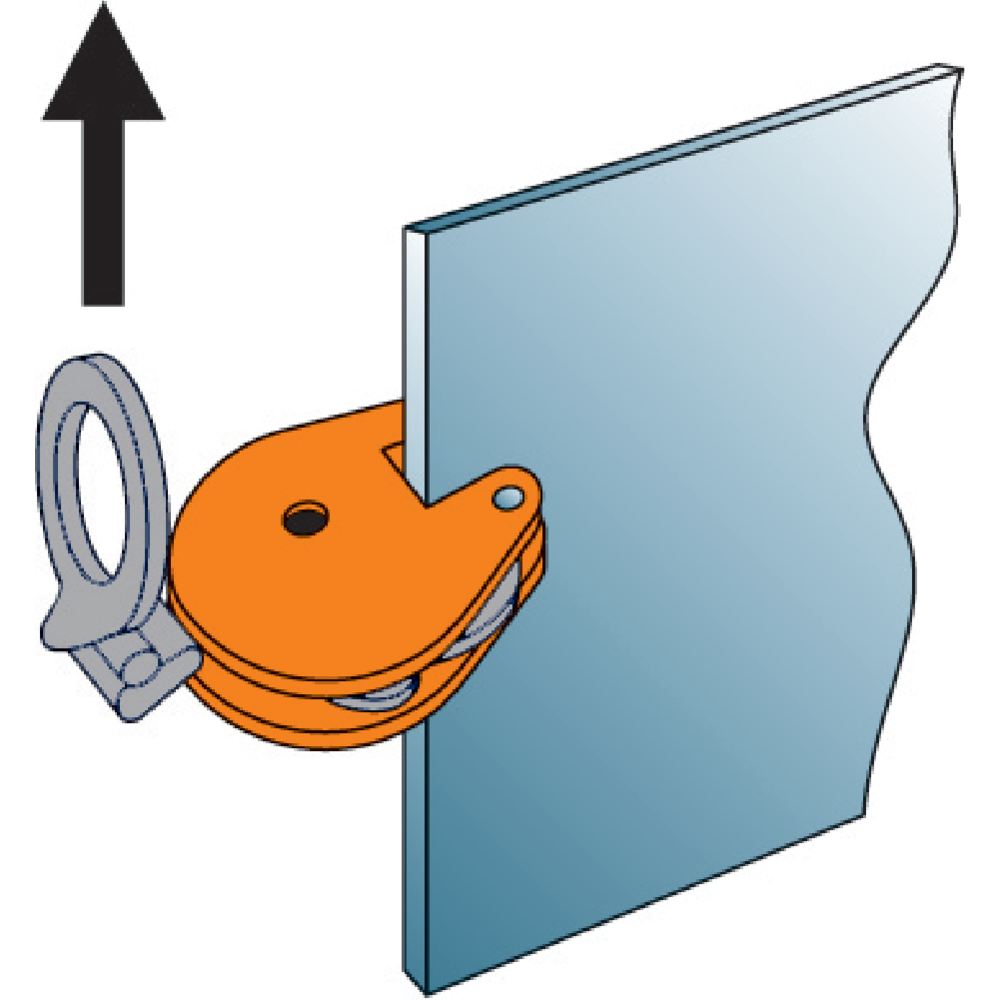

  • For vertical lifting, handling and transporting of Holland Profile (HP) shipbuilding structures from all positions
  • Jaw openings available from: 0 to 45 mm
  • Higher WLL available upon request.
  • Lifting of longer sections should be performed with a spreader beam fitted with multiple clamps.
  • Marking: According to standard, CE-marked
  • Standard: EN 13155, EN 12100
  • Warning: Min . WLL is 10% of max . WLL.
  • Safety factor: 5
