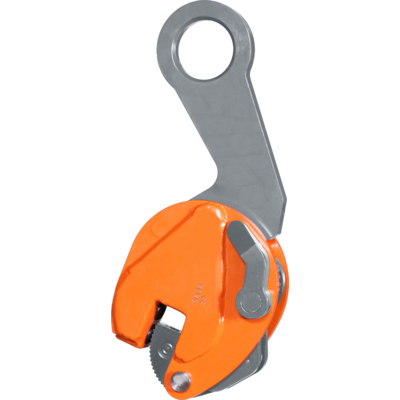

Designed for safe lifting and transportation of steel beams in vertical position.

Properties

  • The lifting eye is placed as far as possible in the center of gravity of the beam to be hoisted

Application

  • For vertical lifting, transportation and stacking of steel (H) beams, profiles and structures where the load must stay perfectly in position
  • Especially recommended for transportation and stacking of steel (H) beams (e .g . when sawing of steel beams, stacking of steel beams and building of steel constructions)
  • Jaw openings available from: 0 to 25 mm.
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 13155
  • Note: The plate surface of the material must have a hardness level of max. HrC 37/345 Hb
  • Warning: Minimum weight to be lifted is 10% of the safe workload.
  • Safety factor: 5
Select a row from the table below, then click the add to quote button

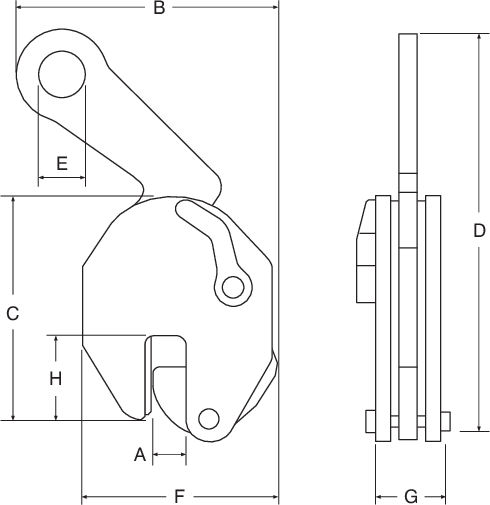

Part Code Code WLL Model Jaw opening
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
Weight
3313000 8717365015205 1 CBV-1.0 0-15 0-15 175 150 226 35 130 35 47 4
3313001 8717365015212 2 CBV-2.0 0-20 0-20 265 200 345 60 165 56 67 8
3313002 8717365023101 3 CBV-3.0 0-25 0-25 325 235 410 72 192 77 65 16
