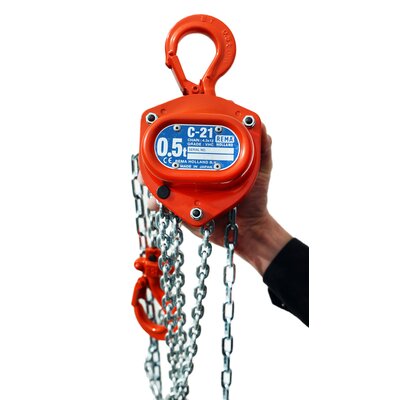

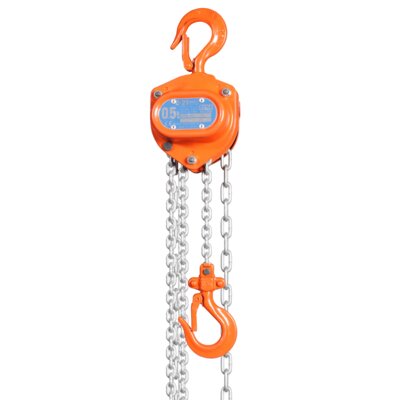

Safety factor of at least 4.8 or higher. Very compact and light body, 5.5 kg, 0.5 ton, easy to carry. Strong and dimensionally stable housing due to high-quality metal. Durable brake discs guarantee a longer life. The strongest hoist load chain B39VH, Grade 10. High quality solid forged hooks equipped with a strong and stable safety latch for even more safety.

Properties

  • Ideal manual chain hoist for assembly work due to its low weight.
  • Galvanized load chain with high tensile strength, Grade 10 according to EN 818/7.
  • Compact design.
  • Reliable load pressure brake that holds the load at any height.
  • Hooks fitted with safety flaps.
  • Patented guide for the load chain.
  • Equipped with a double ratchet spring for extra safety.
  • Load hooks bend gradually when overloaded and do not break abruptly.
  • Galvanized hand chain.

Standard delivery

  • 3 m lifting height.
  • 2,5 m operating height.

Option

  • Available in any other hoisting and operational heights.
  • Marking: According to standard, CE-marked
  • Standard: EN 13157, EN 818-7
    Select a row from the table below, then click the add to quote button
    Part Code Code WLL
    ton
    Lifting height
    m
    Model Load Chain dia x pitch
    mm
    Hand Chain Ø x pitch
    mm
    Chain falls Construction height
    mm
    Hand force max.
    kg
    A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    F
    mm
    G
    mm
    H
    mm
    I
    mm
    Weight
    kg
    0021001-10 8717365090165 0,5 10 C21/500KG/10M 4.3 x 12 4.5 x 23 1 275 26 275 131 54 77 121 24 36 17 13 5,5
    0021001-4 8717365264436 0,5 4 C21/500KG/4M 4.3 x 12 4.5 x 23 1 275 26 275 131 54 77 121 24 36 17 13 5,5
    0021001-5 8717365264443 0,5 5 C21/500KG/5M 4.3 x 12 4.5 x 23 1 275 26 275 131 54 77 121 24 36 17 13 5,5
    0021001-6 8717365264450 0,5 6 C21/500KG/6M 4.3 x 12 4.5 x 23 1 275 26 275 131 54 77 121 24 36 17 13 5,5
    0021001-7 8717365090134 0,5 7 C21/500KG/7M 4.3 x 12 4.5 x 23 1 275 26 275 131 54 77 121 24 36 17 13 5,5
    0021001-8 8717365090141 0,5 8 C21/500KG/8M 4.3 x 12 4.5 x 23 1 275 26 275 131 54 77 121 24 36 17 13 5,5
    0021001-9 8717365090158 0,5 9 C21/500KG/9M 4.3 x 12 4.5 x 23 1 275 26 275 131 54 77 121 24 36 17 13 5,5
    0021001-3M 8717365259814 0,5 3 C21/500KG/3M 4.3 x 12 4.5 x 23 1 275 26 275 131 54 77 121 24 36 17 13 5,5
    0021003-6 8717365264481 1 6 C21/1000KG/6M 5.6 x 17 4.5 x 23 1 310 32 310 143 61 82 148 29 43 22 16 8,9
    0021003-9 8717365090196 1 9 C21/1000KG/9M 5.6 x 17 4.5 x 23 1 310 32 310 143 61 82 148 29 43 22 16 8,9
    0021003-8 8717365090189 1 8 C21/1000KG/8M 5.6 x 17 4.5 x 23 1 310 32 310 143 61 82 148 29 43 22 16 8,9
    0021003-7 8717365090172 1 7 C21/1000KG/7M 5.6 x 17 4.5 x 23 1 310 32 310 143 61 82 148 29 43 22 16 8,9
    0021003-5 8717365264474 1 5 C21/1000KG/5M 5.6 x 17 4.5 x 23 1 310 32 310 143 61 82 148 29 43 22 16 8,9
    0021003-4 8717365264467 1 4 C21/1000KG/4M 5.6 x 17 4.5 x 23 1 310 32 310 143 61 82 148 29 43 22 16 8,9
    0021003-3M 8717365259845 1 3 C21/1000KG/3M 5.6 x 17 4.5 x 23 1 310 32 310 143 61 82 148 29 43 22 16 8,9
    0021003-10 8717365090202 1 10 C21/1000KG/10M 5.6 x 17 4.5 x 23 1 310 32 310 143 61 82 148 29 43 22 16 8,9
    0021005-10 8717365090240 1,5 10 C21/1500KG/10M 6.5 x 19 4.5 x 23 1 340 33 340 152 68 84 168 29 43 26 21 12,6
    0021005-3M 8717365259876 1,5 3 C21/1500KG/3M 6.5 x 19 4.5 x 23 1 340 33 340 152 68 84 168 29 43 26 21 12,6
    0021005-4 8717365264498 1,5 4 C21/1500KG/4M 6.5 x 19 4.5 x 23 1 340 33 340 152 68 84 168 29 43 26 21 12,6
    0021005-5 8717365264504 1,5 5 C21/1500KG/5M 6.5 x 19 4.5 x 23 1 340 33 340 152 68 84 168 29 43 26 21 12,6
    0021005-6 8717365264511 1,5 6 C21/1500KG/6M 6.5 x 19 4.5 x 23 1 340 33 340 152 68 84 168 29 43 26 21 12,6
    0021005-7 8717365090219 1,5 7 C21/1500KG/7M 6.5 x 19 4.5 x 23 1 340 33 340 152 68 84 168 29 43 26 21 12,6
    0021005-8 8717365090226 1,5 8 C21/1500KG/8M 6.5 x 19 4.5 x 23 1 340 33 340 152 68 84 168 29 43 26 21 12,6
    0021005-9 8717365090233 1,5 9 C21/1500KG/9M 6.5 x 19 4.5 x 23 1 340 33 340 152 68 84 168 29 43 26 21 12,6
    0021007-7 8717365090257 2 7 C21/2000KG/7M 7.5 x 21 4.5 x 23 1 384 33 384 164 75 89 193 34 53 29 22 16,6
    0021007-9 8717365090271 2 9 C21/2000KG/9M 7.5 x 21 4.5 x 23 1 384 33 384 164 75 89 193 34 53 29 22 16,6
    0021007-8 8717365090264 2 8 C21/2000KG/8M 7.5 x 21 4.5 x 23 1 384 33 384 164 75 89 193 34 53 29 22 16,6
    0021007-10 8717365090288 2 10 C21/2000KG/10M 7.5 x 21 4.5 x 23 1 384 33 384 164 75 89 193 34 53 29 22 16,6
    0021007-6 8717365098017 2 6 C21/2000KG/6M 7.5 x 21 4.5 x 23 1 384 33 384 164 75 89 193 34 53 29 22 16,6
    0021007-4 8717365264528 2 4 C21/2000KG/4M 7.5 x 21 4.5 x 23 1 384 33 384 164 75 89 193 34 53 29 22 16,6
    0021007-3M 8717365259906 2 3 C21/2000KG/3M 7.5 x 21 4.5 x 23 1 384 33 384 164 75 89 193 34 53 29 22 16,6
    0021007-5 8717365264535 2 5 C21/2000KG/5M 7.5 x 21 4.5 x 23 1 384 33 384 164 75 89 193 34 53 29 22 16,6
    0021009-6 8717365264573 3 6 C21/3000KG/6M 6.5 x 19 4.5 x 23 2 480 38 480 152 68 84 209 36 53 35 28 19,3
    0021009-9 8717365090318 3 9 C21/3000KG/9M 6.5 x 19 4.5 x 23 2 480 38 480 152 68 84 209 36 53 35 28 19,3
    0021009-7 8717365090295 3 7 C21/3000KG/7M 6.5 x 19 4.5 x 23 2 480 38 480 152 68 84 209 36 53 35 28 19,3
    0021009-8 8717365090301 3 8 C21/3000KG/8M 6.5 x 19 4.5 x 23 2 480 38 480 152 68 84 209 36 53 35 28 19,3
    0021009-5 8717365264566 3 5 C21/3000KG/5M 6.5 x 19 4.5 x 23 2 480 38 480 152 68 84 209 36 53 35 28 19,3
    0021009-4 8717365264559 3 4 C21/3000KG/4M 6.5 x 19 4.5 x 23 2 480 38 480 152 68 84 209 36 53 35 28 19,3
    0021009-3M 8717365259937 3 3 C21/3000KG/3M 6.5 x 19 4.5 x 23 2 480 38 480 152 68 84 209 36 53 35 28 19,3
    0021009-10 8717365090325 3 10 C21/3000KG/10M 6.5 x 19 4.5 x 23 2 480 38 480 152 68 84 209 36 53 35 28 19,3
    0021011-10 8717365090363 5 10 C21/5000KG/10M 7.5 x 21 4.5 x 23 3 555 34 555 164 75 89 297 45 70 46 34 34
    0021011-3M 8717365259968 5 3 C21/5000KG/3M 7.5 x 21 4.5 x 23 3 555 34 555 164 75 89 297 45 70 46 34 34
    0021011-4 8717365264580 5 4 C21/5000KG/4M 7.5 x 21 4.5 x 23 3 555 34 555 164 75 89 297 45 70 46 34 34
    0021011-5 8717365264597 5 5 C21/5000KG/5M 7.5 x 21 4.5 x 23 3 555 34 555 164 75 89 297 45 70 46 34 34
    0021011-6 8717365264603 5 6 C21/5000KG/6M 7.5 x 21 4.5 x 23 3 555 34 555 164 75 89 297 45 70 46 34 34
    0021011-7 8717365090332 5 7 C21/5000KG/7M 7.5 x 21 4.5 x 23 3 555 34 555 164 75 89 297 45 70 46 34 34
    0021011-8 8717365090349 5 8 C21/5000KG/8M 7.5 x 21 4.5 x 23 3 555 34 555 164 75 89 297 45 70 46 34 34
    0021011-9 8717365090356 5 9 C21/5000KG/9M 7.5 x 21 4.5 x 23 3 555 34 555 164 75 89 297 45 70 46 34 34
