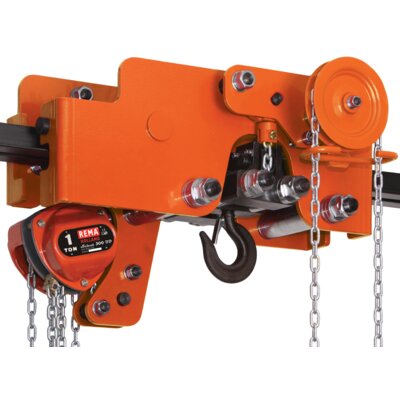

Hand-operated trolley in combination with the REMA Select 200OD hand chain hoist.
Only available in combination with the REMA Select 200 OD manual chain hoist.


Properties

  • Extremely low building height (135-235 mm).
  • Suitable for beams with both straight and sloping flange.
  • Maintenance-free ball bearings.
  • Wheel rupture supports for extra safety.
  • Hand chain operated trolley.
  • Technical specifications for manual hoist see Select 200 OD chain hoist.

Standard delivery

  • 3 meters lifting height (max. between top and bottom hook).
  • 2.5 meters operation.

Option

  • Available in other lifting and operating heights.
  • Marking: CE-marked
Select a row from the table below, then click the add to quote button

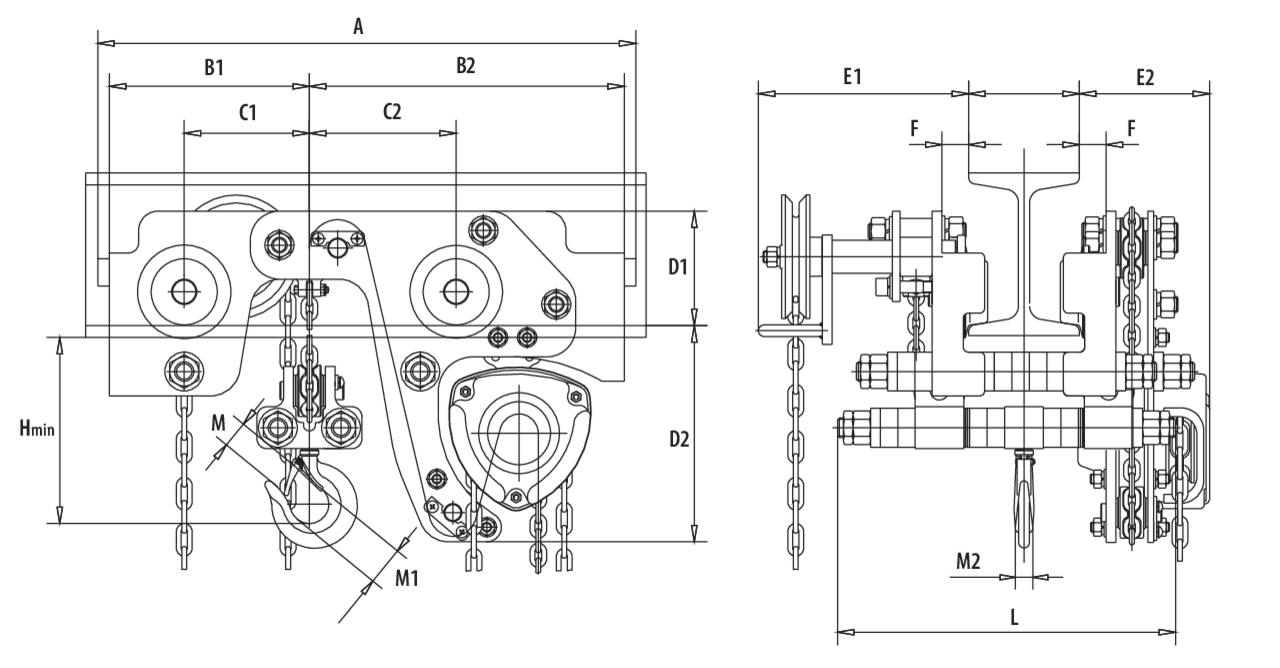

Part Code WLL
ton
Model Flange width
mm
Load Chain dia x pitch
mm
Hand Chain dia x pitch
mm
Chain falls Min. curve radius
mm
A
mm
B1
mm
B2
mm
C1
mm
C2
mm
D1
mm
D2
mm
E1

mm
E2

mm
F
mm
H
mm
L
mm
M1
mm
M2
mm
Weight
kg
0923001 1 KBT200OD-1 74-150 5.0 X 15 5.0 X 23.7 2 2 500 554 206 234 129 151 117 223 217 134 27,5 135 348 40 18 69
0923003 2 KBT200OD-2 82-156 6.3 X 19.1 5.0 X 23.7 2 4 000 684 254 406 149 211 165 265 240 152 36,5 160 392 50 24 118
0923005 3,2 KBT200OD-3.2 103-223 8.0 X 24.2 5.0 X 23.7 2 4 500 765 279 461 169 236 165 325 240 173 44 190 499 55 28 181
0923007 5 KBT200OD-5 119-215 8.0 X 24.2 5.0 X 23.7 4 6 000 873 336 524 201 279 184 327 259 180 39 235 512 65 37 293
0923009 6,3 KBT200OD-6.3 119-215 8.0 X 24.2 5.0 X 23.7 4 6 000 873 336 524 201 279 184 327 259 180 39 235 512 65 37 296
