The new REMA series SR is an advanced-design electric chain hoist exhibiting such important features such as the very high duty cycle and modular assembly.

Properties

  • 4 V, 3 phase 5 Hz, Isolation class F - direct control.
  • Attractive appearance, low constructional height.
  • Very high duty cycle thanks to an air-cooled hoisting motor used.
  • Easy repair & maintenance due to modular design.
  • The patented slip-type clutch unit meets all the safety requirements, thus loads will not fall even clutch malfunction or overload.
  • Brake holds loads at any desired height.
  • As a result of modular design, the motor, the encapsulated drive, the brake and the drive motor can be replaced independently.
  • Easy converting from single chain to double chain due to patented chain end locking.
  • Zinc-plated load chain.
  • DAT grade 8 complies with EN 818/7.

Standard delivery

  • 3 m lifting height (max distance between top and bottom hook).
  • Control height of 1,8 meter.
  • 1 m power cable.
  • Chain container.
  • Trolley not included.

Option

  • Higher lifting and control heights.
  • Chain containers of larger capacity.
  • Other operating voltages and frequencies are available.
  • Push or electric trolley.
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 14492, EN 818-7
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Lifting height
m
Model Motor
kW
Max. lifting height
m
Load Chain dia x pitch
mm
Chain falls Lifting speed
m/min.
Duty rating % ED Duty group of hoist FEM 9.511 Standard chain bag for lifting height
m

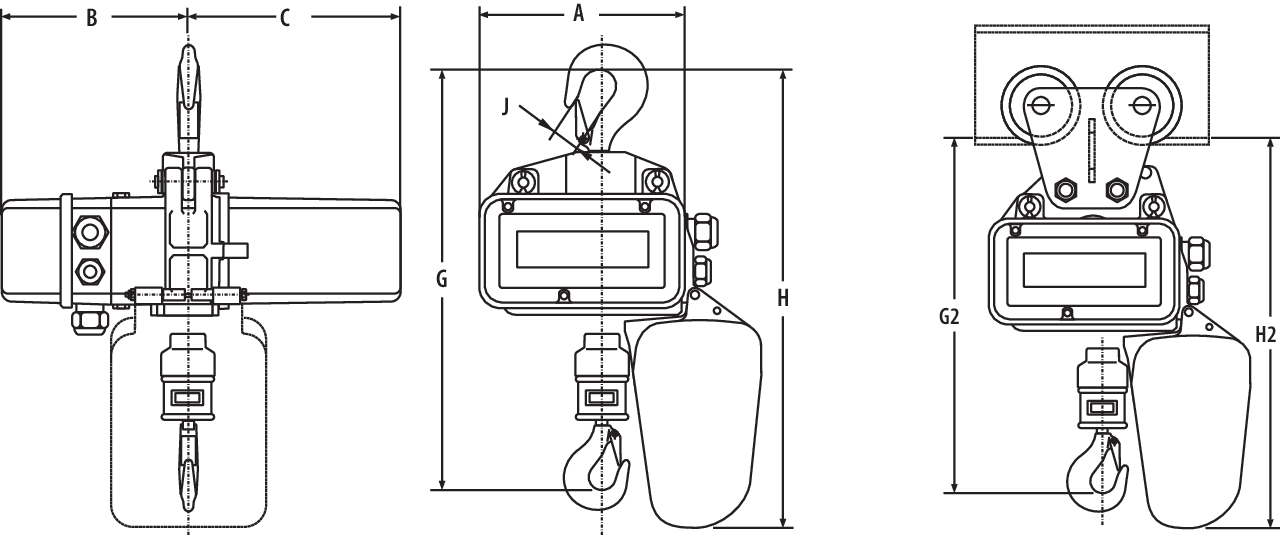

Type of trolley A
mm
B
mm
C
mm
G
mm
G2
mm
H
mm
H2
mm
J
mm
Weight
kg
0850000-3 8717365178450 0,125 3 SR030/62-125/1-8-3 0,55 30 5.2 x 15 1 8 60 4m 8 500 212 192 220 437 409 547 516 20 16
0850001-3 8717365178535 0,125 3 SR031/53-125/1-8/2-3 0.32/0.08 30 5.2 x 15 1 8/2 60/40 4m 8 500 212 192 220 437 409 547 516 20 16
0850000-4 8717365178467 0,125 4 SR030/62-125/1-8-4 0,55 30 5.2 x 15 1 8 60 4m 8 500 212 192 220 437 409 547 516 20 17
0850001-4 8717365178542 0,125 4 SR031/53-125/1-8/2-4 0.32/0.08 30 5.2 x 15 1 8/2 60/40 4m 8 500 212 192 220 437 409 547 516 20 17
0850000-5 8717365178474 0,125 5 SR030/62-125/1-8-5 0,55 30 5.2 x 15 1 8 60 4m 8 500 212 192 220 437 409 547 516 20 18
0850001-5 8717365178559 0,125 5 SR031/53-125/1-8/2-5 0.32/0.08 30 5.2 x 15 1 8/2 60/40 4m 8 500 212 192 220 437 409 547 516 20 18
0850000-6 8717365178481 0,125 6 SR030/62-125/1-8-6 0,55 30 5.2 x 15 1 8 60 4m 8 500 212 192 220 437 409 547 516 20 19
0850001-6 8717365178566 0,125 6 SR031/53-125/1-8/2-6 0.32/0.08 30 5.2 x 15 1 8/2 60/40 4m 8 500 212 192 220 437 409 547 516 20 19
0850001-7 8717365178573 0,125 7 SR031/53-125/1-8/2-7 0.32/0.08 30 5.2 x 15 1 8/2 60/40 4m 8 500 212 192 220 437 409 547 516 20 20
0850000-7 8717365178498 0,125 7 SR030/62-125/1-8-7 0,55 30 5.2 x 15 1 8 60 4m 8 500 212 192 220 437 409 547 516 20 20
0850001-8 8717365178580 0,125 8 SR031/53-125/1-8/2-8 0.32/0.08 30 5.2 x 15 1 8/2 60/40 4m 8 500 212 192 220 437 409 547 516 20 21
0850000-8 8717365178504 0,125 8 SR030/62-125/1-8-8 0,55 30 5.2 x 15 1 8 60 4m 8 500 212 192 220 437 409 547 516 20 21
0850000-9 8717365178511 0,125 9 SR030/62-125/1-8-9 0,55 30 5.2 x 15 1 8 60 4m 8 500 212 192 220 437 409 547 516 20 22
0850001-9 8717365178597 0,125 9 SR031/53-125/1-8/2-9 0.32/0.08 30 5.2 x 15 1 8/2 60/40 4m 8 500 212 192 220 437 409 547 516 20 22
0850000-10 8717365178528 0,125 10 SR030/62-125/1-8-10 0,55 30 5.2 x 15 1 8 60 4m 8 500 212 192 220 437 409 547 516 20 23
0850001-10 8717365178603 0,125 10 SR031/53-125/1-8/2-10 0.32/0.08 30 5.2 x 15 1 8/2 60/40 4m 8 500 212 192 220 437 409 547 516 20 23
0850003-3 8717365178610 0,25 3 SR031/51-250/1-8/2-3 0.32/0.08 30 5.2 x 15 1 8/2 50/25 3m 8 500 212 192 220 437 409 547 516 20 17
0850006-3 8717365178696 0,25 3 SR030/64-250/1-8-3 0,55 30 5.2 x 15 1 8 50 3m 30 500 212 192 220 437 409 547 516 20 17
0850003-4 8717365178627 0,25 4 SR031/51-250/1-8/2-4 0.32/0.08 30 5.2 x 15 1 8/2 50/25 3m 8 500 212 192 220 437 409 547 516 20 18
0850006-4 8717365178702 0,25 4 SR030/64-250/1-8-4 0,55 30 5.2 x 15 1 8 50 3m 30 500 212 192 220 437 409 547 516 20 18
0850006-5 8717365178719 0,25 5 SR030/64-250/1-8-5 0,55 30 5.2 x 15 1 8 50 3m 30 500 212 192 220 437 409 547 516 20 19
0850003-5 8717365178634 0,25 5 SR031/51-250/1-8/2-5 0.32/0.08 30 5.2 x 15 1 8/2 50/25 3m 8 500 212 192 220 437 409 547 516 20 19
0850003-6 8717365178641 0,25 6 SR031/51-250/1-8/2-6 0.32/0.08 30 5.2 x 15 1 8/2 50/25 3m 8 500 212 192 220 437 409 547 516 20 20
0850006-6 8717365178726 0,25 6 SR030/64-250/1-8-6 0,55 30 5.2 x 15 1 8 50 3m 30 500 212 192 220 437 409 547 516 20 20
0850003-7 8717365178658 0,25 7 SR031/51-250/1-8/2-7 0.32/0.08 30 5.2 x 15 1 8/2 50/25 3m 8 500 212 192 220 437 409 547 516 20 21
0850006-7 8717365178733 0,25 7 SR030/64-250/1-8-7 0,55 30 5.2 x 15 1 8 50 3m 30 500 212 192 220 437 409 547 516 20 21
0850006-8 8717365178740 0,25 8 SR030/64-250/1-8-8 0,55 30 5.2 x 15 1 8 50 3m 30 500 212 192 220 437 409 547 516 20 22
0850003-8 8717365178665 0,25 8 SR031/51-250/1-8/2-8 0.32/0.08 30 5.2 x 15 1 8/2 50/25 3m 8 500 212 192 220 437 409 547 516 20 22
0850003-9 8717365178672 0,25 9 SR031/51-250/1-8/2-9 0.32/0.08 30 5.2 x 15 1 8/2 50/25 3m 8 500 212 192 220 437 409 547 516 20 23
0850006-9 8717365178757 0,25 9 SR030/64-250/1-8-9 0,55 30 5.2 x 15 1 8 50 3m 30 500 212 192 220 437 409 547 516 20 23
0850006-10 8717365178764 0,25 10 SR030/64-250/1-8-10 0,55 30 5.2 x 15 1 8 50 3m 30 500 212 192 220 437 409 547 516 20 24
0850003-10 8717365178689 0,25 10 SR031/51-250/1-8/2-10 0.32/0.08 30 5.2 x 15 1 8/2 50/25 3m 8 500 212 192 220 437 409 547 516 20 24
0850009-3 8717365178771 0,5 3 SR031/51-500/2-4/1-3 0.31/0.08 15 5.2 x 15 2 4/1 50/25 3m 4 500 212 192 220 485 454 547 516 22 18
0860013-3 8717365099755 0,5 3 SR030/52-500/1-8-3 0,7 25 5.2 x 15 1 8 40 1Bm 8 2 000 212 192 220 437 409 547 516 20 18
0860013-4 8717365099762 0,5 4 SR030/52-500/1-8-4 0,7 25 5.2 x 15 1 8 40 1Bm 8 2 000 212 192 220 437 409 547 516 20 19
0850009-4 8717365178788 0,5 4 SR031/51-500/2-4/1-4 0.31/0.08 15 5.2 x 15 2 4/1 50/25 3m 4 500 212 192 220 485 454 547 516 22 19,5
0860013-5 8717365099779 0,5 5 SR030/52-500/1-8-5 0,7 25 5.2 x 15 1 8 40 1Bm 8 2 000 212 192 220 437 409 547 516 20 20
0850009-5 8717365178795 0,5 5 SR031/51-500/2-4/1-5 0.31/0.08 15 5.2 x 15 2 4/1 50/25 3m 4 500 212 192 220 485 454 547 516 22 21
0860013-6 8717365099786 0,5 6 SR030/52-500/1-8-6 0,7 25 5.2 x 15 1 8 40 1Bm 8 2 000 212 192 220 437 409 547 516 20 21
0860013-7 8717365099793 0,5 7 SR030/52-500/1-8-7 0,7 25 5.2 x 15 1 8 40 1Bm 8 2 000 212 192 220 437 409 547 516 20 22
0850009-6 8717365178801 0,5 6 SR031/51-500/2-4/1-6 0.31/0.08 15 5.2 x 15 2 4/1 50/25 3m 4 500 212 192 220 485 454 547 516 22 22,5
0860013-8 8717365099809 0,5 8 SR030/52-500/1-8-8 0,7 25 5.2 x 15 1 8 40 1Bm 8 2 000 212 192 220 437 409 547 516 20 23
0860013-9 8717365099816 0,5 9 SR030/52-500/1-8-9 0,7 25 5.2 x 15 1 8 40 1Bm 8 2 000 212 192 220 437 409 547 516 20 24
0850009-7 8717365178818 0,5 7 SR031/51-500/2-4/1-7 0.31/0.08 15 5.2 x 15 2 4/1 50/25 3m 4 500 212 192 220 485 454 547 516 22 24
0860013-10 8717365099823 0,5 10 SR030/52-500/1-8-10 0,7 25 5.2 x 15 1 8 40 1Bm 8 2 000 212 192 220 437 409 547 516 20 25
0850009-8 8717365178825 0,5 8 SR031/51-500/2-4/1-8 0.31/0.08 15 5.2 x 15 2 4/1 50/25 3m 4 500 212 192 220 485 454 547 516 22 25,5
0850009-9 8717365178832 0,5 9 SR031/51-500/2-4/1-9 0.31/0.08 15 5.2 x 15 2 4/1 50/25 3m 4 500 212 192 220 485 454 547 516 22 27
0850009-10 8717365178849 0,5 10 SR031/51-500/2-4/1-10 0.31/0.08 15 5.2 x 15 2 4/1 50/25 3m 4 500 212 192 220 485 454 547 516 22 28,5
0860016-3 8717365182556 0,5 3 SR071/54-500/1-8/2-3 0.9/0.2 17 7.2 x 21 1 8/2 60/25 2m 5 2 000 266 232 274 500 460 607 567 22 45
0860016-4 8717365182563 0,5 4 SR071/54-500/1-8/2-4 0.9/0.2 17 7.2 x 21 1 8/2 60/25 2m 5 2 000 266 232 274 500 460 607 567 22 46,5
0860016-5 8717365182570 0,5 5 SR071/54-500/1-8/2-5 0.9/0.2 17 7.2 x 21 1 8/2 60/25 2m 5 2 000 266 232 274 500 460 607 567 22 48
0860016-6 8717365182594 0,5 6 SR071/54-500/1-8/2-6 0.9/0.2 17 7.2 x 21 1 8/2 60/25 2m 5 2 000 266 232 274 500 460 607 567 22 49,5
0860016-7 8717365182600 0,5 7 SR071/54-500/1-8/2-7 0.9/0.2 17 7.2 x 21 1 8/2 60/25 2m 5 2 000 266 232 274 500 460 607 567 22 51
0860016-8 8717365182617 0,5 8 SR071/54-500/1-8/2-8 0.9/0.2 17 7.2 x 21 1 8/2 60/25 2m 5 2 000 266 232 274 500 460 607 567 22 52,5
0860016-9 8717365182624 0,5 9 SR071/54-500/1-8/2-9 0.9/0.2 17 7.2 x 21 1 8/2 60/25 2m 5 2 000 266 232 274 500 460 607 567 22 54
0860016-10 8717365182587 0,5 10 SR071/54-500/1-8/2-10 0.9/0.2 17 7.2 x 21 1 8/2 60/25 2m 5 2 000 266 232 274 500 460 607 567 22 55,5
0860015-3 8717365099991 1 3 SR030/52-1000/2-4-3 0,7 12 5.2 x 15 2 4 40 1Bm 4 2 000 212 192 220 485 454 547 576 22 20
0860015-4 8717365100000 1 4 SR030/52-1000/2-4-4 0,7 12 5.2 x 15
