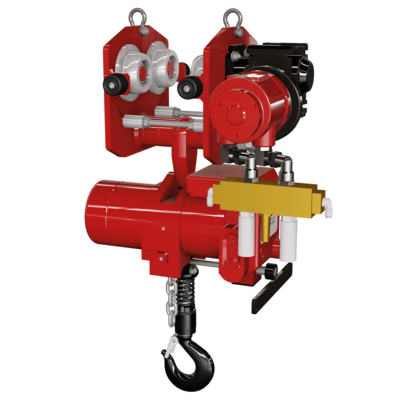

Air Chain Hoist with pneumatic blocker, Red Rooster TCR / TCS series

RED ROOSTER Air Chain Hoist with build on Pneumatic Trolley for loads from 250 up to 2000 kg. The TCR-series are especially developed for heavy industrial use. Robust cast steel body. The TCS-series are high speed hoists especially developed for material handling, with aluminum housing.

Standard features:

  • Precise variable speed control (cord- and pendant control).
  • Optimum control of the load, very precise positioning.
  • 4 button pendant control maneuvering both hoist and trolley
  • Compact design.
  • Endstop system.
  • Load limiter built-in without loss of headroom.
  • 4-wheel trolley.
  • Trolley to suit various flange profiles.
  • Wheel profile to suit parallel or tapered flanges.
  • Anti-tilt & anti-drop plates.
  • Low noise level.
  • Air pressure 0,4 - 0,63 MPa (4 - 6,3 Bar).


  • Marine Specification/Corrosion resistant
  • Paint systems from C2 - Industrial to C5 - Offshore specification (Red finish as standard. Other RAL colours available on request).
  • Choice of pendants.
  • Radio control pendant for electro pneumatic controls.
  • Control systems.
  • Chain collectors (PVC, galvanised or stainless steel).
  • Various types of hook or clevis available.
  • Air supply systems and valves.
  • Air Service unit.
  • Piped away exhaust air.
  • In house design for "specials".
  • Festoon systems.
  • Main air shut off valve.


  • According to EC Directive 94/9/EC (Ex Classification)

We highly recommend the use of an SMC air treatment unit.
(Sold separately.)
