• Marking: AISI-316
  • Warning: Not for lifting
    Select a row from the table below, then click the add to quote button

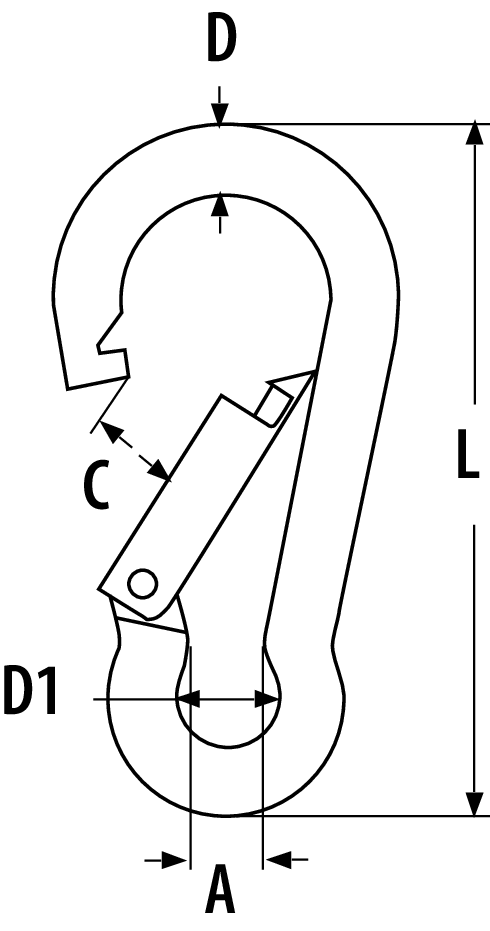

    Part Code Code Diameter
    mm
    Length
    mm
    Model A
    mm
    D
    mm
    D1
    mm
    L
    mm
    Weight
    2685805 8717365012815 5 50 K-5 6 5 10 50 0,02
    2685806 8717365012822 6 60 K-6 8 6 11 60 0,02
    2685808 8717365012846 8 80 K-8 8 8 13 80 0,06
    2685810 8717365012860 10 100 K-10 10 10 16 100 0,12
