• Not for lifting

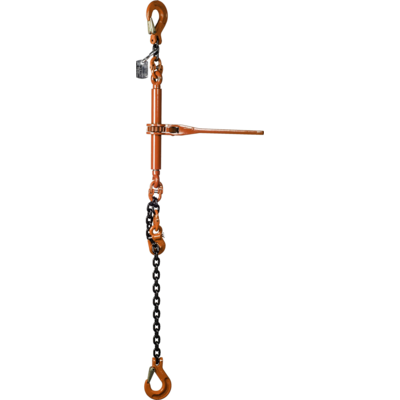

Load binders are used for the safe securing of heavy loads by road, rail, air and ship transport. The lashing chains are equipped with a ratchet tensioner, load hooks with safety latches, shortening claw with a safety device that prevents the chain from vibrating during transport. The ratchet tensioner applies a force to the chains in a controlled manner.

Properties

  • Ratchet tensioner with secure-locking.
  • Long side can be shortened safely by the shortening claw.
  • Safety label with workload and tension force.
  • Chains and accessories Grade 10, tensioner Grade 8
  • Standard working length 3.5 m.
  • Length of cranck 355 mm.

IMPORTANT:

  • Every load, independent of its weight, must be secured.
  • Load binderss are not suitable for lifting a load.
  • Never extend the handle with a pipe for more force.
  • Never subject chains, hooks and tensioner over sharp edges.
  • Use corner protectors or guides on sharp edges (r radius <diameter chain).
  • lashing chain with stretched or bent links, cracks, etc. may no longer be used.
  • In case of doubt, always have it inspected and / or repaired by authorized persons or authorities.
  • Marking: According to standard
  • Standard: EN 12195-3
Select a row from the table below, then click the add to quote button
Part Code Code Diameter
mm
LC
daN
Min. breaking force
kN
Length
m
Model Standard Tension Force (STF)
daN
Weight
3025108 8717365175886 8 5 000 10 3,5 TLB-8mm-3,5m 1 900 12
3025110 8717365175893 10 8 000 16 3,5 TLB-10mm-3,5m 1 900 19
3025113 8717365175909 13 13 400 26,8 3,5 TLB-13mm-3,5m 2 500 33
