Properties

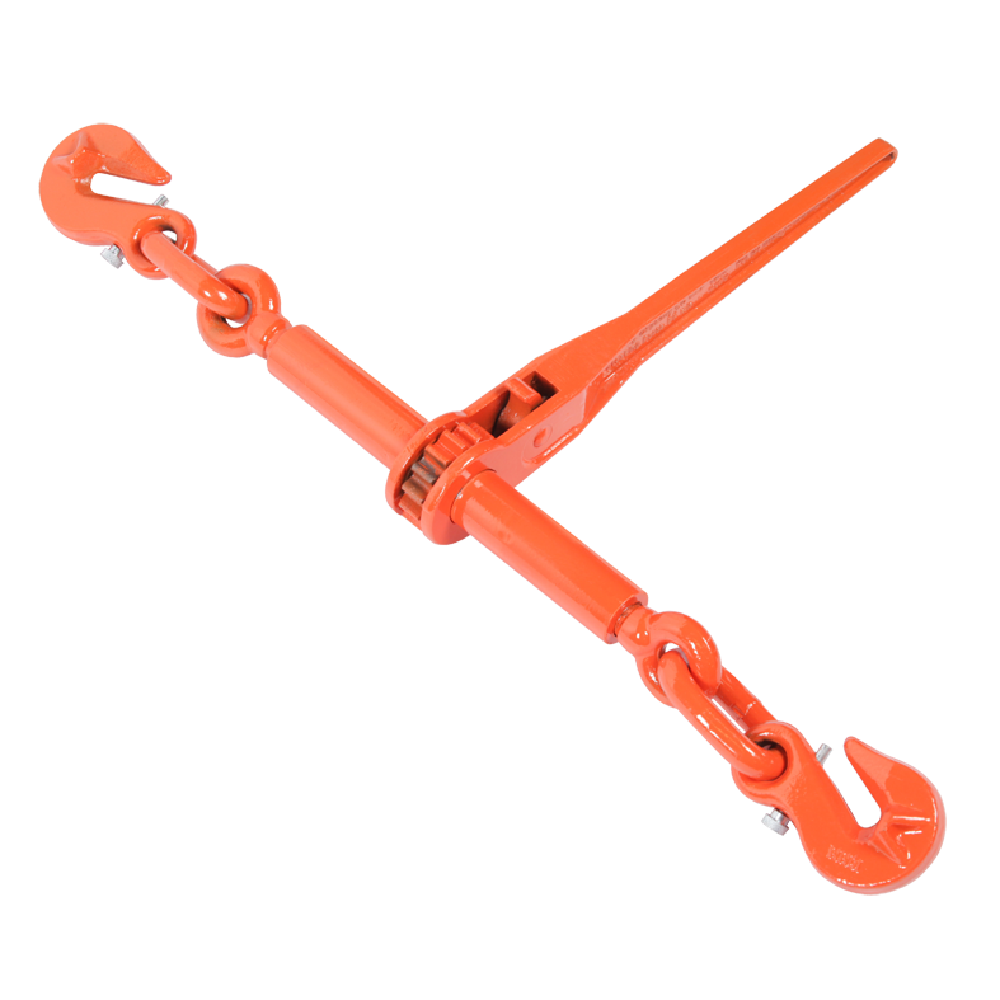

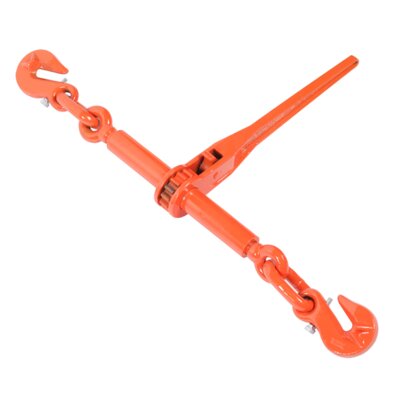

  • Chain tensioner with ratchet mechanism.
  • Anchor hooks with security.
  • Equipped with locking system.
  • Forged manufacture.
  • Require minimal effort to operate.
Select a row from the table below, then click the add to quote button

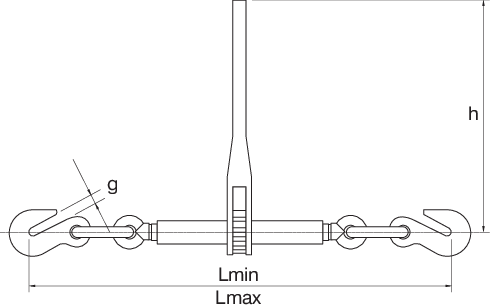

Part Code Code Diameter
mm
LC
daN
stroke length
mm
Standard Tension Force (STF)
daN
G
mm
H
mm
Lmin Lmax Weight
3023010 8717365014031 8 4 000 185 1 900 12,7 355 595 780 4,9
3023013 8717365014048 10 6 300 170 1 900 14 355 620 790 5,5
3023016 8717365014055 13 10 000 200 2 500 16,5 355 685 885 7,4
3023017 8717365024900 16 16 000 230 2 500 23,5 381 825 1 055 12,5
