Mechanical properties

  • Anodized aluminum housing.
  • Protection class IP 65.
  • Overload indication at 10% inconvenience.
  • Test load 2 x WLL.
  • Safety factor 5 x WLL.

Electrical specifications

  • Alkaline battery (9V type).
  • Battery operating time about 100 hours.

Electronic specifications

  • LCD display with 5 positions, digit height 17 mm.
  • Operating temperature range between -10° C to + 55° C.
  • Accuracy up to approx 0.15% of the reading value.

Functions

  • Automatic resetting when switched on.
  • Easy-to-use menu: ON/OFF, tare, peak value and hold buttons.
  • Self-calibrating at zero and weight values.
  • Readout possibilities: gross, net and tare weight.
  • In peak value function, maximum weight is held.
  • In hold function, current weight is held.
  • Measuring unit selection (kg - t - ton - lbs - daN - kN).
  • Automatic power supply OFF.

Option

  • Bow shackle from10T.
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 13155, EN 13889

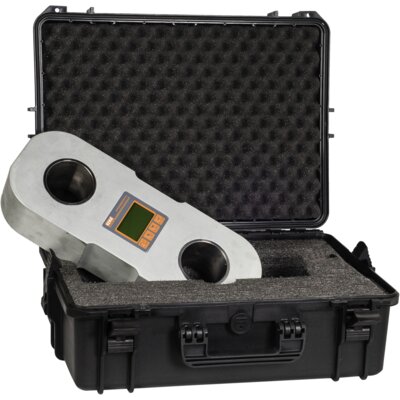

  • Note: Includes plastic case, manual and calibration report.
  • Safety factor: 5
Select a row from the table below, then click the add to quote button

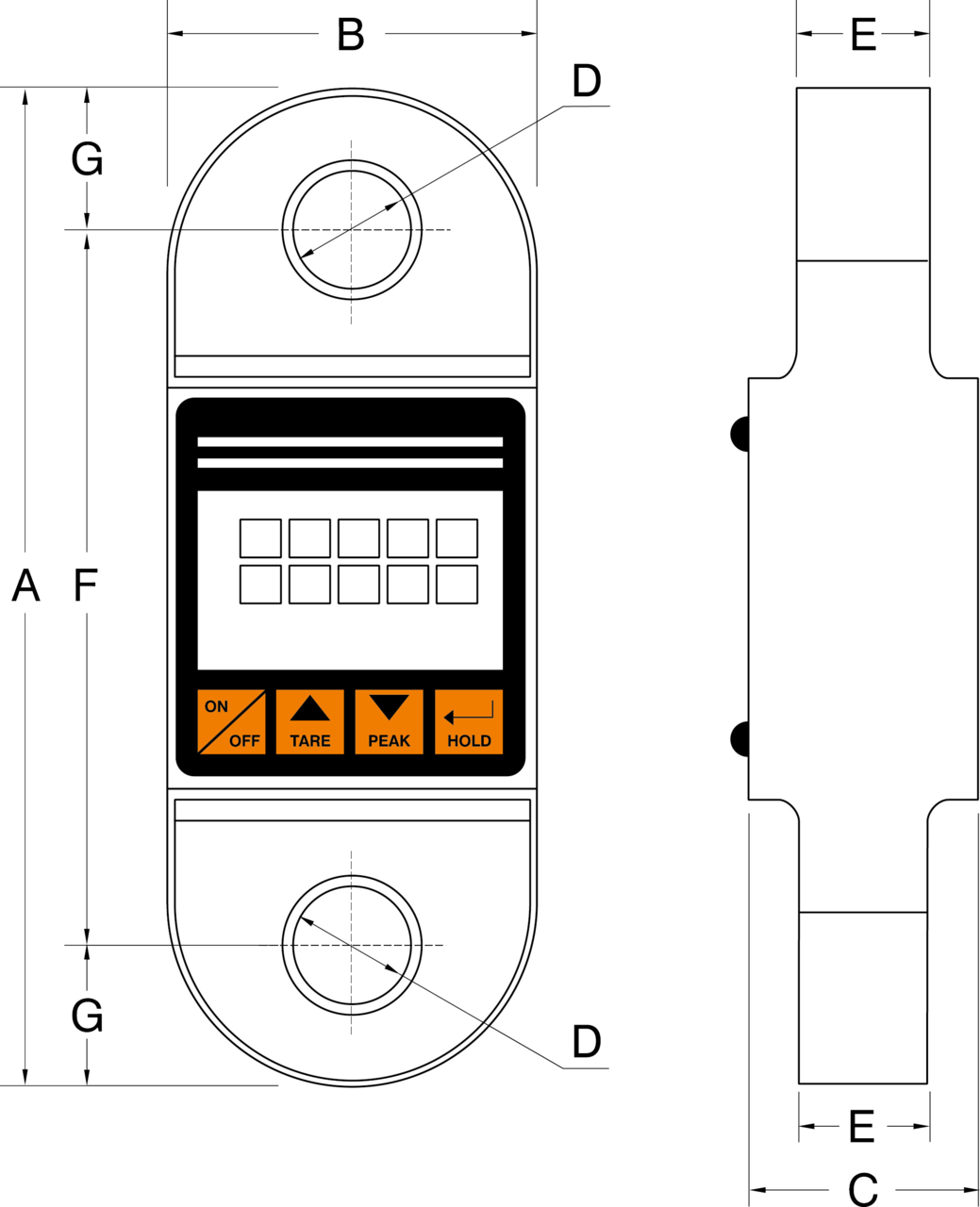

Part Code Code WLL Model Shackle Resolution
kg
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
Weight
1508000 8717365111006 1,25 DSD04-1.25 1,50t in. 0,5 190 85 54 16 16 142 25 0,7
1508001 8717365007477 2,5 DSD04-2.5 3,25t in. 1 215 85 54 21 25 159 28 1,35
1508003 8717365007484 5 DSD04-5.0 6.50t in. 2 232 85 54 27 32 168 32 1,85
1508005 8717365007491 10 DSD04-10.0 12.00t ex. 5 315 100 59 39 49 203 56 3,6
1508007 8717365020056 20 DSD04-20.0 25.00t ex. 10 350 126 70 55 70 210 70 7
