Mechanical properties
- Aluminum housing
- Alloy steel pulling unit
- Test load 2 x WLL (without losing accuracy)
- Safety factor 5 x WLL
- International Protection Rating / Ingress Protection: IP65 (EN60529)
Electrical specifications
- Alkaline battery (3 x AA type)
- Battery operating time about 180 hours
Electronic specifications
- Operating temperature range between -5° C to + 55° C
- Accuracy up to approx. 0.1% of the reading value
- Battery indicator
RX-PORT electrical specifications
- Alkaline batteries (3 x AA type)
- Stand time approx. 150 hours
- Battery indicator
RX-PORT electronic specifications
- LCD display with 5 positions, 12 mm digit height
- 868 MHz frequency control
- Operating temperature range -5 ° C to + 55 ° C
- RS232 port for printer or PC connection
TX-LOAD electrical specifications
- Transmission range max. 50m
TX-LOAD electronic specifications
- 868 MHz frequency control
Standard delivery
- Bow shackles

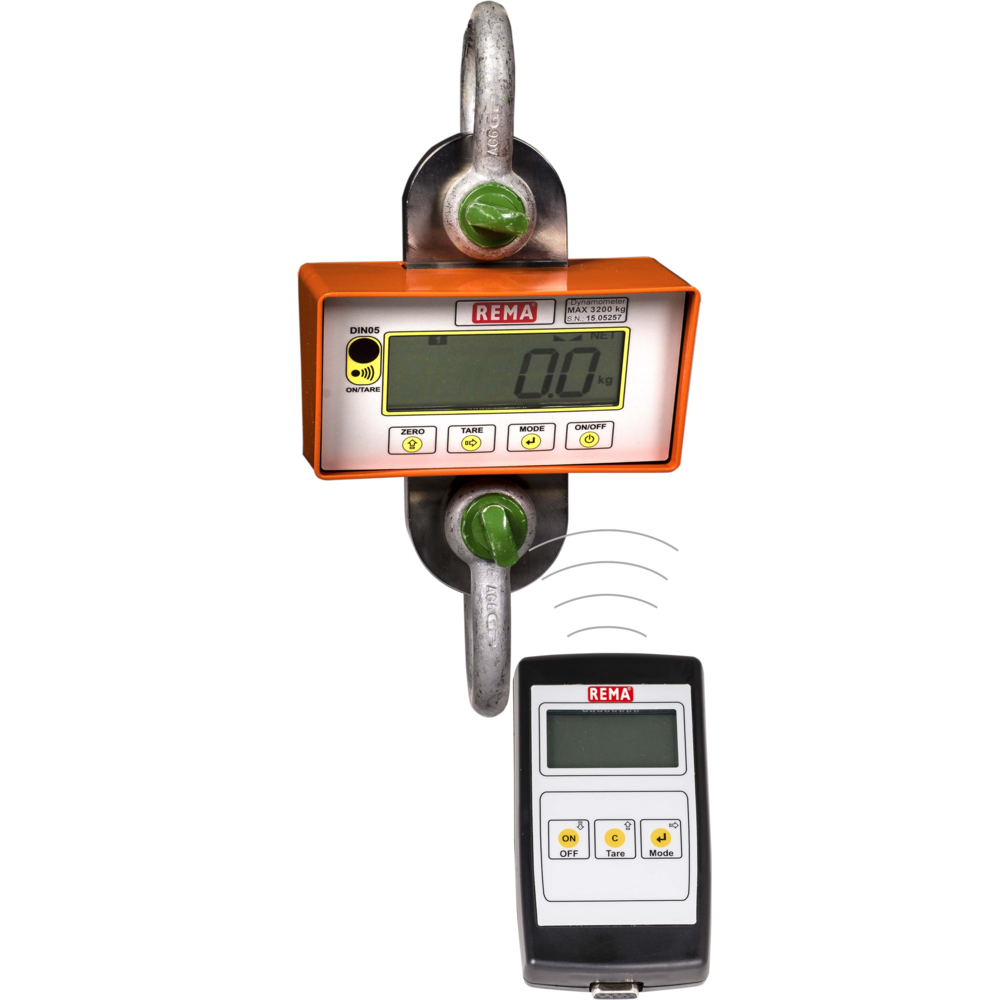

- Remote control
Option
- Bow shackle from 10T
- Marking: According to standard, CE-marked
- Standard: EN 13889, EN 12100, EN 13155

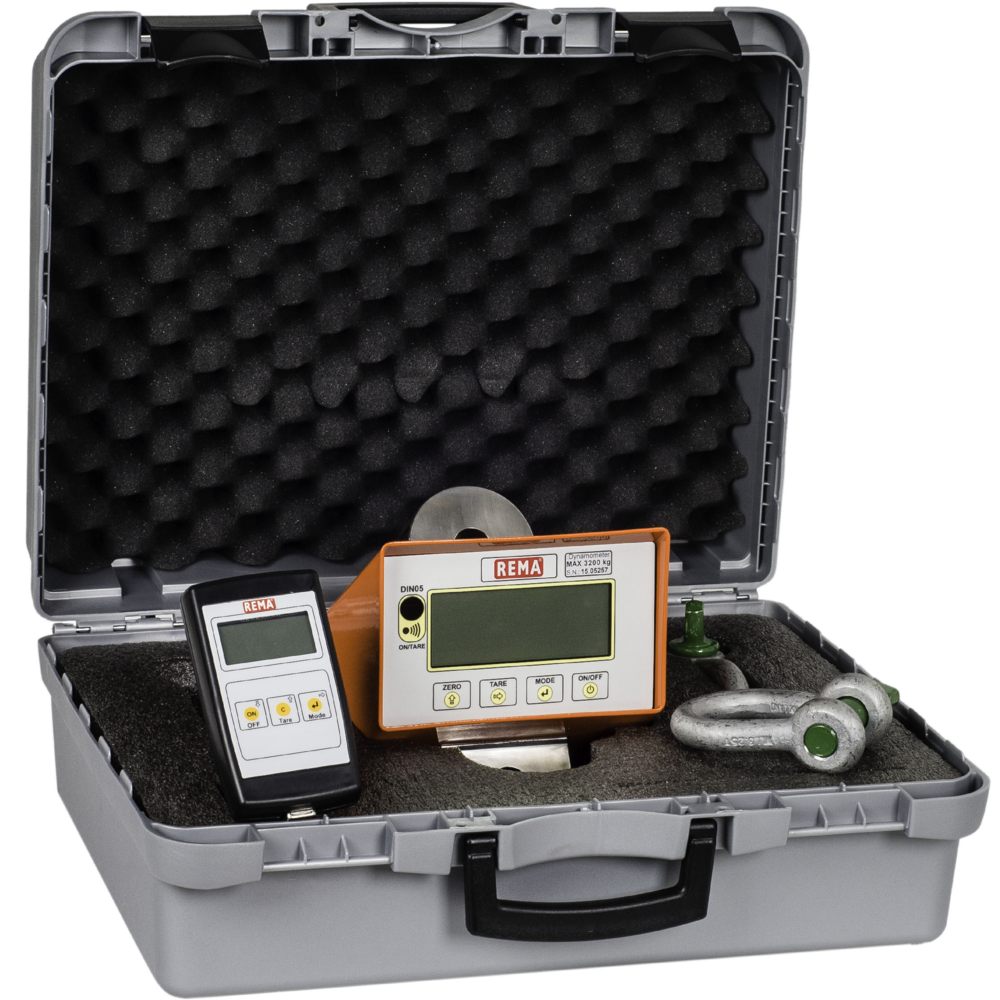

- Note: Includes plastic case, manual and calibration report.
- Safety factor: 5
