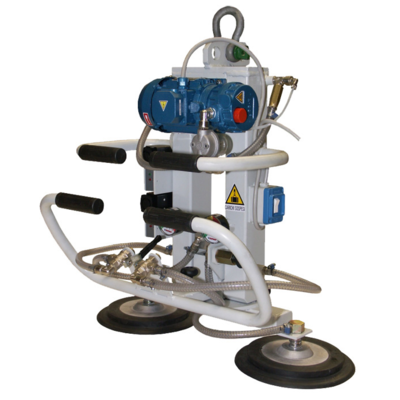

GP electric vacuum lifters are specifically designed for horizontal transferring of glass plates. GP…RB are also for manual rotation or swivel.

Properties

  • Elephant GP types driven by an electric vacuum pump

Safety

  • Vacuum reserve buffer prevents dropping.
  • Acoustic signal in case of loss of pressure.
  • Safety handle for an adequate clearance.
  • Manometer, vacuum control.
  • Acoustic signal includes rechargeable batteries and battery charger.

Advantages

  • Ergonomic handling by one person.
  • Almost maintenance-free.

Option

  • GP types are also available with electric rotation and tilting.
  • GP types are also available in 230 VAC and 24 VDC versions.

IMPORTANT

  • Allways mention right dimensions of the load L x W x H.
  • Marking: According to standard, CE-marked
  • Standard: EN 13155, EN 12100
    Select a row from the table below, then click the add to quote button
    Part Code Code WLL Model Suction pads quantity / Size
    mm
    Construction height
    mm
    L x B
    mm
    Weight
    3661001 8717365022234 0,2 GP-2RB 2 x 300 510 300 x 750 55
    3661003 8717365022241 0,4 GP-4RB 4 x 300 510 658 x 867 55
    3661005 8717365022258 0,6 GP-6RB 6 x 300 750 756 x 1100 70
    3661007 8717365022265 0,8 GP-8RB 8 x 300 750 756 x 1340 83
