Properties

  • Double axle design.
  • 1 or 2 travel speeds.
  • Wheel rupture supports and anti-surge devices.
  • Supporting rollers not included.
  • Assembly and suspension plates not included.

Technical properties

  • Operating voltage: 400V
  • Protection class: IP55
  • isolation class: F
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 13157, EN 1492-2
  • Note: Allways mention the right flange width in mm.
    Select a row from the table below, then click the add to quote button

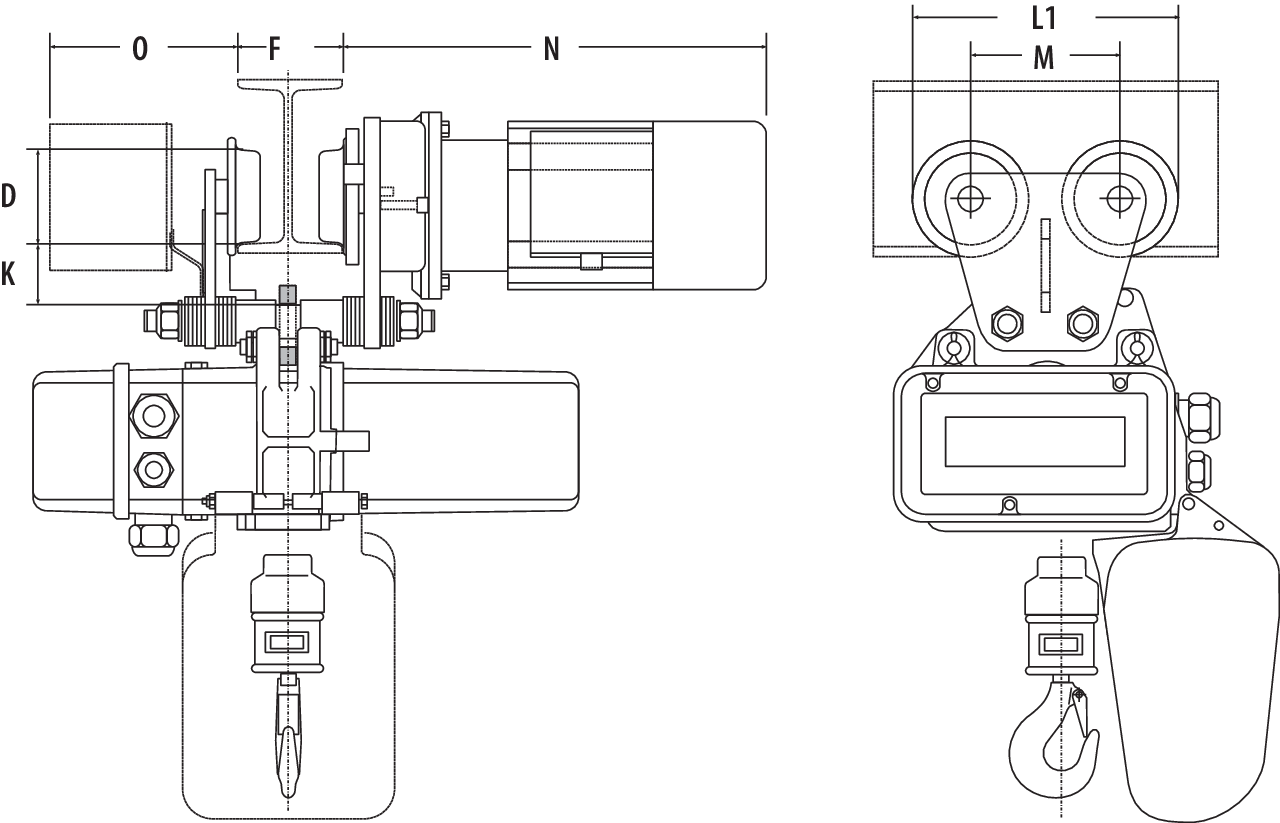

    Part Code Code WLL
    ton
    Beam width
    mm
    Model Motor
    kW
    Min. curve radius
    mm
    Trolley speed
    m/min
    D
    mm
    F
    mm
    K
    mm
    L1
    mm
    M
    mm
    N
    mm
    O
    mm
    Weight
    kg
    0817001 8717365002274 0,5 300 EFS500-16 0,12 1 000 16 70 50-300 33 216 112 230 142 17
    0818001 8717365002304 0,5 300 EFS500-5/20 0.04/0.18 1 000 5/20 70 50-300 33 216 112 292 280 19
    0817005 8717365002298 2 300 EFS2000-16 0,12 1 500 16 70 66-300 38 216 112 220 146 17
    0818005 8717365002328 2 300 EFS2000-5/20 0.04/0.18 1 500 5/20 70 66-300 35 216 112 292 280 18
    0818007 8717365002335 3,2 300 EFS3200-5/20 0.04/0.18 1 500 5/20 103 82-300 38 293,5 152,5 385 280 34
    0818009 8717365002342 6,3 310 EFS6300-4/16 0.06/0.25 2 000 4/16 122 90-310 38 293,5 152,5 409 280 63
    0818011 8717365022579 12,5 310 EFS12500-4/16 0.12/0.55 2 500 4/16 150 140-310 38 351 191 409 280 150
