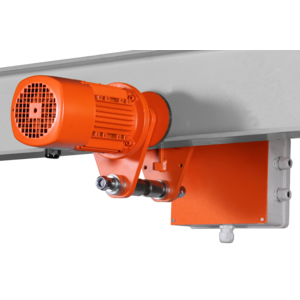

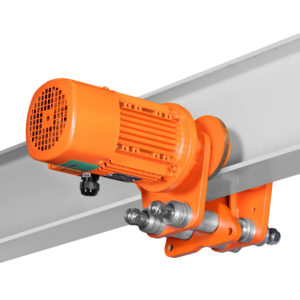

REMA MAS electric trolley

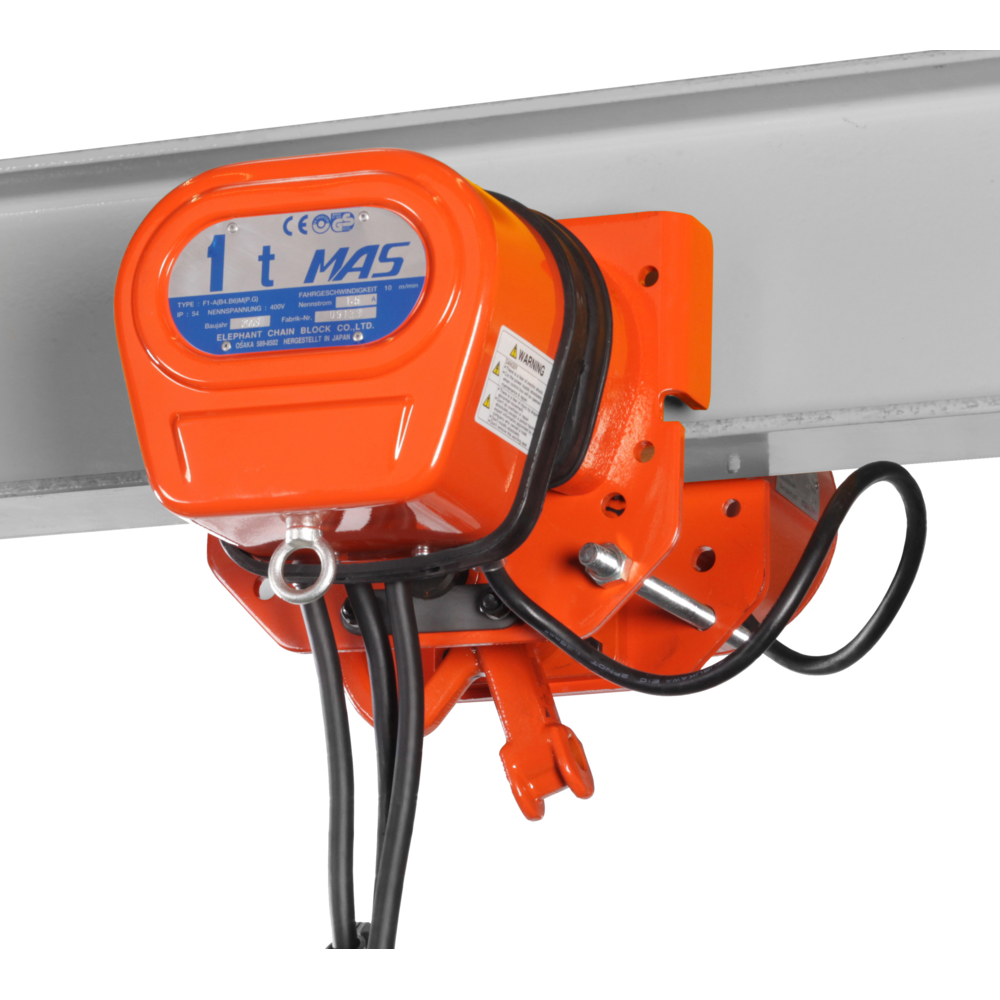

This trolley is only available in combination with an FAH / FBH electric hoist 400V.

Properties

  • Single axle design.
  • 1 driving speed.
  • Wheel rupture supports and anti-surge devices.
  • Including 24V push-button box with emergency stop.
  • Simple plug connection.

Technical properti

Show more

Product number:
REMA

This trolley is only available in combination with an FAH / FBH electric hoist 400V.

Properties

  • Single axle design.
  • 1 driving speed.
  • Wheel rupture supports and anti-surge devices.
  • Including 24V push-button box with emergency stop.
  • Simple plug connection.

Technical properties

  • Driving speed 10 m/min
  • Operating voltage: 400V
  • Control voltage: 24V
  • Protection class: IP54
  • Duty cycle 120 sw/h ED 30%
  • isolation class: E
  • Motor power 0.4 kW
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 13157
  • Warning: Always specify flange width in mm.
