EEFS 1-axle trolleys can ideally be combined with any electric chain hoist.

Properties

  • 2 speed.
  • Wheel rupture supports and anti-surge devices.
  • Push-button box not included.

Technical properties

  • Driving speed 5/20 m/min
  • Operating voltage: 400V
  • Control voltage: 24V
  • Protection class: IP54
  • Duty cycle 120 sw/h ED 40%
  • isolation class: F
  • Motor power 0.04/0.18 kW
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 13157, EN 1492-2
  • Note: Always specify flange width in mm.
    Select a row from the table below, then click the add to quote button

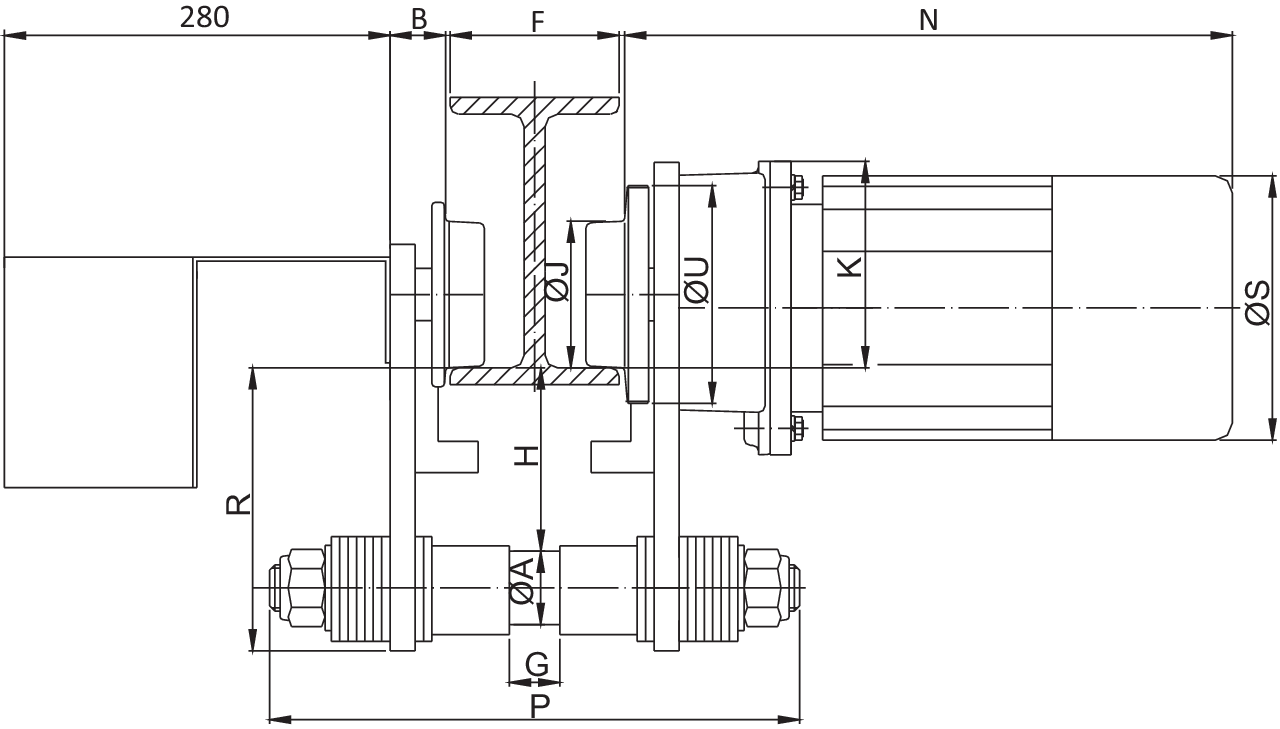

    Part Code Code WLL
    ton
    Model Min. curve radius
    mm
    A
    mm
    B
    mm
    F
    mm
    G
    mm
    H
    mm
    J
    mm
    K
    mm
    N
    mm
    R
    mm
    S
    mm
    U
    mm
    Weight
    kg
    0821001 8717365024238 1 EEFS10 1 000 28/32/35 26,5 66-300 24 71 70 122 356 109 140 104 22
    0821003 8717365024245 2 EEFS20 1 500 35/40/45 26,5 66-300 24 87,5 70 122 356 135 140 104 25
    0821005 8717365024252 3 EEFS32 2 000 45/50/55 28 82-300 32 93 103 122 356 156 140 141 40
