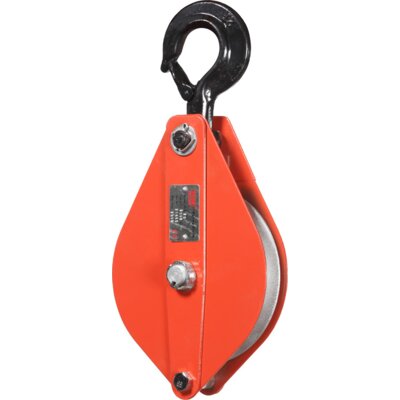

Properties

  • Equipped with swivel hook.
  • Steel housing.
  • Side opening link permits quick, easy insertion of rope or cable without threading.
  • Sheave is made of high-quality steel with a groove.
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 13157
    Select a row from the table below, then click the add to quote button

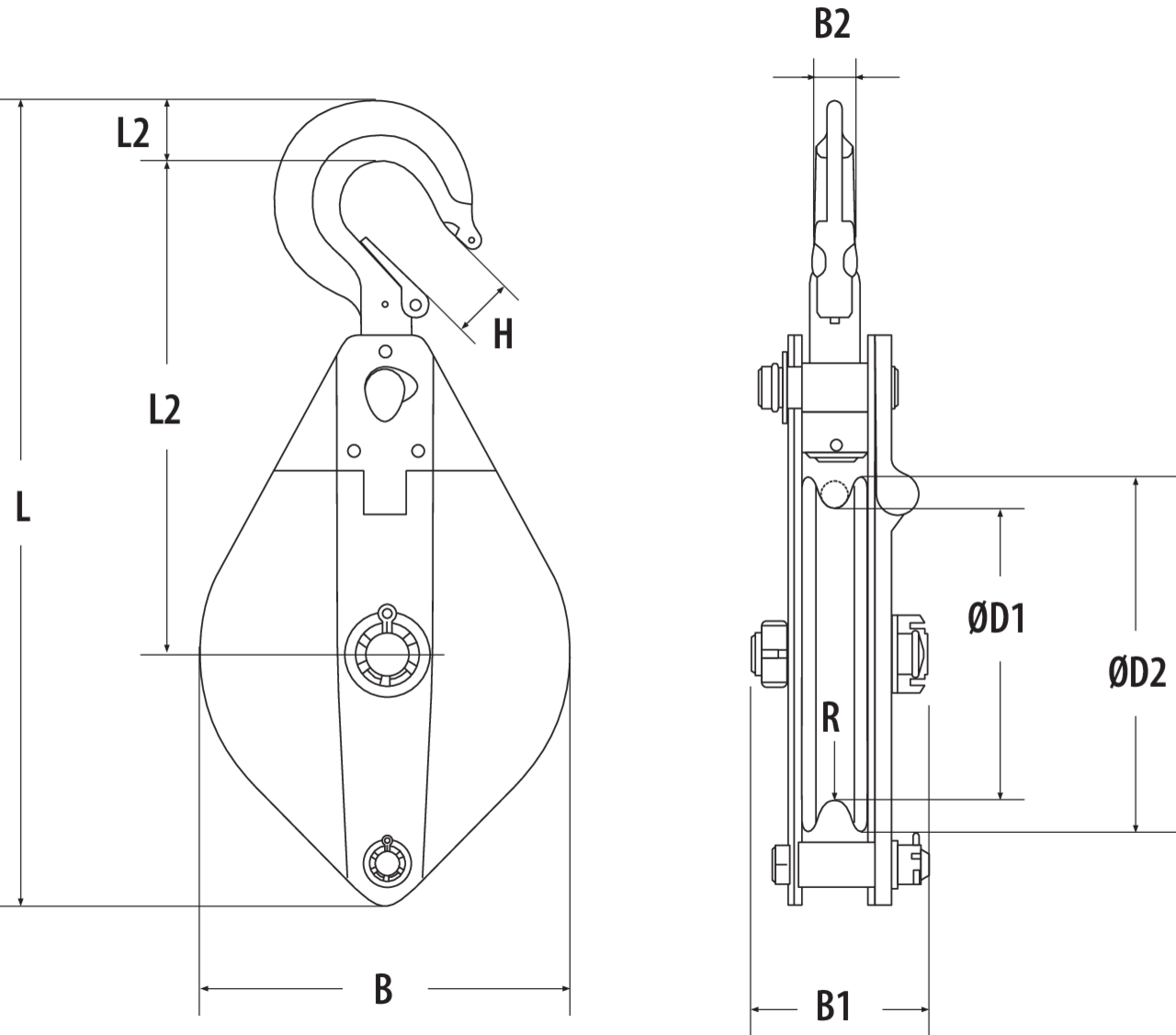

    Part Code Model Cable Diameter
    mm
    B
    mm
    B1
    mm
    B2
    mm
    D1
    mm
    D2
    mm
    H
    mm
    L
    mm
    L1
    mm
    L2
    mm
    R
    mm
    Weight
    3060001 SKW-10 7 118 76 17 85 105 23 305 200 23 4 3,3
    3060003 SKW-20 13 199 92 24 150 190 27 425 263 30 7 8,9
    3060005 SKW-32 15 230 108 28 180 220 21 496 295 40 9 15,5
    3060007 SKW-64 18 270 116 35 210 260 42 655 375 47 10 26,5
