Properties:

  • Side opening.
  • Hook suspension.

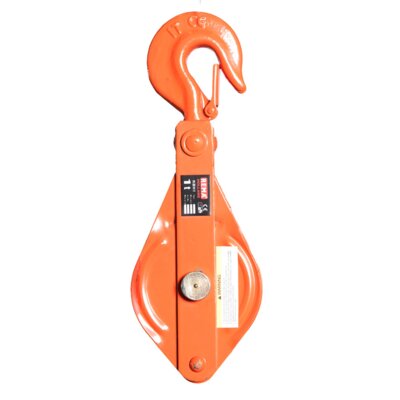

  • KBH1 = 1 Steel wire rope sheave.

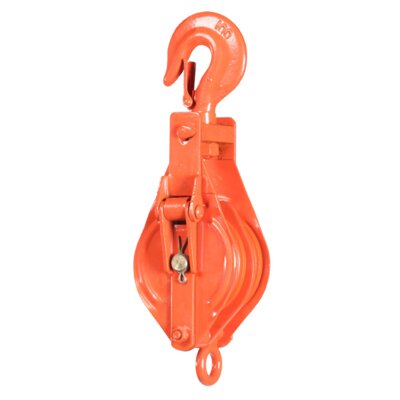

  • KBH2 = 2 Steel wire rope sheaves.
  • Marking: According to standard, CE-marked
  • Standard: EN 13157, EN 12100
    Select a row from the table below, then click the add to quote button
    Part Code WLL
    ton
    Model L x W x H
    mm
    Sheave dia.
    mm

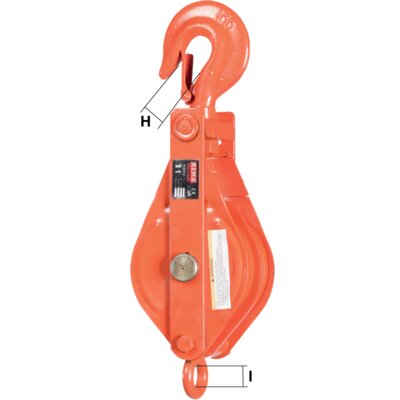

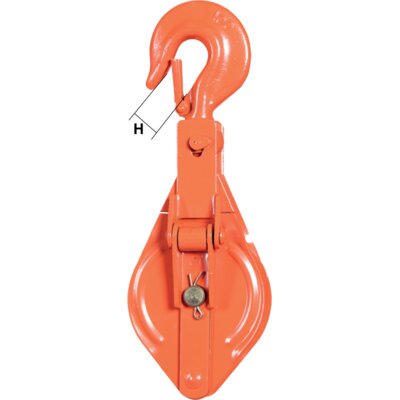

    H
    mm
    I
    mm
    Weight
    3061001 0,5 KBH1-05 268 x 87 x 50 75 17 - 1,5
    3062001 0,5 KBH2-05 268 x 87 x 77 75 17 21 2,8
    3061003 1 KBH1-10 312 x 112 x 56 100 17 - 2,6
    3062003 1 KBH2-10 312 x 112 x 88 100 17 21 4,3
    3061005 1,5 KBH1-15 370 x 140 x 64 125 22 - 4,8
    3062005 1,5 KBH2-15 370 x 140 x 100 125 22 28 7,8
    3061007 2 KBH1-20 443 x 168 x 101 150 31 - 7,4
    3062007 2 KBH2-20 443 x 168 x 146 150 31 28 12,2
