Properties

  • Suitable for hand and mechanical applications.
  • Maintenance-free design.
  • Steel.
  • Self-lubricating bearings
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 13157
    Select a row from the table below, then click the add to quote button

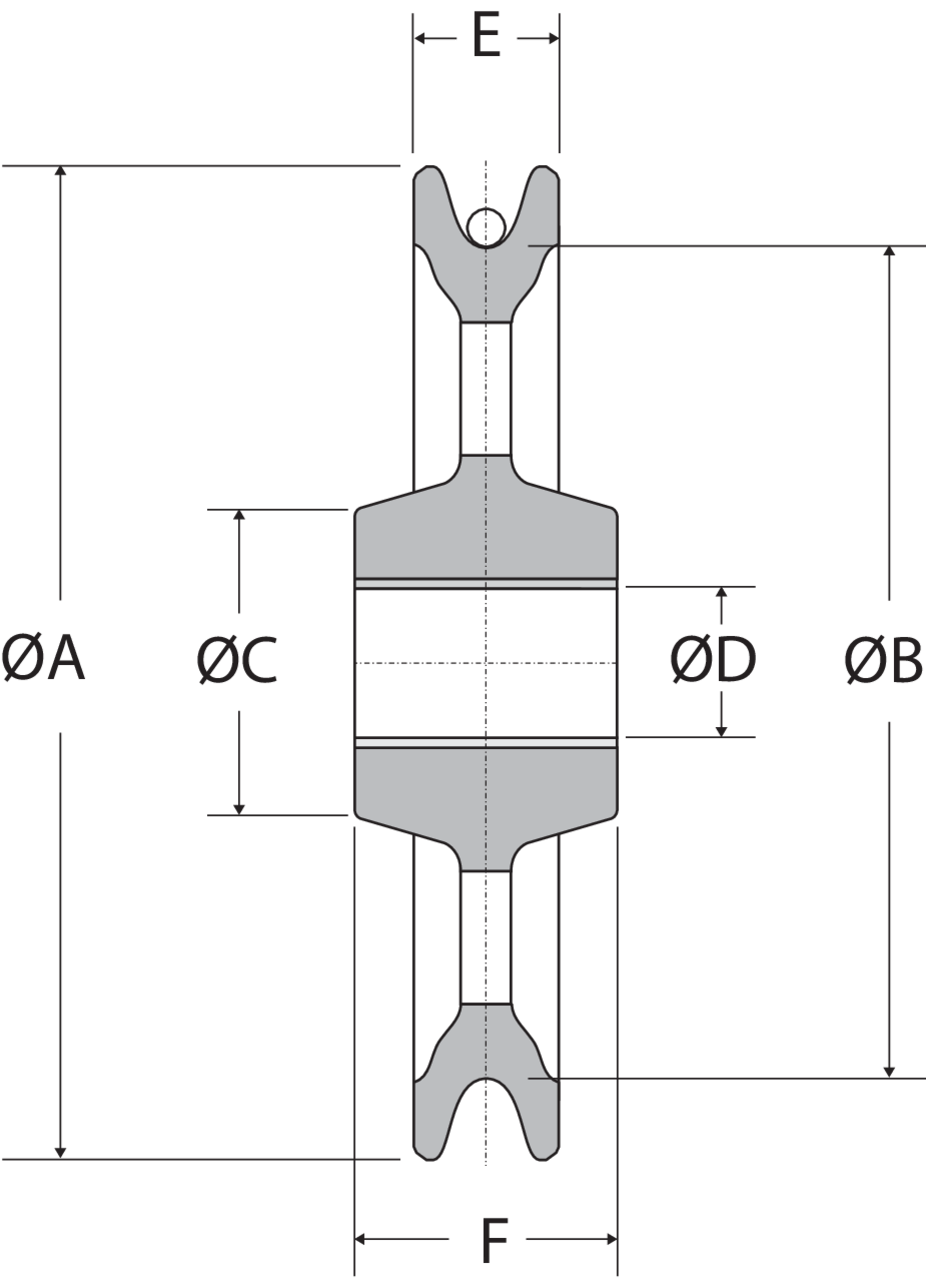

    Part Code Code Rope diameter
    mm
    WLL Model Max shaft load
    kg
    A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    F
    mm
    Weight
    3063001 8717365025570 5-6 0,25 RZ-0.5 0,5 150 125 46 22 22 40 2,3
    3063003 8717365025587 8-10 0,5 RZ-1.0 1 235 200 78 40 32 50 6
    3063005 8717365025594 12-14 1 RZ-2.0 2 325 280 108 60 41 70 16
    3063007 8717365025600 16-18 1,5 RZ-3.0 3 400 340 110 70 51 87 27
