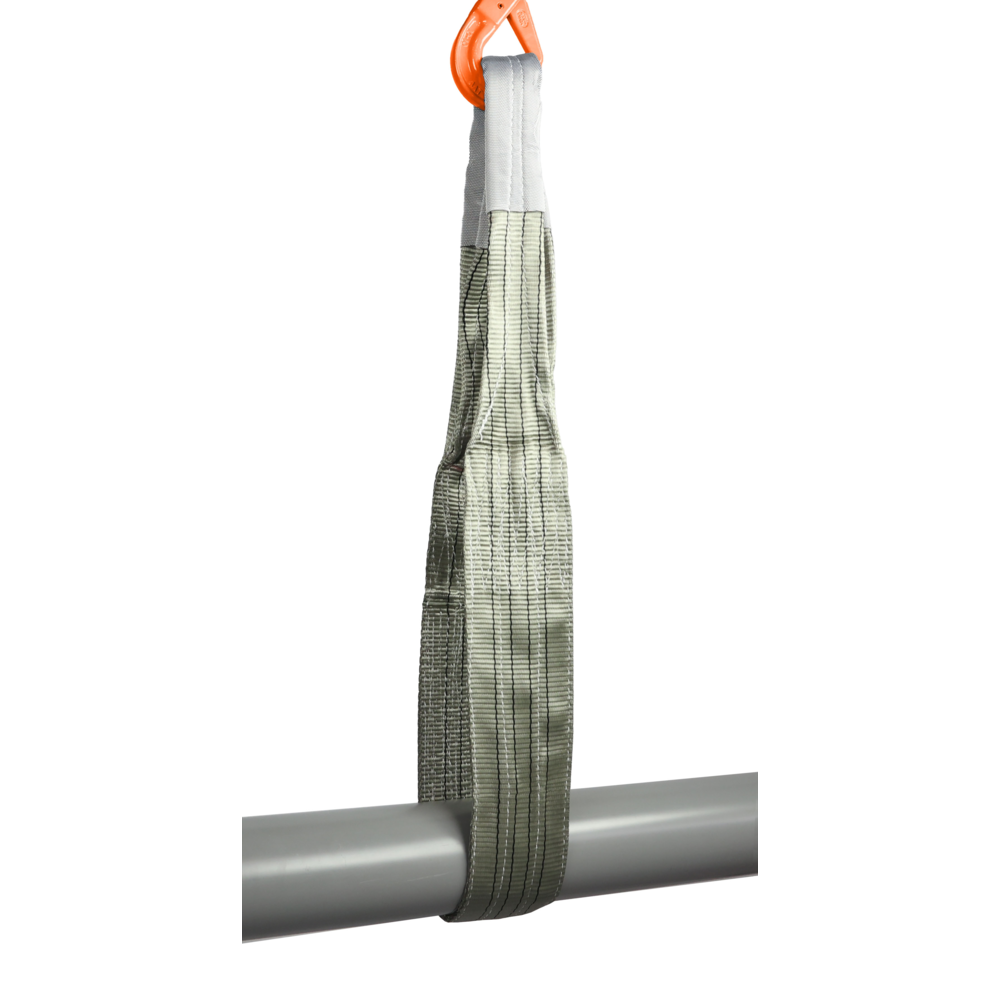

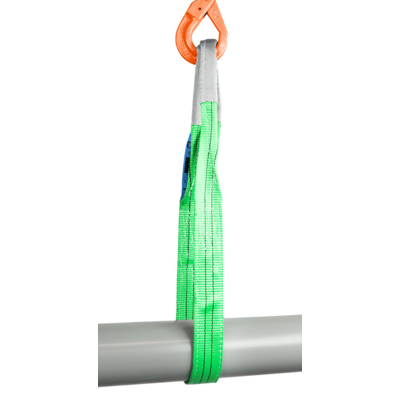

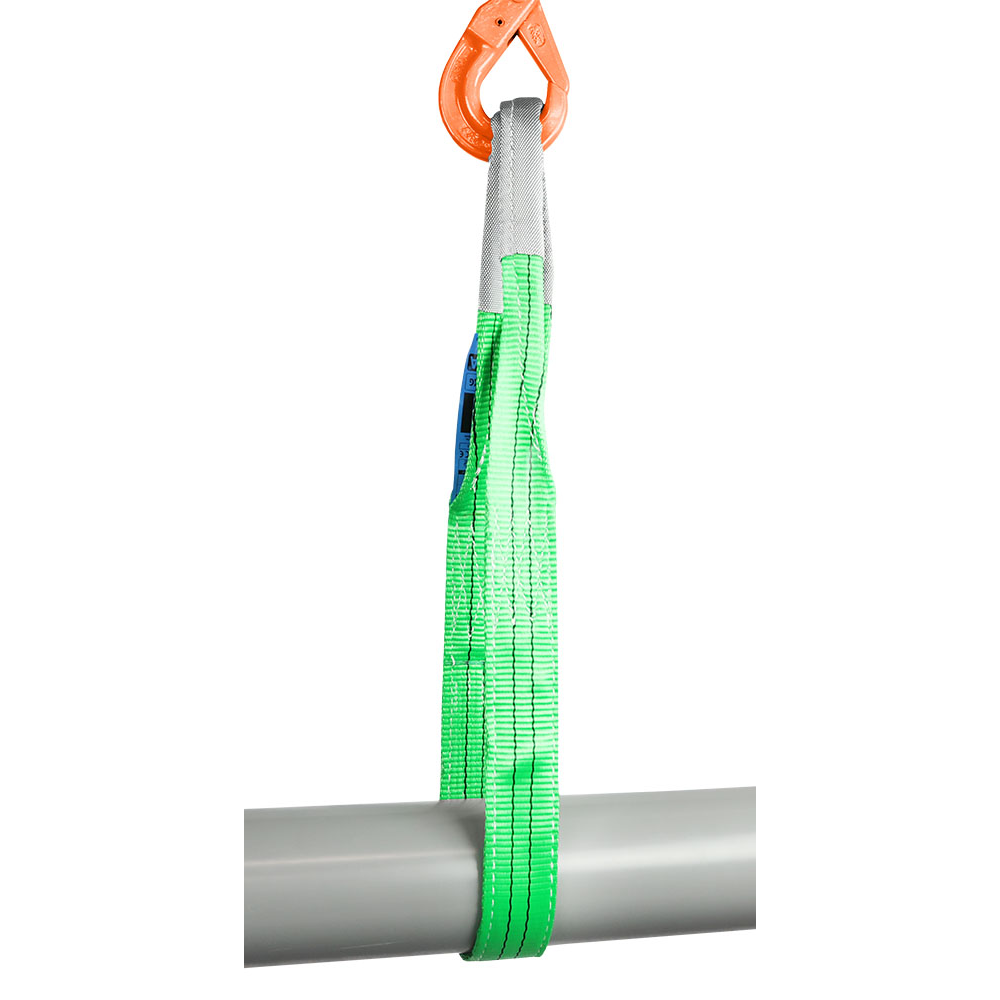

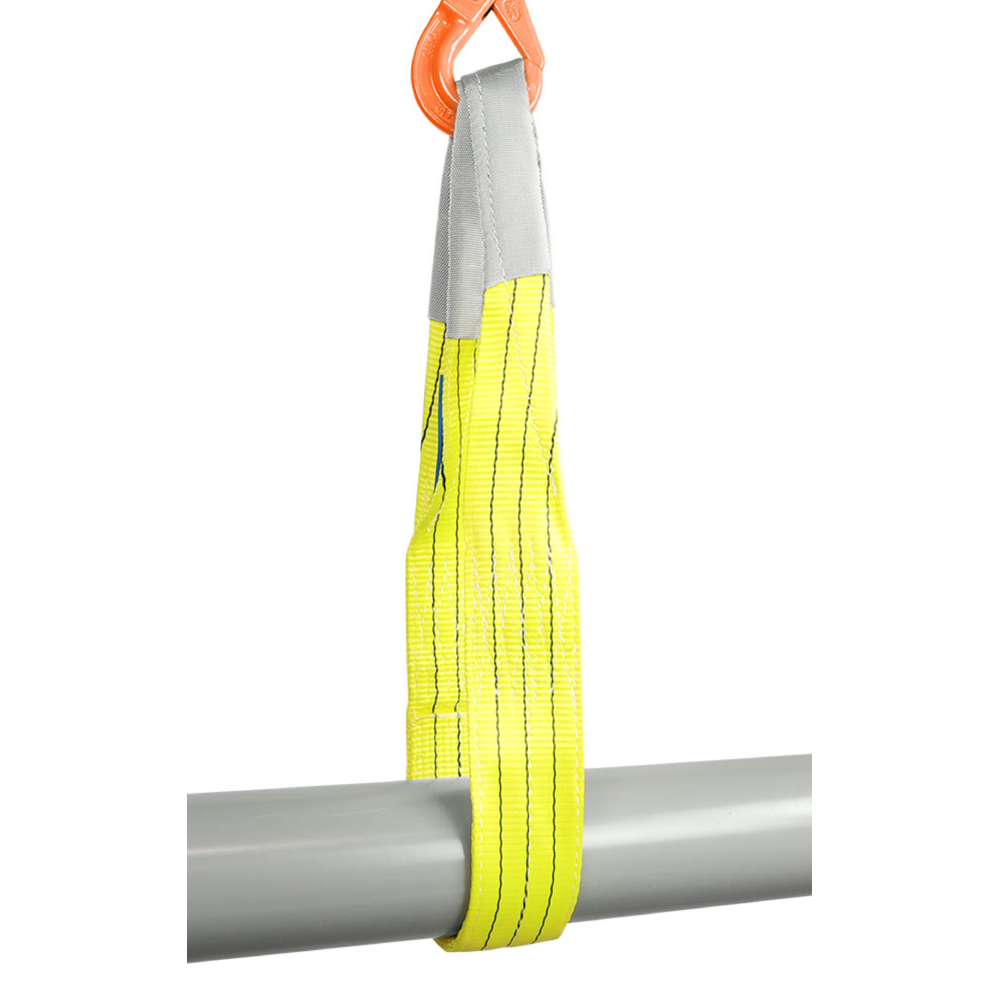

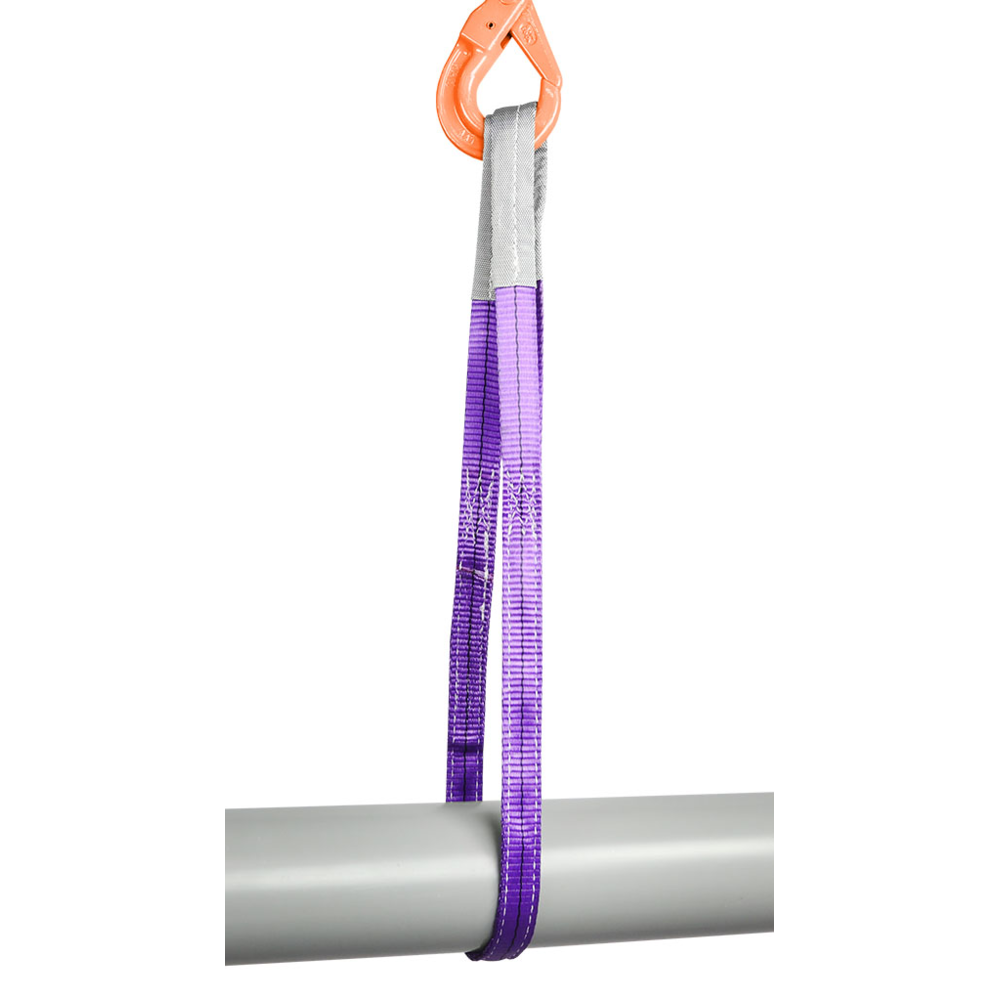

This professional webbing sling is extremely suitable for intensive industrial use.
Packaging
Packaged in semi-biodegradable plastic.
Properties
- Duplex hoisting belt; double strap layers.
- Extra strong, water- and dirt-repellent, impregnated fabric guarantees a longer life.
- WLL stripes, each stripe is 1 ton (up to 10 tons).
- Every 30 mm band width is 1 ton load capacity.
- Material: polyester
- Marking: According to standard, CE-marked
- Standard: EN 1492-1
- Note: Packed in plastic including REMA manual.
Webbing sling polyester
EN 1492-1
Safety Factor 7:1 | Straight pull | Basket hitch | Choke hitch | Basket hitch | ||
|---|---|---|---|---|---|---|
 |  |  |  | |||
| 0°−45° | 45°−60° | |||||
| Width | Working load limit (WLL) in tons | |||||
| 50 mm | 1,0 | 2,0 | 0,8 | 1,4 | 1,0 | |
| 60 mm | 2,0 | 4,0 | 1,6 | 2,8 | 2,0 | |
| 90 mm | 3,0 | 6,0 | 2,4 | 4,2 | 3,0 | |
| 120 mm | 4,0 | 8,0 | 3,2 | 5,6 | 4,0 | |
| 150 mm | 5,0 | 10,0 | 4,0 | 7,0 | 5,0 | |
| 180 mm | 6,0 | 12,0 | 4,8 | 8,4 | 6,0 | |
| 240 mm | 8,0 | 16,0 | 6,4 | 11,2 | 8,0 | |
| 300 mm | 10,0 | 20,0 | 8,0 | 14,0 | 10,0 | |
| 300 mm | 12,0 | 24,0 | 9,6 | 16,8 | 12,0 | |
| 240 mm | 15,0 | 30,0 | 12,0 | 21,0 | 15,0 | |
| 300 mm | 20,0 | 40,0 | 16,0 | 28,0 | 20,0 | |
| Factor (KL) | 1 | 2 | 0,8 | 1,4 | 1 | |
