Properties

  • Compact and almost maintenance-free.

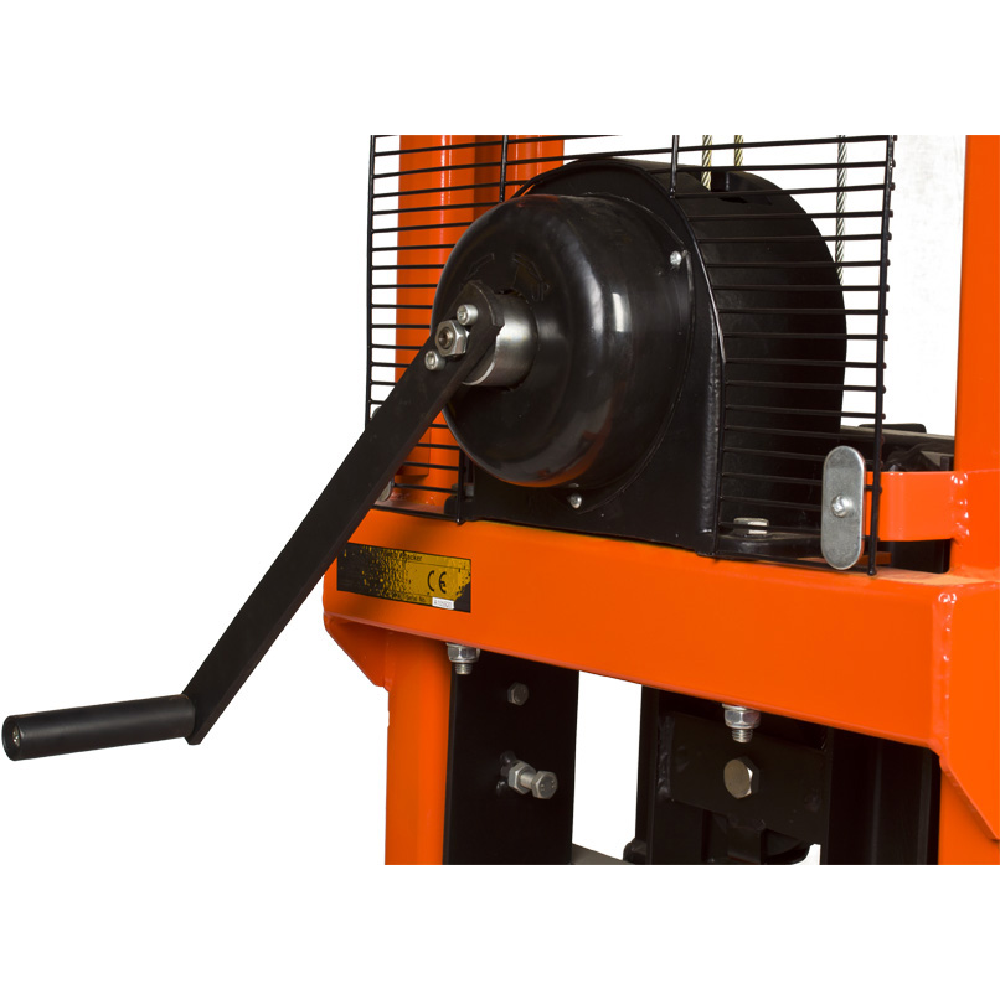

  • Winch fitted with load pressure brake.

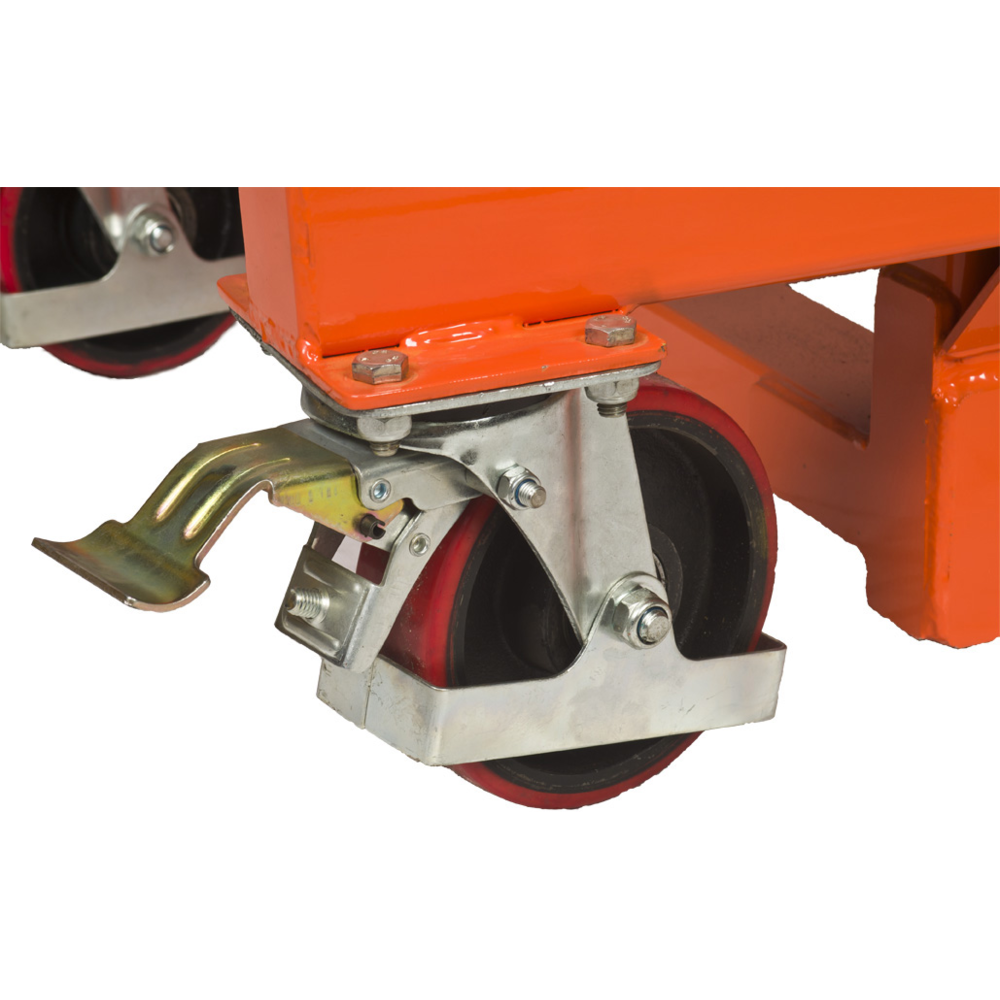

  • Brakeable steering wheels.

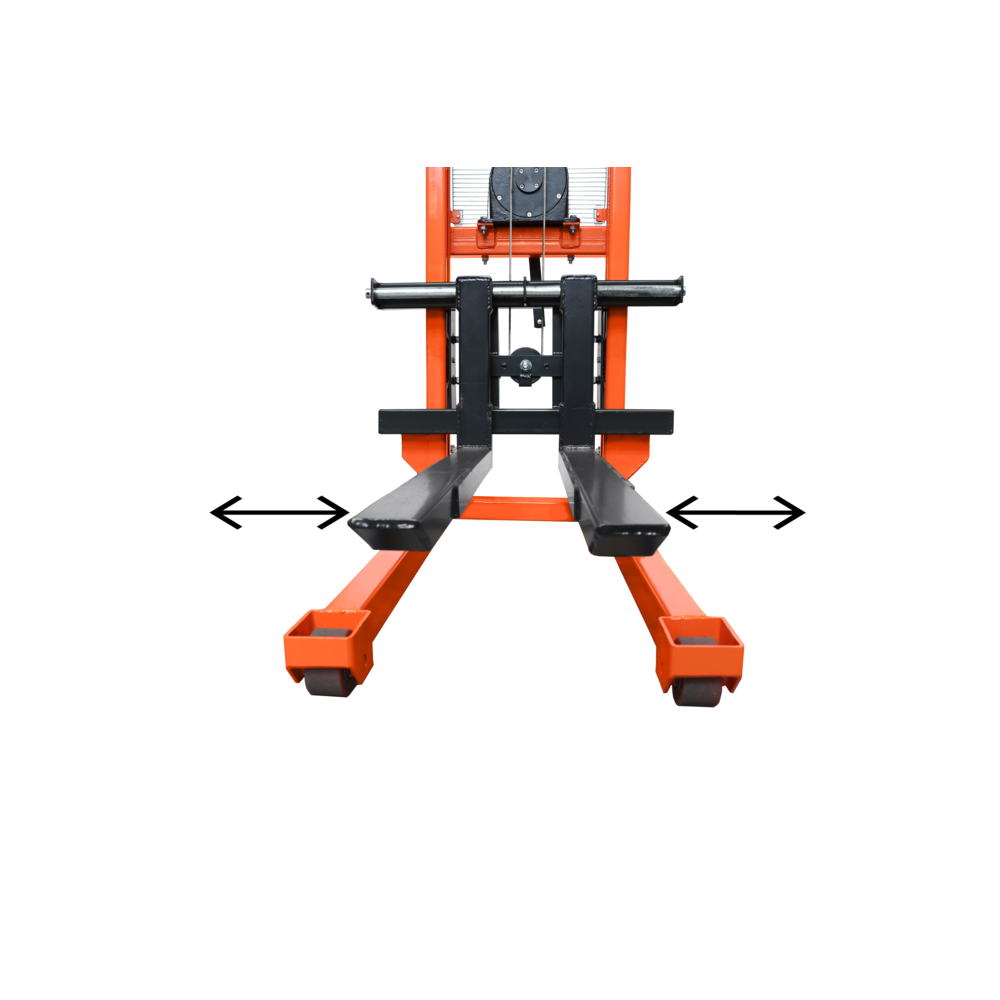

  • Model 50B : fork width, adjustable.
  • Model 100B : fork width, non-expandable.
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 3691-5
    Select a row from the table below, then click the add to quote button
    Part Code Code Model Width
    mm
    Lifting height max
    mm
    Fork dimension
    mm
    Construction height
    mm
    Material fork wheel Material steering wheel Weight
    kg
    3470101 8717365016431 SL-50B 160 - 690 90-1500 1000x160/690 2 030 polyurethane polyurethane 146
    3470103 8717365016448 SL-100B 540 90-1500 1150x540 1 930 polyurethane polyurethane 182
