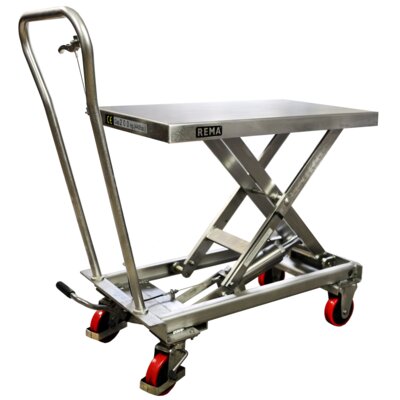

The ergonomic solution for the pharmaceutical, chemical and food industry. Manufactured from stainless steel (AISI-304), with the exception of the pump and cylinder, which are galvanized steel.

Properties

  • Hydraulic pump with overload protection.
  • Lifting by means of foot control.
  • Descend by the control lever.
  • 2 fixed wheels and 2 swivel wheels, 1 with a brake.
  • Wheels material: Polyurethane.
  • Mobile via push handle.
  • Safety factor: 4:1
  • Marking: According to standard, CE-marked
  • Standard: EN 1570, EN 12100
    Select a row from the table below, then click the add to quote button
    Part Code Code WLL
    ton
    Model Minimum height
    mm
    Lifting height max
    mm
    Wheels diameter
    mm
    Platform size
    mm

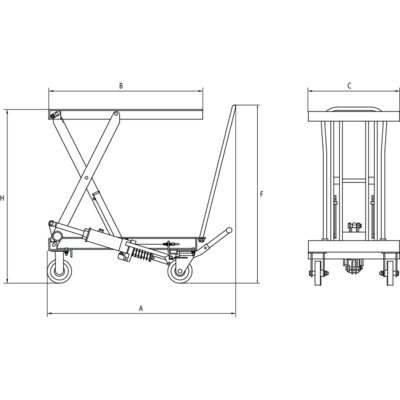

    A
    mm
    B
    mm
    C
    mm
    F
    mm
    H
    mm
    Weight
    kg
    3460201 8717365185977 0,2 HTR20 335 915 125 830 x 500 1 100 830 500 1 010 335-915 76
