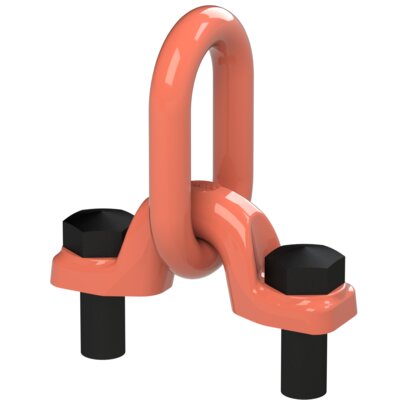

Can be loaded in a tilting device.
For bolt mounting on machine parts or truck construction, Ideal for hooking and lashing equipment.

  • Marking: According to standard, CE-marked
  • Standard: EN 1677-1
  • Note: 120° Foldable.
  • Safety factor: 4
  • Grade: 10
Select a row from the table below, then click the add to quote button
Part Code Code WLL Thread
mm
Model Eye size
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
L
mm
Weight
2676110 8717365012259 4 M20 C835-M20-4000KG 18 x 85 x 40 100 138 39 21,5 15 57 61 35 1,2
2676113 8717365262456 6,7 M24 C835-M24-6700KG 22 x 115 x 50 120 165,5 48 25,5 19 63 87 41 2,5
2676116 8717365012266 10 M30 C835-M30-10T 26 x 140 x 65 160 216 62 31,5 25 78 106 45 7,1
2676119 8717365012273 16 M36 C835-M36-16T 32 x 150 x 70 177 250 69 37 29 90 112 61 7,5
