• Features: Tighten hand-tight in load direction.
  • Marking: According to standard, CE-marked
  • Standard: EN 1677-1
  • Note: Rotatable through 360°
  • Warning: Not rotatable under load.
  • Safety factor: 4
  • Grade: 10
Select a row from the table below, then click the add to quote button

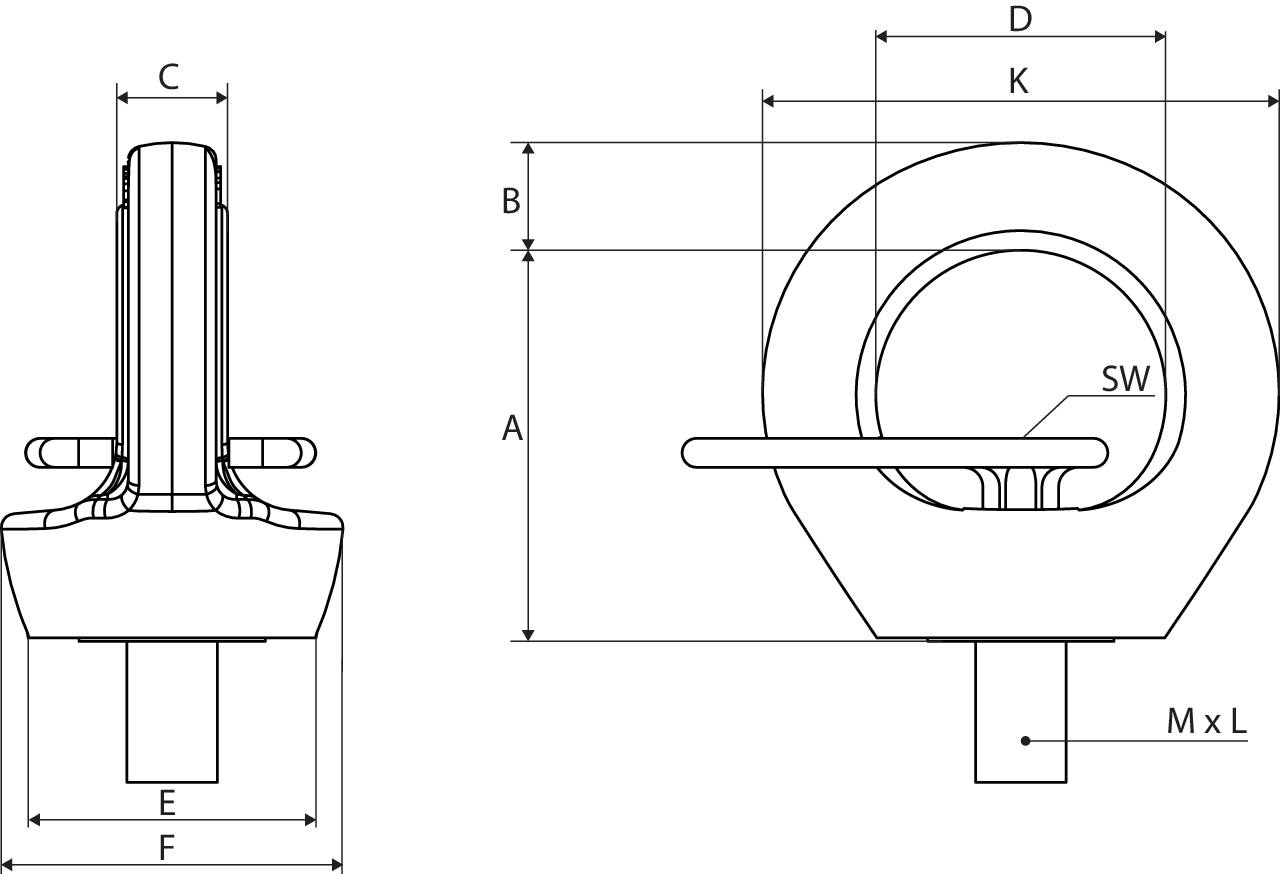

Part Code Code WLL Thread
mm
Model A
mm
B
mm
C
mm
D
mm
E
mm
K
mm
M x L
mm
SWI
mm
Weight
2611408 8717365116018 0,3 M8 C807X+KEY-M8x12-0.3T 44,5 8 10 29 32 45 M8 x 12 6 0,12
2611410 8717365116025 0,4 M10 C807X+kEY-M10x15-0.4T 44,5 8 10 29 32 45 M10 x 16 6 0,12
2611412 8717365116032 0,75 M12 C807X+KEY-M12x23-0.75T 53,5 11 11 34 44 56 M12 x 18 7 0,2
2611416 8717365116049 1,5 M16 C807X+KEY-M16x24-1.5T 56,5 13 14,5 39 56 65 M16 x 24 8 0,35
2611420 8717365116056 2,3 M20 C807X+KEY-M20x30-2.3T 67 14 17 42 58 70 M20 x 30 10 6
2611424 8717365116063 3,2 M24 C807X+KEY-M24x36-3.2T 80 18 19 52 73 88 M24 x 36 12 1
2611430 8717365116070 4,5 M30 C807X+KEY-M30x45-4.5T 101 22 27 62 80 106 M30 x 43 17 2
2611436 8717365116087 7 M36 C807X+KEY-M36x54-7.0T 125 37 38 80 95 154 M36 x 54 22 2
2611442 8717365116094 9 M42 C807X+KEY-M42x63-9.0T 148 40 41 90 105 170 M42 x 64 24 5,7
2611448 8717365116100 12 M48 C807X+KEY-M48x72-12T 165 45 47 95 120 185 M48 x 72 27 8,5
