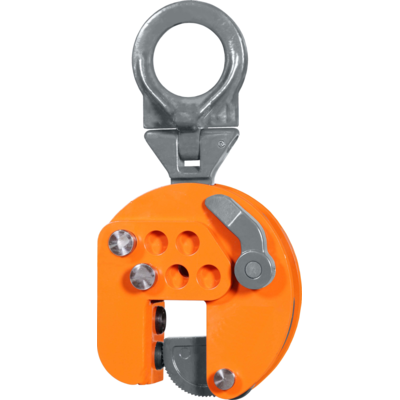

For hoisting and transporting plates and constructions from any position.

Properties

  • When 1 Clamp with a varying jaw opening is required.
  • Adaptable in steps of 30 mm.
  • Strong and lightweight construction.
  • Marking: According to standard, CE-marked
  • Standard: EN 12100, EN 13155
  • Note: Minimum weight to be lifted is 10% of the safe workload.
  • Safety factor: 5
Select a row from the table below, then click the add to quote button
Part Code Code WLL Model Jaw opening
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
Weight
3313020 8717365259104 3 CSEU-3 0-95 182-245 55 80 70 16 370 73 11
