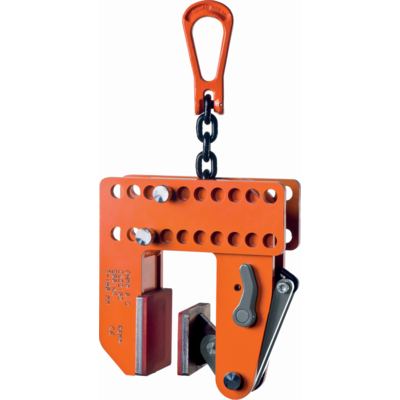

The CNMA clamp is equipped with 2 clamping jaws that are provided with special synthetic plastic. After hoisting, the clamp leaves no damage. The clamp is locked in the closed and open position.

Properties

  • Only available in 500 KG version.
  • Equipped with synthetic plastic jaws.
  • Jaw opening adjustable in steps of 20 mm from 3 to 180 mm.

Application

  • For hoisting and transporting of stainless steel, aluminum, wood and natural stone where the workpiece can not be damaged.
  • Marking: According to standard, CE-marked
  • Standard: EN 13155, EN 12100
    Select a row from the table below, then click the add to quote button

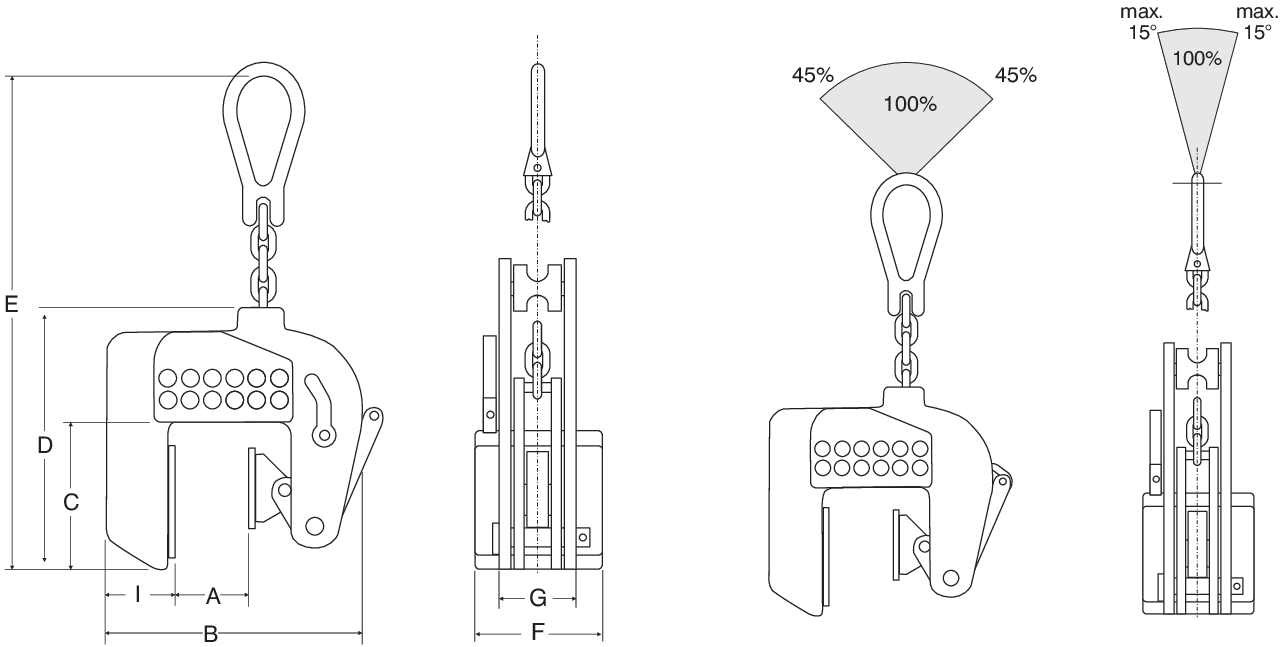

    Part Code Code WLL Jaw width
    mm
    Model A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    F
    mm
    G
    mm
    I
    mm
    Weight
    kg
    3315006 8717365259098 0,5 1-180 CNMA-05 1-180 220-340 143 223 360 80 66 61 10
