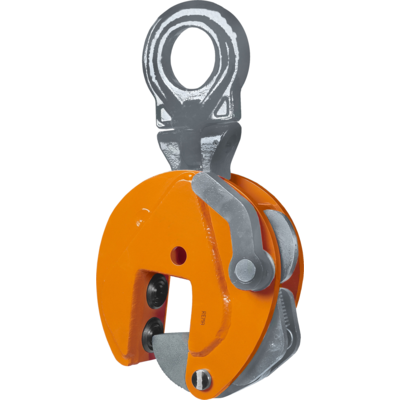

Specifically developed for lifting and transportation HP profiles and ship constructions using HP profiles. Fitted with 2 cams and universal lifting eyes.

Application

  • For vertical lifting, handling and transporting of Holland Profile (HP) shipbuilding structures from all positions
  • Jaw openings available from: 0 to 45 mm
  • Higher WLL available upon request.
  • Lifting of longer sections should be performed with a spreader beam fitted with multiple clamps.
  • Marking: According to standard, CE-marked
  • Standard: EN 13155, EN 12100
  • Warning: Min . WLL is 10% of max . WLL.
  • Safety factor: 5
Select a row from the table below, then click the add to quote button

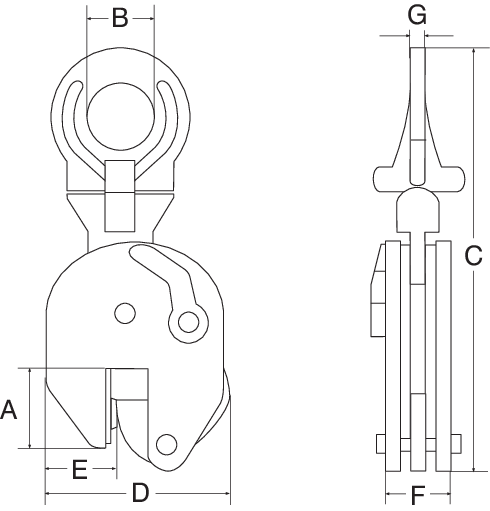

Part Code Code WLL Model Jaw opening
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
Weight
3310001 8717365015083 3 CBU-3.0 0-35 90 70 370 185 55 54 8
3310003 8717365015090 5 CBU-5.0 0-45 110 70 435 225 60 86 17,3
