• Not for lifting

The REMA YAS lever hoist is an extremely robust lever hoist for pulling in all directions. With one simple action the lever hoist can be set in its freewheel.
Fitted with shipyard hooks.

Properties

  • Grade 8 Galvanized load chain with high tensile strength.
  • Compact construction and very low self-weight.
  • Reliable self-locked brake which will retain the load at every required height.
  • Hooks provided without safety latches.
  • In case of overload, the hooks will gradually bend and do not suddenly break off.
  • Patented guide for the load chain.
  • A double spring on each catch for additional safety.
  • Equipped with shipyard hooks, only suitable for pulling.
  • Can be used to pull steel sections together.

Standard delivery

  • 1.5 m working length (maximum distance between top and bottom hook).

Option

  • Longer chain length are available.
  • Marking: According to standard, CE-marked
  • Standard: EN 818-7
Select a row from the table below, then click the add to quote button

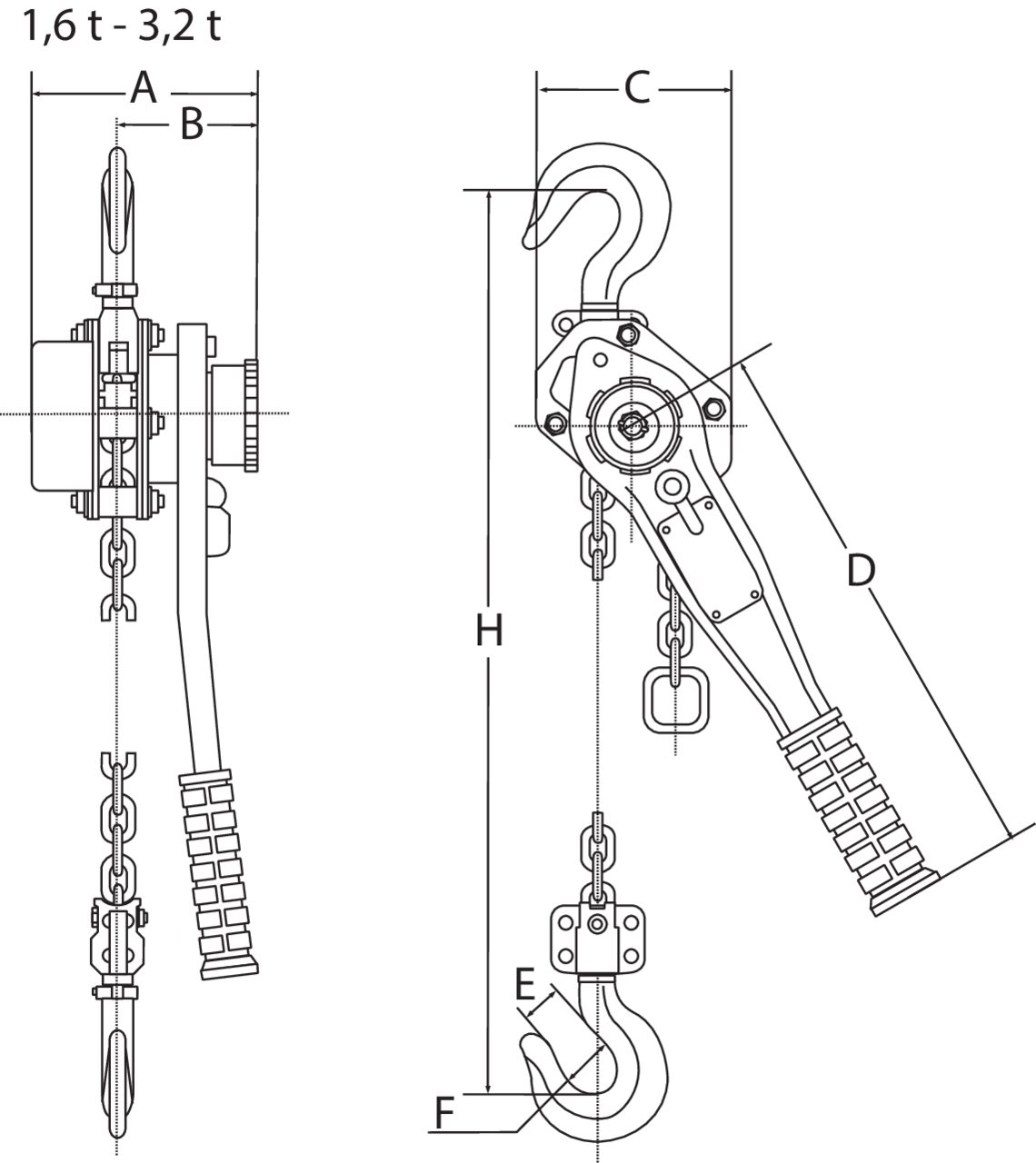

Part Code Code WLL
kg
Model Load Chain dia x pitch
mm
Maximum hand force
on crank kg
Chain falls Construction height
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
H
mm
Weight
kg
0208006 8717365104534 1 600 YAS-1600KG-SW 7,1 x 21 30 1 352 162 99 136 310 34 45 352 9,2
0208008 8717365104527 3 200 YAS-3200KG-SW 9,0 x 27,2 37 1 420 186,5 104 180 310 47 57 420 15,5
