The YA lever hoist is an extremely robust lever hoist for hoisting, pulling, tensioning and lashing in all directions. With one simple action the lever hoist can be set in its freewheel.

Properties

  • Very low self weight, compact dimensions.
  • The rotatable top and bottom hook are provided with safety latches.
  • In case of overload, the hooks will gradually bend and do not suddenly break off.
  • Self locked brake that holds the load at any desired height.
  • Freewheel is possible in unloaded condition.
  • Freewheel by one simple action.
  • The hoist is fitted with a rubber anti-slip handle.
  • Galvanized load chain (Grade 10).

Standard delivery

  • 1,5 m lifting height (max distance between top and bottom hookpositions).

Option

  • Available in other lifting heights.
  • Marking: According to standard, CE-marked
  • Standard: EN 818-7, EN 13157
    Select a row from the table below, then click the add to quote button
    Part Code Code WLL
    kg
    Lifting height
    m
    Model Load Chain dia x pitch
    mm
    Max. hand force
    on crank kg

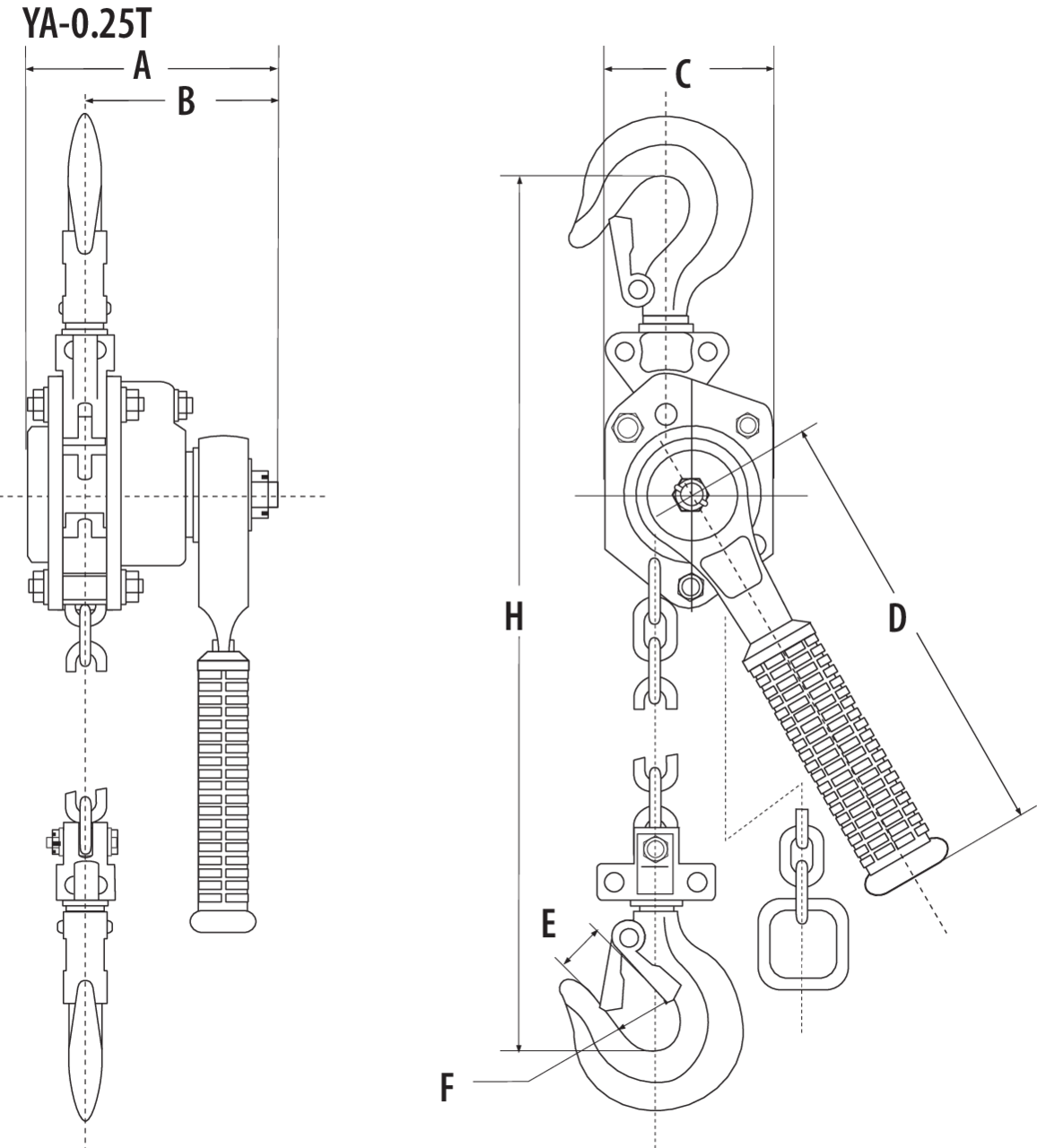

    Chain falls Construction height
    mm
    A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    F
    mm
    H
    mm
    Weight
    kg
    0208000-1.5M 8717365259999 250 1,5 YA-250KG-1.5M 4.0 x 12 30 1 235 91 70 60 155 23 31 235 2,3
    0208000-3M 8717365264979 250 3 YA-250KG-3M 4.0 x 12 30 1 235 91 70 60 155 23 31 235 2,5
    0208000-4.5 8717365264610 250 4,5 YA-250KG-4,5M 4.0 x 12 30 1 235 91 70 60 155 23 31 235 2,8
    0208000-6 8717365264627 250 6 YA-250KG-6M 4.0 x 12 30 1 235 91 70 60 155 23 31 235 3
