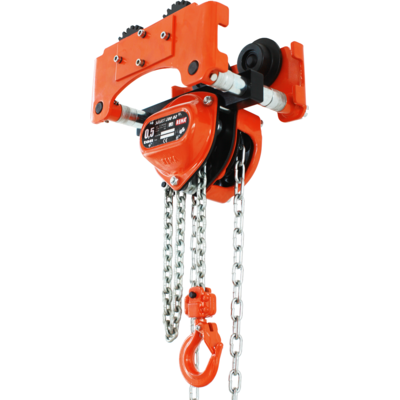

These low headroom hoist-trolley combinations are only supplied with REMA Select 200OD hand chain hoist.


Properties

  • Low headroom.
  • Push trolley.
  • Technical detail hand chain hoist, see Select 200OD.
  • Wheel fracture support devices for additional safety.
  • Adjustable to allow attachment to different beam sizes..

Standard delivery

  • Included trolley.
  • 3 meters lifting height (max. between top and bottom hook).
  • 2.5 m operating height.

Option

  • Available in other lifting and operating height on request.
  • Marking: According to standard, CE-marked
  • Standard: EN 13157, EN 818-7
Select a row from the table below, then click the add to quote button
Part Code Code WLL
kg
Model Wheels diameter
mm
Flange width
mm
Load Chain dia x pitch
mm
Hand Chain dia x pitch
mm
Chain falls Min. curve radius
mm

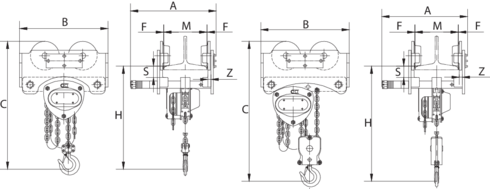

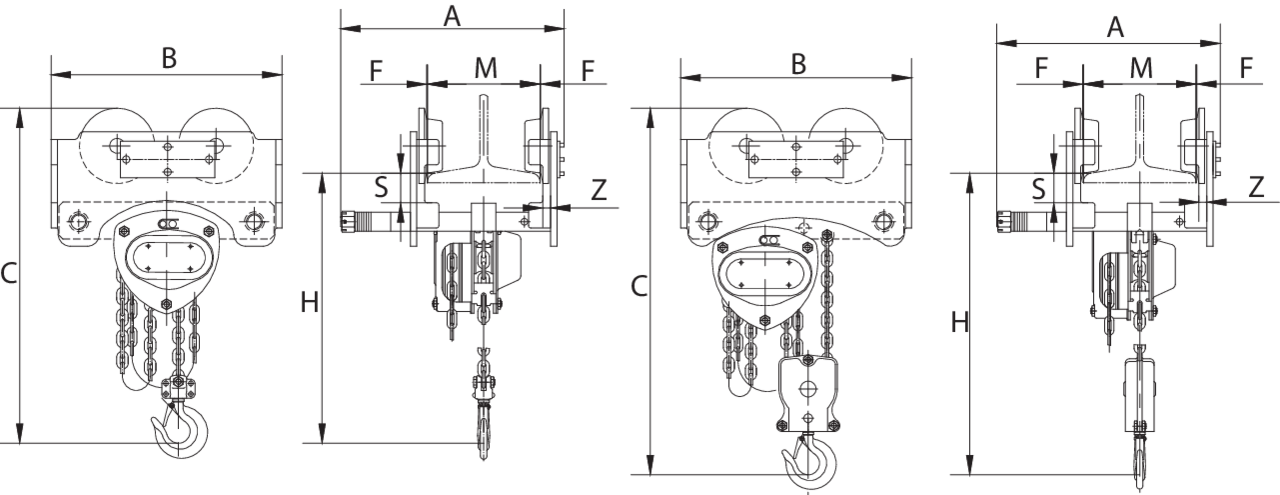

A
mm
B
mm
Cmin
(mm)
F
mm
Hmin
mm
M
mm
S
mm
Z
mm
Weight
kg
0930001 8717365115318 0,5 S20P/200OD-0.5 55 50-203 5.0 x 15 5.0 x 23.7 1 800 265 258 310,5 1.5-3 243,5 50-203 30 9 18
0930003 8717365115325 1 S20P/200OD-1.0 68 64-305 6.3 x 19.1 5.0 x 23.7 1 900 385 292 420 1.5-3 340 64-305 37 8 26
0930005 8717365115332 1,5 S20P/200OD-1.5 80 74-305 7.1 x 21 5.0 x 23.7 1 1 000 396 360 460 1.5-3 380 74-305 39 10 38
0930007 8717365115349 2 S20P/200OD-2.0 80 88-305 8.0 x 24 5.0 x 23.7 1 1 000 396 360 500 1.5-3 405 88-305 38 10 48
0930009 8717365115356 3 S20P/200OD-3.0 100 100-305 7.1 x 21 5.0 x 23.7 2 1 200 407 430 590 1.5-3 475 100-305 42 12 66
0930011 8717365115363 5 S20P/200OD-5.0 110 114-305 9.0 x 27 5.0 x 23.7 2 1 300 420 420 725 1.5-3 610 114-305 41,5 16 91
