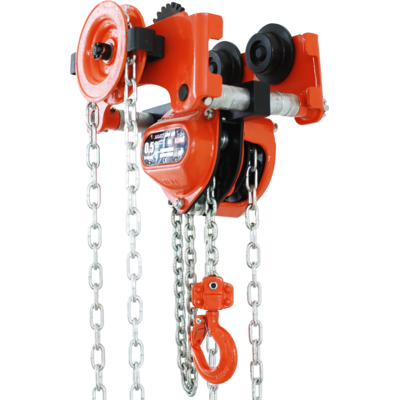

These low headroom hoist-trolley combinations are only supplied with REMA Select 200OD hand chain hoist.


Properties

  • Low headroom.
  • Operating with hand chain.
  • Technical detail hand chain hoist, see Select 200OD.
  • Wheel fracture support devices for additional safety.
  • Adjustable to allow attachment to different beam sizes.

Standard delivery

  • Including hand operated trolley.
  • 3 meters lifting height (max. between top and bottom hook).
  • 2.5 m operating height.

Option

  • Available in other lifting and operating height on request.
  • Marking: According to standard, CE-marked
  • Standard: EN 13157, EN 818-7
    Select a row from the table below, then click the add to quote button

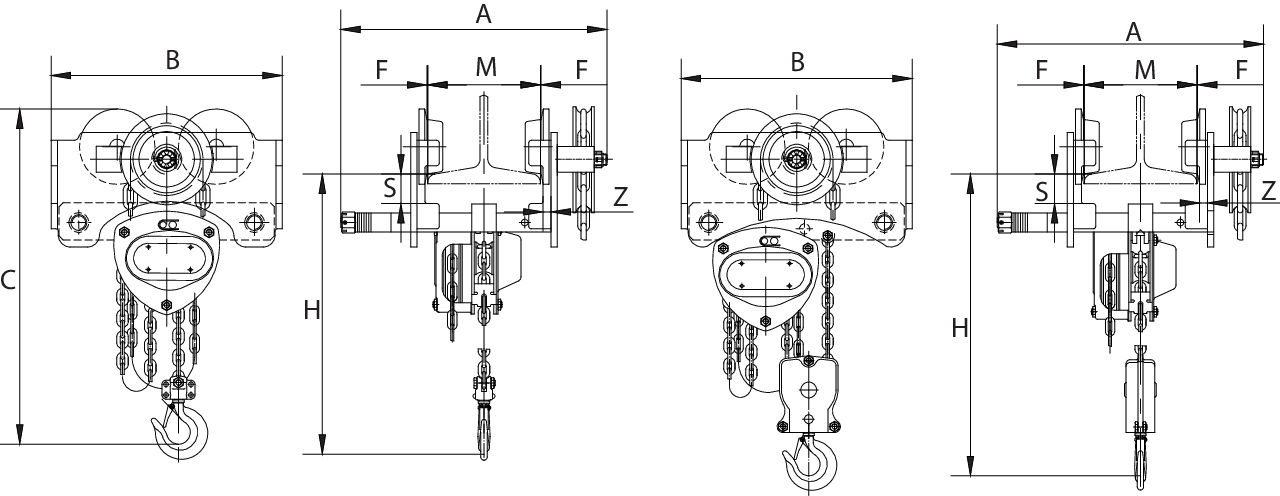

    Part Code Code WLL
    ton
    Lifting height
    m
    Beam width
    mm
    Model Wheels diameter
    mm
    Load Chain dia x pitch
    mm
    Hand Chain Ø x pitch
    mm
    Chain falls Min. curve radius
    mm
    A
    mm
    B
    mm
    Cmin
    (mm)
    F
    mm
    Hmin
    mm
    M
    mm
    S
    mm
    Z
    mm
    Weight
    kg
    0931001-3 8717365117664 0,5 3 50-203 S20G/200OD/0.5T/3M 55 5.0 x 15 5.0 x 23.7 1 800 322 258 310,5 1,5-3 243,5 50-203 30 9 22
    0931001-4 8717365117671 0,5 4 50-203 S20G/200OD/0.5T/4M 55 5.0 x 15 5.0 x 23.7 1 800 322 258 310,5 1,5-3 243,5 50-203 30 9 25
    0931001-5 8717365117688 0,5 5 50-203 S20G/200OD/0.5T/5M 55 5.0 x 15 5.0 x 23.7 1 800 322 258 310,5 1,5-3 243,5 50-203 30 9 27
    0931001-6 8717365117695 0,5 6 50-203 S20G/200OD/0.5T/6M 55 5.0 x 15 5.0 x 23.7 1 800 322 258 310,5 1,5-3 243,5 50-203 30 9 29,5
    0931001-7 8717365117701 0,5 7 50-203 S20G/200OD/0.5T/7M 55 5.0 x 15 5.0 x 23.7 1 800 322 258 310,5 1,5-3 243,5 50-203 30 9 32,5
    0931001-8 8717365117718 0,5 8 50-203 S20G/200OD/0.5T/8M 55 5.0 x 15 5.0 x 23.7 1 800 322 258 310,5 1,5-3 243,5 50-203 30 9 34,5
    0931001-9 8717365117725 0,5 9 50-203 S20G/200OD/0.5T/9M 55 5.0 x 15 5.0 x 23.7 1 800 322 258 310,5 1,5-3 243,5 50-203 30 9 37
    0931001-10 8717365117732 0,5 10 50-203 S20G/200OD/0.5T/10M 55 5.0 x 15 5.0 x 23.7 1 800 322 258 310,5 1,5-3 243,5 50-203 30 9 40
    0931003-3 8717365117749 1 3 64-305 S20G/200OD/1T/3M 68 6.3 x 19.1 5.0 x 23.7 1 900 435 292 420 1,5-3 340 64-305 37 8 32
    0931003-4 8717365117756 1 4 64-305 S20G/200OD/1T/4M 68 6.3 x 19.1 5.0 x 23.7 1 900 435 292 420 1,5-3 340 64-305 37 8 35
    0931003-5 8717365117763 1 5 64-305 S20G/200OD/1T/5M 68 6.3 x 19.1 5.0 x 23.7 1 900 435 292 420 1,5-3 340 64-305 37 8 37,5
    0931003-6 8717365117770 1 6 64-305 S20G/200OD/1T/6M 68 6.3 x 19.1 5.0 x 23.7 1 900 435 292 420 1,5-3 340 64-305 37 8 40,5
    0931003-7 8717365117787 1 7 64-305 S20G/200OD/1T/7M 68 6.3 x 19.1 5.0 x 23.7 1 900 435 292 420 1,5-3 340 64-305 37 8 43,5
    0931003-8 8717365117794 1 8 64-305 S20G/200OD/1T/8M 68 6.3 x 19.1 5.0 x 23.7 1 900 435 292 420 1,5-3 340 64-305 37 8 46
    0931003-9 8717365117800 1 9 64-305 S20G/200OD/1T/9M 68 6.3 x 19.1 5.0 x 23.7 1 900 435 292 420 1,5-3 340 64-305 37 8 49
    0931003-10 8717365117817 1 10 64-305 S20G/200OD/1T/10M 68 6.3 x 19.1 5.0 x 23.7 1 900 435 292 420 1,5-3 340 64-305 37 8 51
    0931005-3 8717365117824 1,5 3 74-305 S20G/200OD/1.5T/3M 80 7.1 x 21 5.0 x 23.7 1 1 000 433 360 460 1,5-3 380 74-305 39 10 44
    0931005-4 8717365117831 1,5 4 74-305 S20G/200OD/1.5T/4M 80 7.1 x 21 5.0 x 23.7 1 1 000 433 360 460 1,5-3 380 74-305 39 10 46,6
    0931005-5 8717365117848 1,5 5 74-305 S20G/200OD/1.5T/5M 80 7.1 x 21 5.0 x 23.7 1 1 000 433 360 460 1,5-3 380 74-305 39 10 49,5
    0931005-6 8717365117855 1,5 6 74-305 S20G/200OD/1.5T/6M 80 7.1 x 21 5.0 x 23.7 1 1 000 433 360 460 1,5-3 380 74-305 39 10 52,5
    0931005-7 8717365117862 1,5 7 74-305 S20G/200OD/1.5T/7M 80 7.1 x 21 5.0 x 23.7 1 1 000 433 360 460 1,5-3 380 74-305 39 10 55,5
    0931005-8 8717365117879 1,5 8 74-305 S20G/200OD/1.5T/8M 80 7.1 x 21 5.0 x 23.7 1 1 000 433 360 460 1,5-3 380 74-305 39 10 58,5
    0931005-9 8717365117886 1,5 9 74-305 S20G/200OD/1.5T/9M 80 7.1 x 21 5.0 x 23.7 1 1 000 433 360 460 1,5-3 380 74-305 39 10 61
    0931005-10 8717365117893 1,5 10 74-305 S20G/200OD/1.5T/10M 80 7.1 x 21 5.0 x 23.7 1 1 000 433 360 460 1,5-3 380 74-305 39 10 65,5
    0931007-3 8717365117909 2 3 88-305 S20G/200OD/2T/3M 80 8.0 x 24 5.0 x 23.7 1 1 000 446 360 500 1,5-3 405 88-305 38 10 48
    0931007-4 8717365117916 2 4 88-305 S20G/200OD/2T/4M 80 8.0 x 24 5.0 x 23.7 1 1 000 446 360 500 1,5-3 405 88-305 38 10 52
    0931007-5 8717365117923 2 5 88-305 S20G/200OD/2T/5M 80 8.0 x 24 5.0 x 23.7 1 1 000 446 360 500 1,5-3 405 88-305 38 10 54,5
    0931007-6 8717365117930 2 6 88-305 S20G/200OD/2T/6M 80 8.0 x 24 5.0 x 23.7 1 1 000 446 360 500 1,5-3 405 88-305 38 10 58,5
    0931007-7 8717365117947 2 7 88-305 S20G/200OD/2T/7M 80 8.0 x 24 5.0 x 23.7 1 1 000 446 360 500 1,5-3 405 88-305 38 10 61,5
    0931007-8 8717365117954 2 8 88-305 S20G/200OD/2T/8M 80 8.0 x 24 5.0 x 23.7 1 1 000 446 360 500 1,5-3 405 88-305 38 10 65
    0931007-9 8717365117961 2 9 88-305 S20G/200OD/2T/9M 80 8.0 x 24 5.0 x 23.7 1 1 000 446 360 500 1,5-3 405 88-305 38 10 68
    0931007-10 8717365117978 2 10 88-305 S20G/200OD/2T/10M 80 8.0 x 24 5.0 x 23.7 1 1 000 446 360 500 1,5-3 405 88-305 38 10 71
    0931009-3 8717365117985 3 3 100-305 S20G/200OD/3T/3M 100 7.1 x 21 5.0 x 23.7 2 1 200 459 430 590 1,5-3 475 100-305 42 12 70
    0931009-4 8717365117992 3 4 100-305 S20G/200OD/3T/4M 100 7.1 x 21 5.0 x 23.7 2 1 200 459 430 590 1,5-3 475 100-305 42 12 75
    0931009-5 8717365118005 3 5 100-305 S20G/200OD/3T/5M 100 7.1 x 21 5.0 x 23.7 2 1 200 459 430 590 1,5-3 475 100-305 42 12 78,5
    0931009-6 8717365118012 3 6 100-305 S20G/200OD/3T/6M 100 7.1 x 21 5.0 x 23.7 2 1 200 459 430 590 1,5-3 475 100-305 42 12 83
    0931009-7 8717365118029 3 7 100-305 S20G/200OD/3T/7M 100 7.1 x 21 5.0 x 23.7 2 1 200 459 430 590 1,5-3 475 100-305 42 12 87,5
    0931009-8 8717365118036 3 8 100-305 S20G/200OD/3T/8M 100 7.1 x 21 5.0 x 23.7 2 1 200 459 430 590 1,5-3 475 100-305 42 12 91
    0931009-9 8717365118043 3 9 100-305 S20G/200OD/3T/9M 100 7.1 x 21 5.0 x 23.7 2 1 200 459 430 590 1,5-3 475 100-305 42 12 96
    0931009-10 8717365118050 3 10 100-305 S20G/200OD/3T/10M 100 7.1 x 21 5.0 x 23.7 2 1 200 459 430 590 1,5-3 475 100-305 42 12 100
    0931011-3 8717365118067 5 3 114-305 S20G/200OD/5T/3M 110 9.0 x 27 5.0 x 23.7 2 1 300 474 447 725 1,5-3 610 114-305 41,5 16 112
    0931011-4 8717365118074 5 4 114-305 S20G/200OD/5T/4M 110 9.0 x 27 5.0 x 23.7 2 1 300 474 447 725 1,5-3 610 114-305 41,5 16 118
    0931011-5 8717365118081 5 5 114-305 S20G/200OD/5T/5M 110 9.0 x 27 5.0 x 23.7 2 1 300 474 447 725 1,5-3 610 114-305 41,5 16 124
    0931011-6 8717365118098 5 6 114-305 S20G/200OD/5T/6M 110 9.0 x 27 5.0 x 23.7 2 1 300 474 447 725 1,5-3 610 114-305 41,5 16 130
    0931011-7 8717365118104 5 7 114-305 S20G/200OD/5T/7M 110 9.0 x 27 5.0 x 23.7 2 1 300 474 447 725 1,5-3 610 114-305 41,5 16 134
    0931011-8 8717365118111 5 8 114-305 S20G/200OD/5T/8M 110 9.0 x 27 5.0 x 23.7 2 1 300 474 447 725 1,5-3 610 114-305 41,5 16 139
    0931011-9 8717365118128 5 9 114-305 S20G/200OD/5T/9M 110 9.0 x 27 5.0 x 23.7 2 1 300 474 447 725 1,5-3 610 114-305 41,5 16 145
    0931011-10 8717365118135 5 10 114-305 S20G/200OD/5T/10M 110 9.0 x 27 5.0 x 23.7 2 1 300 474 447 725 1,5-3 610 114-305 41,5 16 150
